3.

INSTALLATION

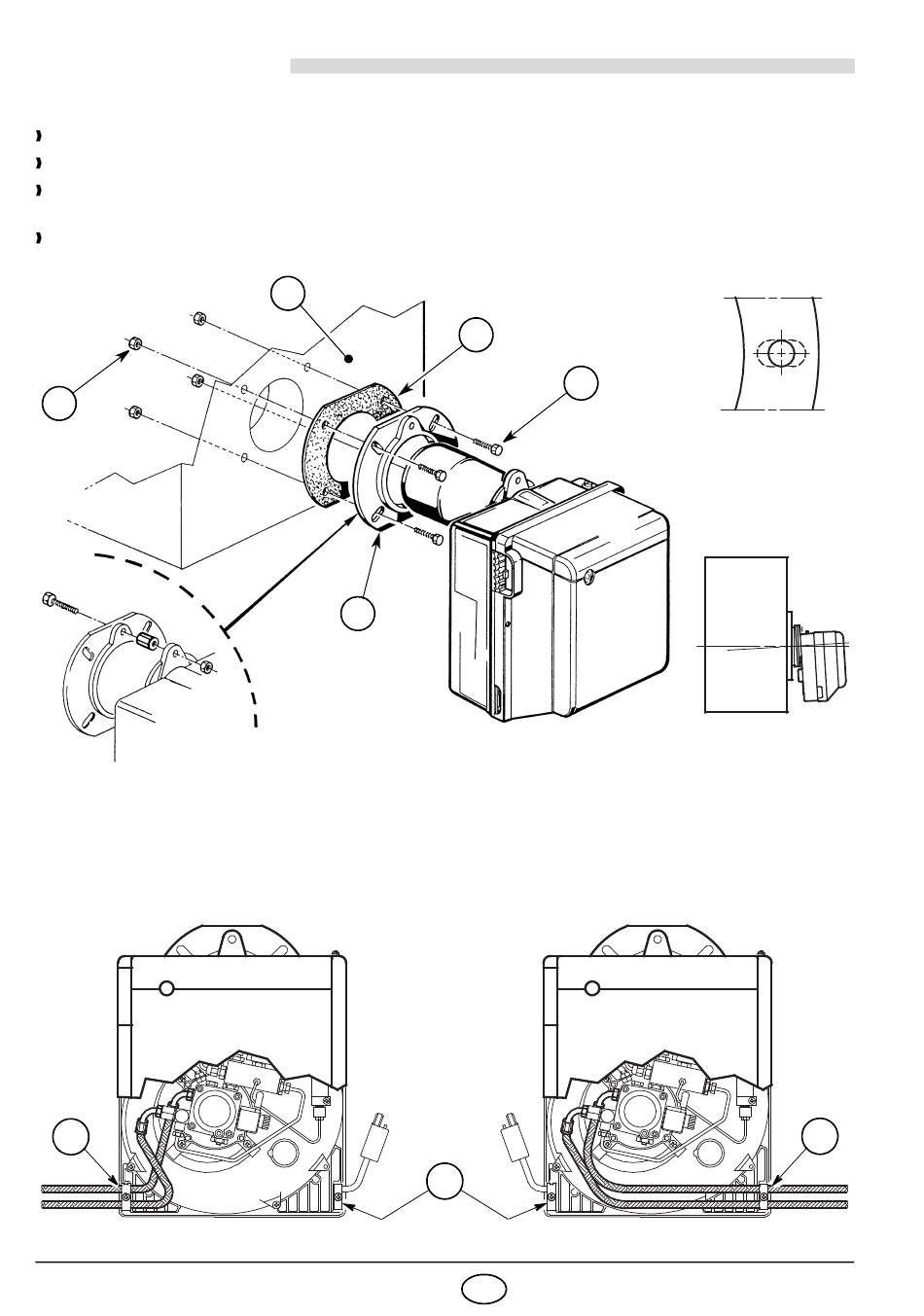

3.1 BOILER FIXING

Put on the flange (1) the screw and two nuts, (see fig. 3).
Widen, if necessary, the insulating gasket holes (4), (see fig. 4).
Fix the flange (1) to the boiler door (3) using screws (5) and (if necessary) the nuts (2) interposing the
insulating gasket (4), (see fig. 2).
After installation ensure that burner is lightly inclined as in fig. 5.
Fig. 2
2
Fig. 3

3.2 FUEL SUPPLY

The burner is designed to allow entry of the oil supply pipes on either side.
Depending on the oil supply pipes position (to the right or to the left hand side of the burner) the fixing plate
(1) and cable clamp (2) should be reversed, (see fig. 6).
1
2701
3
1
Fig. 6
2
4
4
5
S7112
GB
D5012
Fig. 4
D5025
Fig. 5
1
D5392
