Cleanfit P CPA472
Endress+Hauser
3.2.3
Raccords process
Fig. 6:

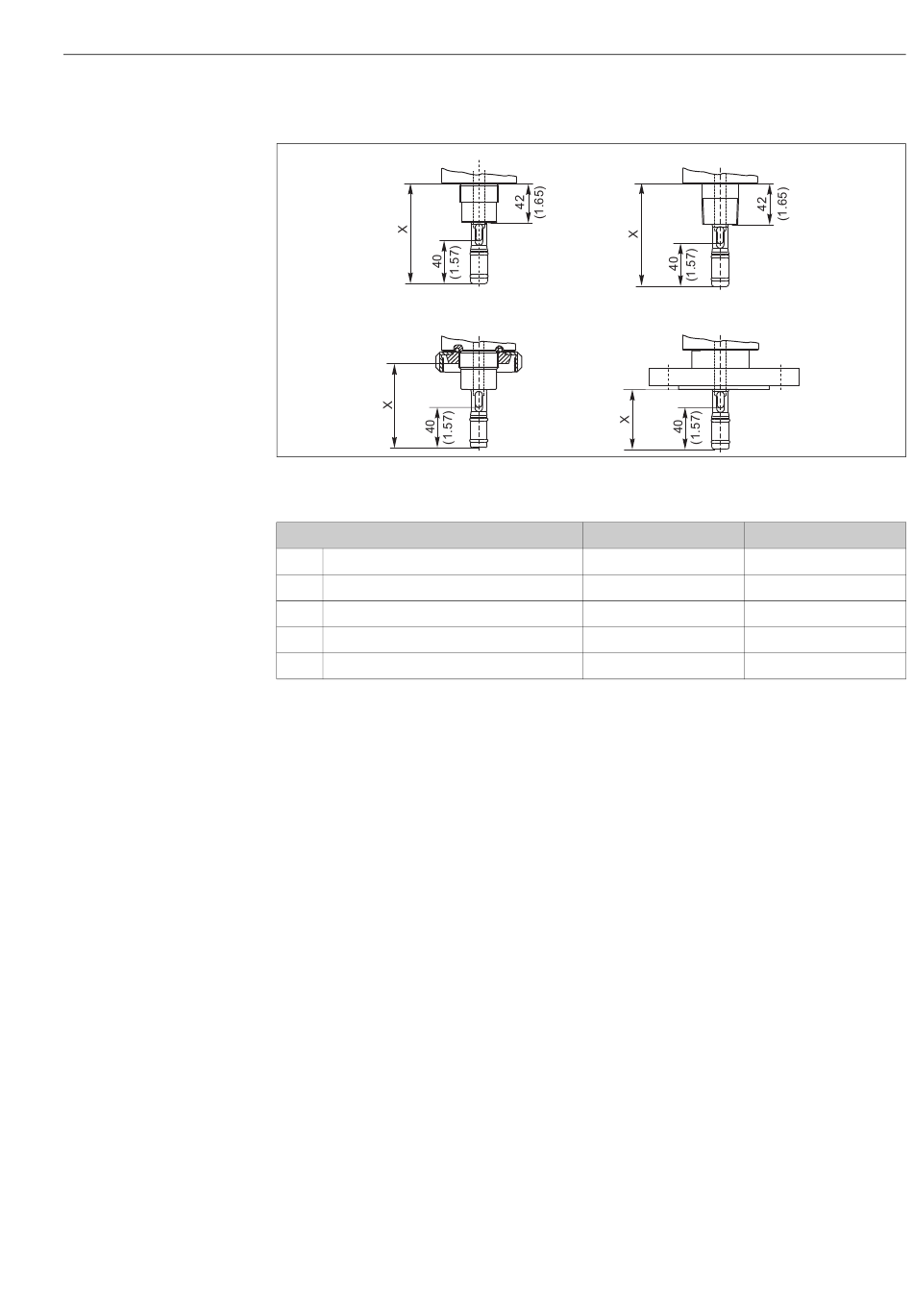

Raccords process version courte / version longue
Raccord process
A
Raccord fileté G1¼ extérieur
B
Filetage NPT 1"
C
Raccord laitier DN 50
D
Bride DN 50
E
Bride ANSI 2"
A
C
mm (inch)
X version courte
108 mm (4.25")
108 mm (4.25")
94 mm (3.70")
75 mm (2.95")
75 mm (2.95")
Montage
B
D / E
a0008353
X version longue
215 mm (8.46")
215 mm (8.46")
201 mm (7.91")
182 mm (7.17")
182 mm (7.17")
