Air Diverter Installation
Instructions
(Must be ordered separately)
(Appearance of the outlet on heater may
vary from model to model.)
1. Air diverters can be installed in the heater outlet
to provide direction to the heated air as it exits the
heater. Installation options include installing the
diverters in such a way as to broadly distribute the
air in two 45 degree paths or to focus the air flow
in one 45 degree direction. See Fig. 1.
2. The air diverters may require hand forming prior
to installation. Make 90 degree bends utilizing the
performations provided. Diverter should then have
the shape shown in Fig. 1.
3. The air diverter's tabs on each half will pop
into the blower outlet between the inside of the
case assembly and the blower housing outlet.
If the notched tabs do not pop into the blower
outlet, loosen (do not remove) the blower outlet
screws. Doing this provides a gap into which you
can insert the tabs. Retighten the screws after
installation.

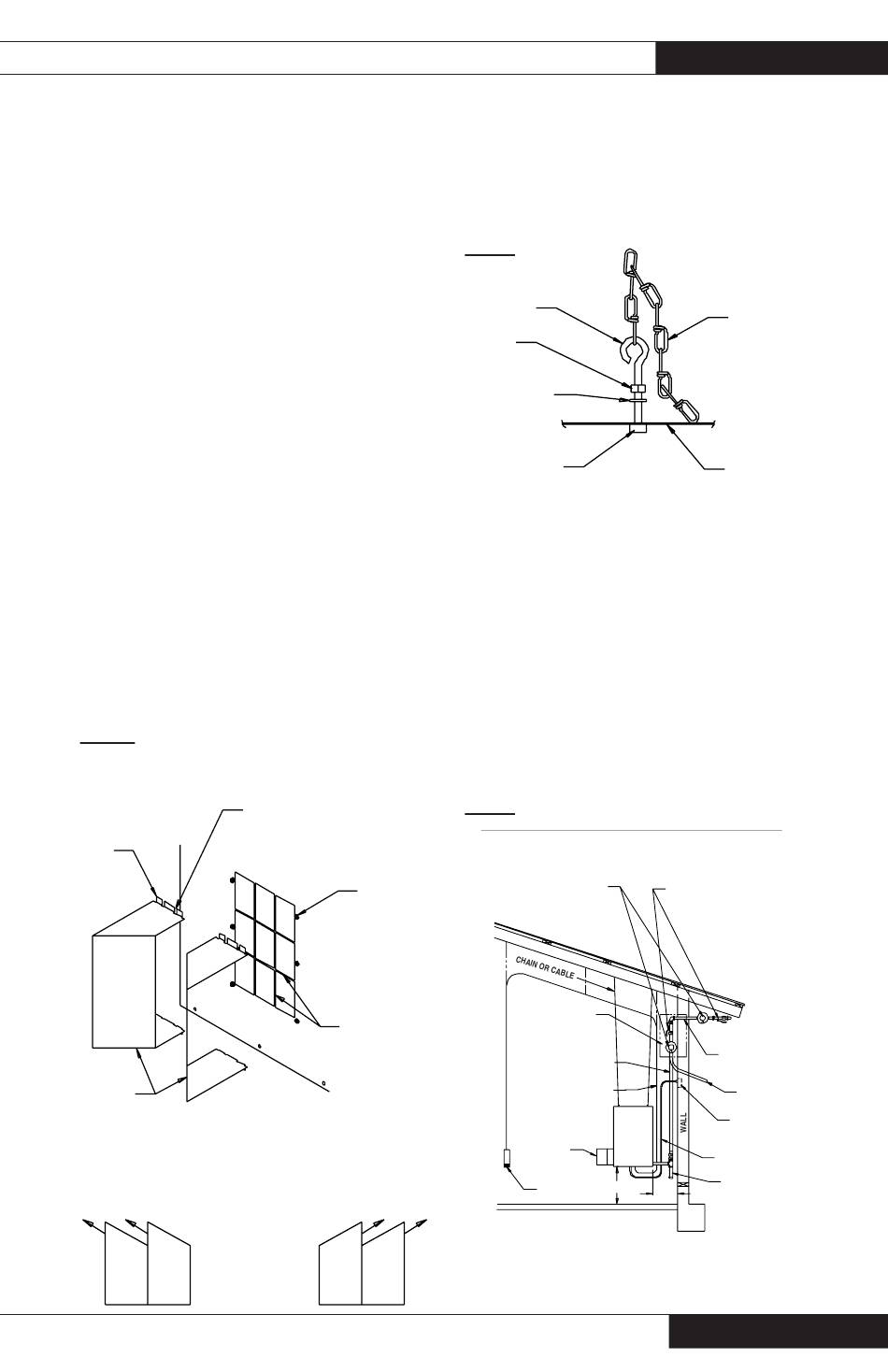

FIG. 1
(Typical installation allowing two directions of air
movement.)
TABS
DIVERTER
HALVES
Alternate Air Diverter Installations
Guardian LP or Natural Gas Heater
NOTCHES IN MOUNTING TABS
OUTLET
SCREWS
FORMED
OUTLET GUARD
Owner's Manual • Guardian
Hanging Instructions
1. Assemble eyebolts & chain according to
Fig. 2. Tighten hardward securely. Eyebolts
& chain must be ordered separately.
FIG. 2
EYEBOLT
NUT
FLAT WASHER
CAGE NUT
2. Be sure heater is securely fastened and is hang-
ing level. (Check crosswise and lengthwise.)
3. See Fig. 3 for typical indoor installation. In any
animal confinement building, consideration must
be given to making sure the heater is located
away from the livestock so that livestock cannot
knock the heater, tear it loose from its mounting,
or damage the heater or its gas supply line in
any way. Make sure you observe and obey
minimum clearance distances to combustible
materials as stated in the specification section of
this owner's manual and on the heater itself.
FIG. 3
NOTE: REGULATORS SHOULD ALWAYS BE MOUNTED OUTDOORS. IF
CIRCUMSTANCES FORCE INSTALLING THE REGULATOR INDOORS,
THE REGULATOR'S VENT MUST BE VENTED OUTDOORS USING VENT
LINE NO SMALLER THAN VENT OPENING.
VENT OF REGULATOR MUST
POINT DOWN AND REGULATOR
MUST BE VENTED OUTDOORS
OPTIONAL INDOOR
REGULATOR
MOUNTING LOCATION
GAS HOSE
THERMOSTAT
CORD
HEATER
YOKE
1 FT.
THERMOSTAT
11
CHAIN
CASE TOP
MANUAL SHUT-OFF VALVE
CAN BE INSTALLED BEFORE
THE REGULATOR, UNDER
THE EAVE OF THE BUILDING,
OR AFTER THE REGULATOR
INSIDE THE BUILDING.
BLACK PIPE
THROUGH WALL
VENT LINE
WALL OUTLET
POWER CORD
SEDIMENT
1 FT. TRAP
