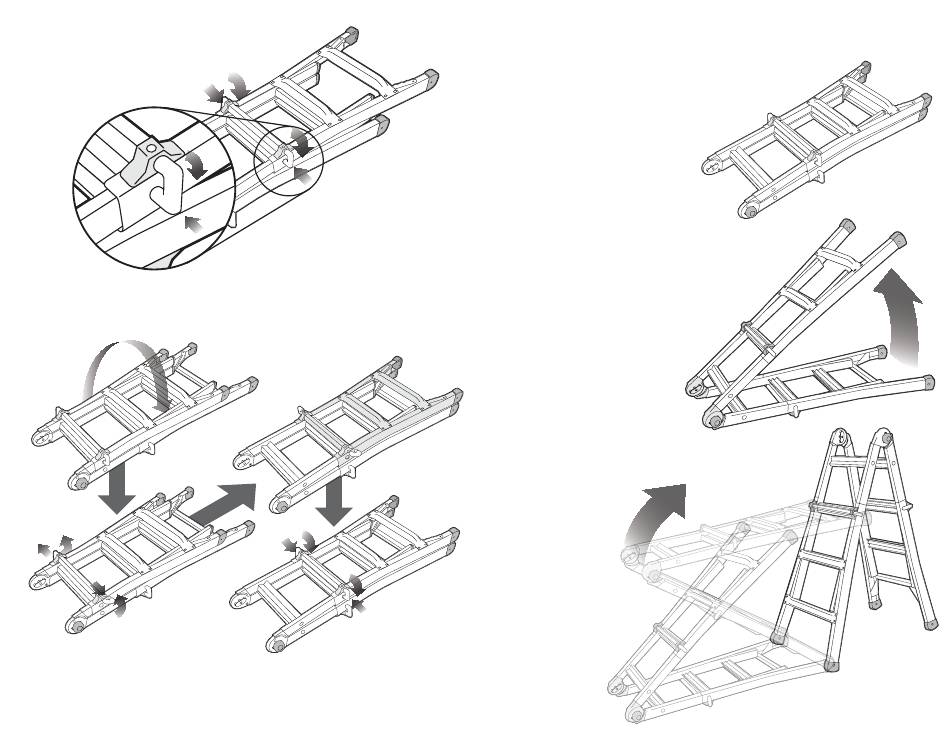

3. At the desired length, insert both Rail Lock Pins
into aligned ports in both Outer Ladder Unit
and Inner Ladder Unit.
See Fig. E4.
Fig. E4
4. Flip ladder over and repeat length adjustment Steps E1 through E4 for
opposite Outer Ladder Unit. (Note, in the Wall ladder configuration, one rail
section must be one rung shorter than the other. In the Stairway
configuration, either one or a maximum of two rungs shorter.)
Fig. E5
5. Recheck all four Rail Lock Pins to ensure that all are fully seated
and securely engaged in the Rail Lock Ports of both the Inner and Outer
Ladder Units. Reverse steps for storage.
7
Note: Pinch hazard! Be aware of sliding/moving parts. Keep hands and
feet clear.
F. Step Ladder setup:
➊
1. To configure as a Step Ladder, begin by adjusting
rail length as outlined in E. Adjusting Height,
Steps E1 through E5.
Fig. F1
2. With ladder flat on the ground, release Hinge Locks
(See C. Hinge Lock Operation, steps 1 & 2). Pull
two ladder sections apart until you hear hinges
lock. Check to make sure small arrows
on Hinge Lock Knobs are aligned with
the arrows stamped on the hinge
bodies, indicating hinges are locked.
See Fig. C1, Pg. 4.
Fig. F2
Fig. F3
3. Pull ladder into
upright position
for use.
Reverse steps
to fold.
