PRODUCT PARTS

Newborn inlay (1)
Size indicator (2)
Load leg (3)
ISOFIX-Release buttons (4)
ISOFIX-Locking arms (5)
ISOFIX-Anchorage points (6)
ISOFIX-Indicator (7)
Load leg adjustment button (8)
Load leg indicator (9)
Seat locking indicator (10)
Linear side-impact protection (L.S.P.)
(11)

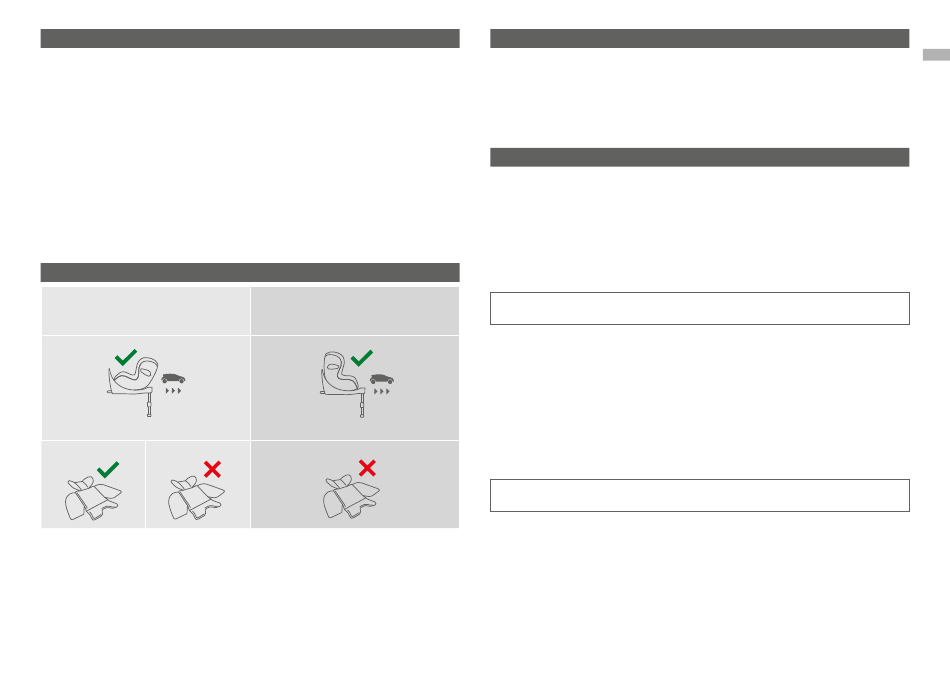

DIFFERENT USES OF THE SEAT
45 – 105 cm,
0 M – approx. 4 Y
max. 18 kg
45 – 60 cm > 60 cm
The Newborn inlay (1) will already be placed in the car seat when you take it out
of the box. This should be removed if your child is taller than 60 cm. The Size
indicator (2) shows the size your child must reach before it is permitted to convert
the seat for forward-facing use.
L.S.P. Release button (12)
Headrest (13)
Headrest adjustment handle (14)
Position adjustment handle (15)
Belt adjustment button (16)
Shoulder belt (17)
Belt buckle (18)
Buckle tongue (19)
Lap belts (20)
Central adjustment belt (21)
User guide compartment (22)
76 – 105 cm,
> 15 M – approx. 4Y
max. 18 kg
THE CORRECT POSITION IN THE VEHICLE
This is an i-Size Enhanced Child Restraint System. It is approved according
to UN Regulation No. R129/03, for use in i-Size compatible vehicle seating
positions as indicated by vehicle manufacturers in their vehicle user manuals. If
your vehicle does not have an i-Size seating position, please check the enclosed
vehicle Type List. You can obtain the most up-to-date version of the Type List from
www.cybex-online.com.

INSTALLATION IN THE VEHICLE

Always ensure that...
• the backrests in the vehicle are locked in their upright position.
• when installing the child seat on the front passenger seat, adjust the vehicle
seat as far back as possible.
1. Fold out the Load leg (3) until it locks into its foremost position.
2. Release the ISOFIX-Release buttons (4) to extend the ISOFIX-Locking arms
(5).
The ISOFIX-Release buttons can both be released independently allowing the
��
ISOFIX-Locking arms to be adjusted independently.
3. Push the ISOFIX-Locking arms (5) out of the car seat to their furthest extent.
4. Place the car seat on an appropriate seat in the vehicle.
5. Push the ISOFIX-Locking arms (5) into the ISOFIX-Anchorage points (6) until
these lock into place with an audible "CLICK". The two ISOFIX-Indicators (7)
will switch from RED to GREEN.
6. Ensure the car seat is secure by trying to pull it out of the ISOFIX-Anchorage
points (6).
7. Push the car seat towards the backrest of the vehicle seat until it is fully
aligned with the backrest.
Moving the car seat from side to side will also brace it against the vehicle
��
backrest.
8. Press the Load leg adjustment button (8) and extend the leg until it touches
the vehicle floor.
9. Pull the Load leg (3) out to the next locking position to ensure optimal force
transmission.
10. The Load leg indicator (9) switches to GREEN when the load leg is correctly
positioned on the vehicle floor.
