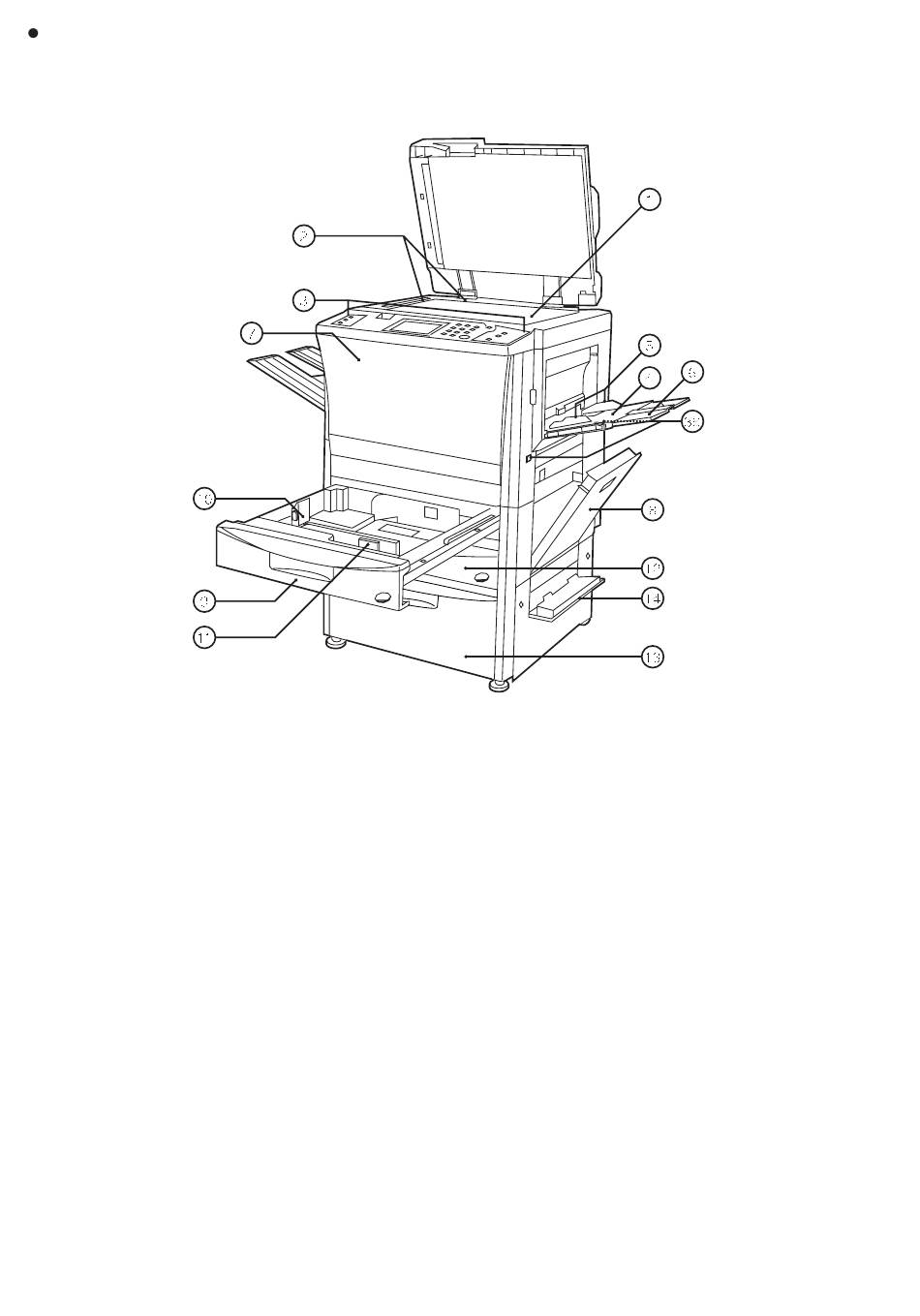

Names of parts for main body

The illustration and the instruction described on page 19 and page 20 are different for 50 ppm
copier as follows.
1 Platen
(Set a book original or the like that cannot be set in the DF
on this.)
2 Original size indicator lines
(Be sure to align the original with these when setting the
original on the platen.)
3 Operation panel
(Operate to copy here.)
4 Stack bypass tray
(Load paper here when copying onto small-size paper or
colored paper.)
5 Insert guides
(Be sure to match the paper size when loading paper on the
stack bypass tray.)
6 Support guide
(Pull out when copying onto paper measuring 8
larger.)
7 Front cover
(Open to replace a toner cartridge or for misfeed removal.)
8 Right cover
(Open when paper misfeed occurs in the paper feed
section.)
9 Drawer 1
(Holds up to 550 sheets of standard paper.)
0 Length adjustment lever
! Width adjustment lever
195
@ Drawer 2
(Holds up to 550 sheets of standard paper.)
# Paper feed deck
(Holds up to 3,000 sheets of standard paper.)
$ Right deck cover
(Open when paper misfeed occurs.)
% DF original reversing cover
(Open when paper misfeeds in DF section.)
^ Original set indicator
(The original condition is displayed.
Green lights: The original is set. Copying will begin by
pressing the Print key.
Green blinks: The original is not set securely. Reset the
original.
Red blinks: Originals are misfed. Remove all misfed originals
" x 11" or in accordance with page 180.)
1/2
& Original insertion guide
(Set to match the size of the original when setting in the DF.)
* Original table
(Set the DF original on this table.)
( DF opening/closing lever
(Hold when opening and closing the DF.)
) Original ejection cover
(The copied originals are stored here.)
⁄ Paper ejection guide
(Open when setting an original of 8
DF.)
" x 14" or larger in the
