ENGLISH
Use for cable location identification mapping and/or continuity testing. Self-storing remotes display
on tester as Remote ID No. 1. Included with all VDV Scout
RJ11/12
port
Use for cable location identification
mapping and continuity testing.
Remotes display on tester as Remote ID
Nos. 1-12. Set Nos. 2–6 included with
VDV500-853 and sold separately, set
Nos. 7–12 sold separately, individual
remote Nos. 1–12 each sold separately.

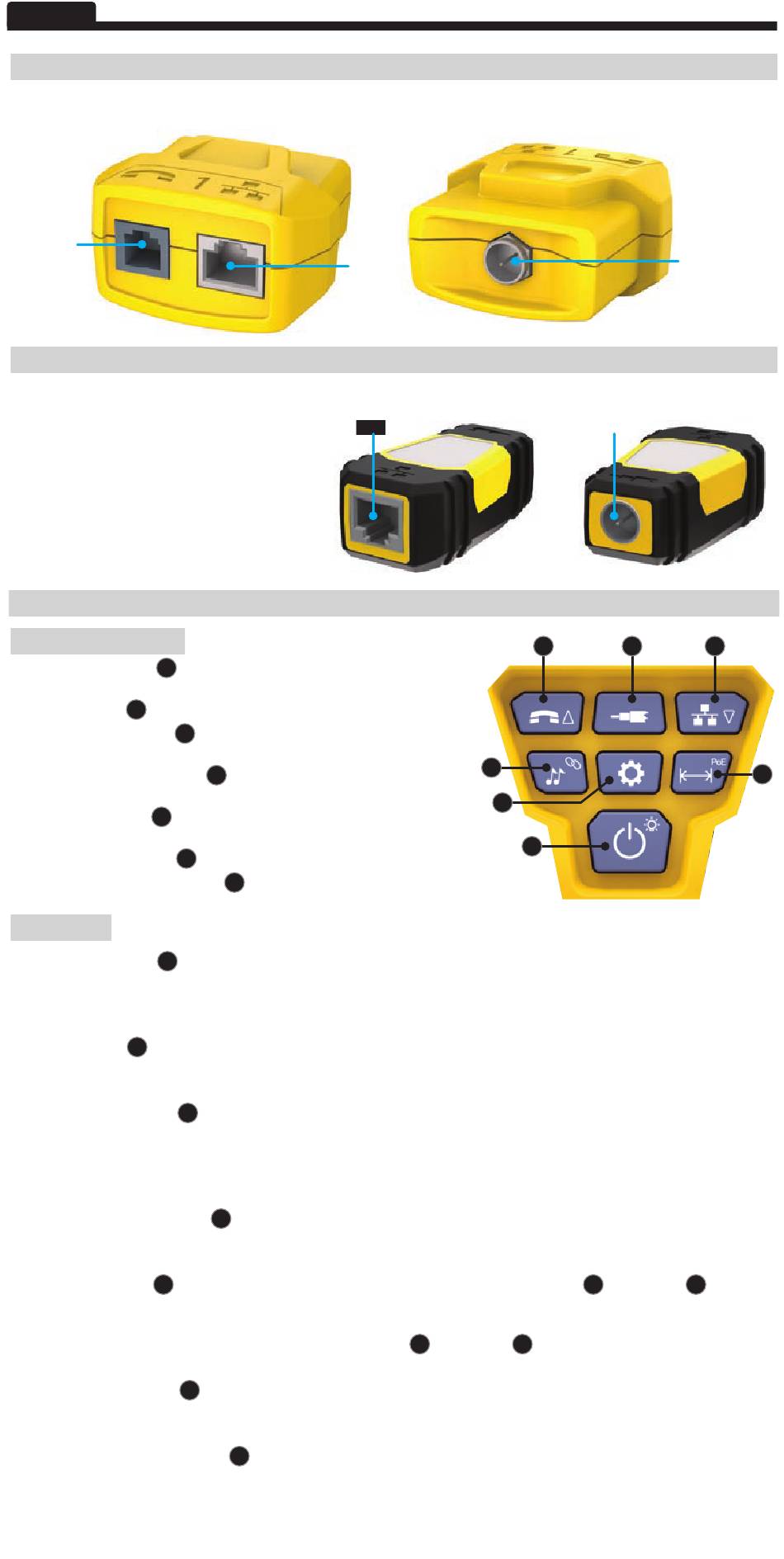

QUICK REFERENCE

• VOICE / UP BUTTON
terminated cable, toggles selection upward in other modes.
• VIDEO BUTTON : Performs continuity test on F-terminated coax cable.
B
• DATA / DOWN BUTTON
terminated cable, toggles selection downward in other modes.
• TONE / HUB BLINK BUTTON
tone cadences, initiates Hub Blink.
• SETTINGS BUTTON
enters Length Constant Edit mode.
• LENGTH / PoE BUTTON
• POWER / BACKLIGHT BUTTON
IN DETAIL
• VOICE / UP BUTTON
Length Test mode, the first short press selects Voice mode, while repeated short presses selects wires or pairs of
wires. Long press: Turns Loop mode on or off. When in Tone or Length Test mode, returns to the home screen.
When in Settings mode, changes UOM from feet to metres, or increases the length contant value.
• VIDEO BUTTON : Short Press: Initiates continuity test on an F-terminated coax cable. When in Tone or Length
B
Test mode, a short press selects Video mode. Long Press: Turns Loop mode on or off. When in Tone or Length
Test mode, returns to the home screen.
• DATA / DOWN BUTTON
Short Press: Initiates wiremap test on RJ45 terminated cable. When in Tone or Length Test mode, first short press
selects Data mode, while repeated short presses select wires or pairs of wires. Long Press: Turns Loop mode on or
off. When in Tone or Length Test mode, returns to the home screen. When in Settings mode, changes UOM from
feet to metres, or increases the length contant value.
• TONE / HUB BLINK BUTTON
cadences. Long Press: Initiates Hub Blink. NOTE: DO NOT attempt to use Hub Blink function when connected to a
Power over Ethernet (PoE) active port.
• SETTINGS BUTTON
to adjust the value). Default for Length Constant mode is the wire pair of Pins 1 and 2 of data/RJ45 cable, and
the wire pair of Pins 3 and 4 of voice/phone cable. See the LENGTH CONSTANT section for more details. Second
Short Press: Displays option of feet or metres (use the UP
LENGTH MEASUREMENT section for details. Long Press: Exits Settings mode and returns to the home screen.
• LENGTH / PoE BUTTON
RJ45 port. By default, the test will initiate on the first wire with no faults found. See the LENGTH MEASUREMENT
and LENGTH CONSTANT sections for more details. Long Press: Initiates PoE test.
• POWER / BACKLIGHT BUTTON
turn the backlight on and off. Press the power button a second time to turn the LCD backlight on or off.
Long Press: Turns unit off. NOTE: Unit will automatically power off after 5 minutes of inactivity, or after
60 minutes when in Tone mode.
SELF-STORING TEST + MAP™ ID REMOTE (VDV501-210)
TEST + MAP™ ID REMOTES (VDV501-2## SERIES)
A : Performs wiremap test on RJ11/RJ12
: Performs wiremap test on RJ45
C
D : Cycles through available
: Selects feet or metres,
E
F : Measures cable length, initiates PoE test.
G : Turns unit on or off, turns backlight on or off.
: Short Press: Initiates wiremap test on RJ11/RJ12 terminated cable. When in Tone or
A
:
C
: Short Press: Repeated short presses will toggle through the available tone
D
E : Short Press: Enters Length Constant edit mode (use the UP
F : Short Press: Initiates cable length test. Test will default to a cable connected to the
G : Short Press: First short press turns the unit on, repeated short presses will
TM
RJ45
port
RJ45
port port

KEYPAD FUNCTION

and DOWN
A
Pro 3 models.
F-connector
port
A
D
E
G
A and DOWN
buttons to change). See the
C
F-connector
port
B C
F
C buttons
