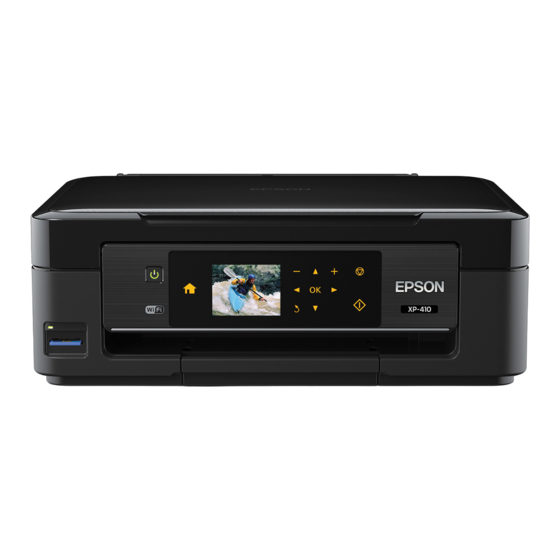

Epson XP-410 Guide Rapide
Masquer les pouces Voir aussi pour XP-410:

Publicité

Les langues disponibles

Les langues disponibles

Liens rapides

XP-410
Start Here
1
Unpack
3
Load paper
1
3
4
2
4
Install ink cartridges
5
Install software
Mac OS X: Wait for ink priming to complete before installing the software.
Note:
If your computer does not have a CD/DVD drive, download the software:
Windows: www.epson.com/support/xp410win
Mac OS X: www.epson.com/support/xp410mac
1
Make sure the printer is NOT CONNECTED to
your computer.
®
Windows
:
If you see a Found New Hardware screen,
click Cancel and disconnect the USB cable. You can't
install your software that way.
2
Insert the product CD.
3
Windows 8: Click the CD/DVD drive message that appears on your
computer screen. Then select Run Setup.exe. If you don't see this option,
navigate to your CD/DVD drive and double-click Setup.
Windows (other versions): If you see the AutoPlay window, click Run
Setup.exe.
Mac OS X: Double-click the
Epson icon, if necessary.
4
Click Install (Windows) or Continue (Mac OS X) and follow the instructions
on your computer screen.
5
When you see the Select Your Connection screen, select one of the following
connections:
Wireless connection
For the fi rst installation, we recommend using a USB cable (not
included) to simplify wireless setup. After the printer is connected to the
network, you will be prompted to remove the cable. You must install the
software on every computer from which you want to print.
If you're using Mac OS X 10.6, 10.7, or 10.8, or you don't have a USB
cable, you will need to use the buttons on the printer to select wireless
settings.
For information on Wi-Fi Direct™, see the online User's Guide.
Make sure you know your network name (SSID) and network password.
Direct USB connection
Make sure you have a USB cable (not included).
Any problems?
If you experience problems during setup, see below:
Network setup was unsuccessful.
Make sure you select the right network name (SSID).
If you see a fi rewall alert message, click Unblock or Allow to let setup
continue.
Read these instructions before using your product.
Note for Spanish speakers/Nota para hispanohablantes:
Para obtener instrucciones de confi guración en español, consulte la Guía de instalación
en www.epson.com/support/xp410sp (requiere una conexión a Internet).
2
Turn on and adjust
1
2
3
Caution:
Do not connect to your computer yet.
2
1
If your network has security enabled, make sure
you enter your network password (WEP key or
WPA passphrase) correctly. Passwords must be
entered in the correct case. Use the function
buttons to select uppercase (AB12), lowercase
(ab12), symbols (1#%@ [Symbol]), or spaces
(Space), and to delete characters (
).
Press
,
,
or
on the printer to highlight a
letter or function button. Press OK to select it.
Highlight Done and then press OK.
The printer's screen is dark.
Press any button to wake your product from sleep mode.
Setup is unable to find my printer after connecting it with a
USB cable.
Make sure the printer is turned on and that it is securely connected as shown:
Any questions?
Quick Guide
Basic instructions for copying, printing, scanning, and troubleshooting.
User's Guide
Click the icon on your desktop (or in the Applications/Epson Software/Guide
folder in Mac OS X) to access the online User's Guide.
On-screen
Select Help or ? when you're using your software.
Online
Visit epson.com/support (U.S.) or epson.ca/support (Canada).
Phone
Speak with a support specialist by calling (562) 276-4382 (US) or (905) 709-3839
(Canada), 6
to 8
, Pacifi c Time, Monday through Friday, and 7
AM
PM
Pacifi c Time, Saturday.
Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.
Recycling
Epson offers a recycling program for end-of-life hardware and ink cartridges.
Please go to www.epson.com/recycle for information on how to return your
products for proper disposal.
English
2
1
Caution:
Do not lower the control
panel without fi rst squeezing the
release bar underneath or you may
damage the product.
8½ × 11 inch
(216 × 279 mm)
4 × 6 inch
(102 × 152 mm)
1
Press
to prime the ink delivery system. Priming takes about
4 minutes.
Note:
The cartridges included with the printer are designed for printer
set up and not for resale. After some ink is used for priming, the rest is
available for printing.
Caution:
Don't turn off the printer while it is priming or you'll waste ink.
Need paper and ink?
Function
buttons
XP-410 ink cartridges
Color
Black
Cyan
Magenta
Yellow
Print Anywhere, Anytime*
Print wirelessly from your tablet, smartphone, or computer. Print documents
and photos from across the room or around the world. Learn more at
www.epson.com/connect.
*
Most features require an Internet connection to the printer as well as an Internet- and/or email-enabled device.
to 4
,
AM
PM
EPSON, Supplies Central, and DURABrite are registered trademarks, Epson Connect is a trademark, and EPSON Exceed Your
Vision is a registered logomark of Seiko Epson Corporation. Designed for Excellence is a trademark of Epson America, Inc.
General Notice: Other product names used herein are for identifi cation purposes only and may be trademarks of their respective
owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2013 Epson America, Inc. 1/13
Printed in XXXXXX
*412453900*
*412453900*
To select English as your language, press OK.
If you want to change the language, press
or
to
select it, then press OK.
Note:
You can change the language later using the product's
control panel. For more information, see the online User's Guide.
4 minutes
2
Try Epson specialty papers with DURABrite
®
Ultra Ink for
professional results. For the right supplies at the right
time, you can purchase them at Epson
®
Supplies Central
at www.epson.com/ink3 (U.S. sales) or www.epson.ca
(Canadian sales). You can also purchase supplies from an
Epson authorized reseller. To fi nd the nearest one,
call 800-GO-EPSON (800-463-7766).
Standard-capacity
High-capacity
200
200XL
200
200XL
200
200XL
200
200XL
CPD-38788
®
