LIEBERT® INTELLISLOT™ RDU101™
COMMUNICATIONS CARD
Quick Installation Guide

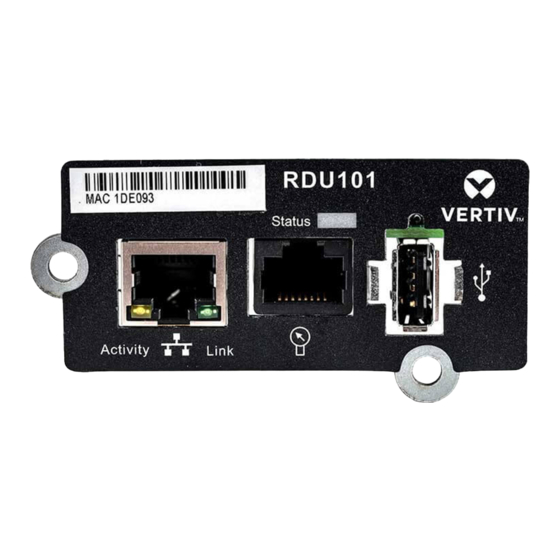

The Liebert IntelliSlot RDU101
Communications Card enables
SNMP management of Liebert
equipment. To integrate the card
into a SNMP system, compile the
Liebert Global Products MIB on the
network management station
(NMS). The Liebert Global
Products MIB supports both
Microsoft® Windows® and Unix file
formats. The MIB files can be
downloaded at https://www.
vertivco.com/en-us/support/
1. Mounting the IntelliSlot
card
NOTE: The bay may have a
plastic cover.
Insert the card into the
IntelliSlot bay on your Liebert
equipment and secure the card
using the screws supplied with
the Liebert equipment.
2. Connecting to Card
If using DHCP or BootP,
connect a LAN cable to the
card's Ethernet port. If using
Static IP, proceed to step 4.
3. Using DHCP or BootP
Address
Allow time for the card to boot
and acquire an address.
Get the address from the
network administrator based on
the card's MAC address (from
the label on the card's
faceplate). If the network
administrator is unavailable, the
DHCP address can be obtained
by accessing the card with a
link local connection. This is a
direct PC-to-card Ethernet
connection. The PC acquires a
local address and the card is
accessed at 169.254.24.7.
Navigate to the
Communications-tab menu:
Support > Active Networking >
IPv4 Address.
Liebert® IntelliSlot RDU101
TM
4

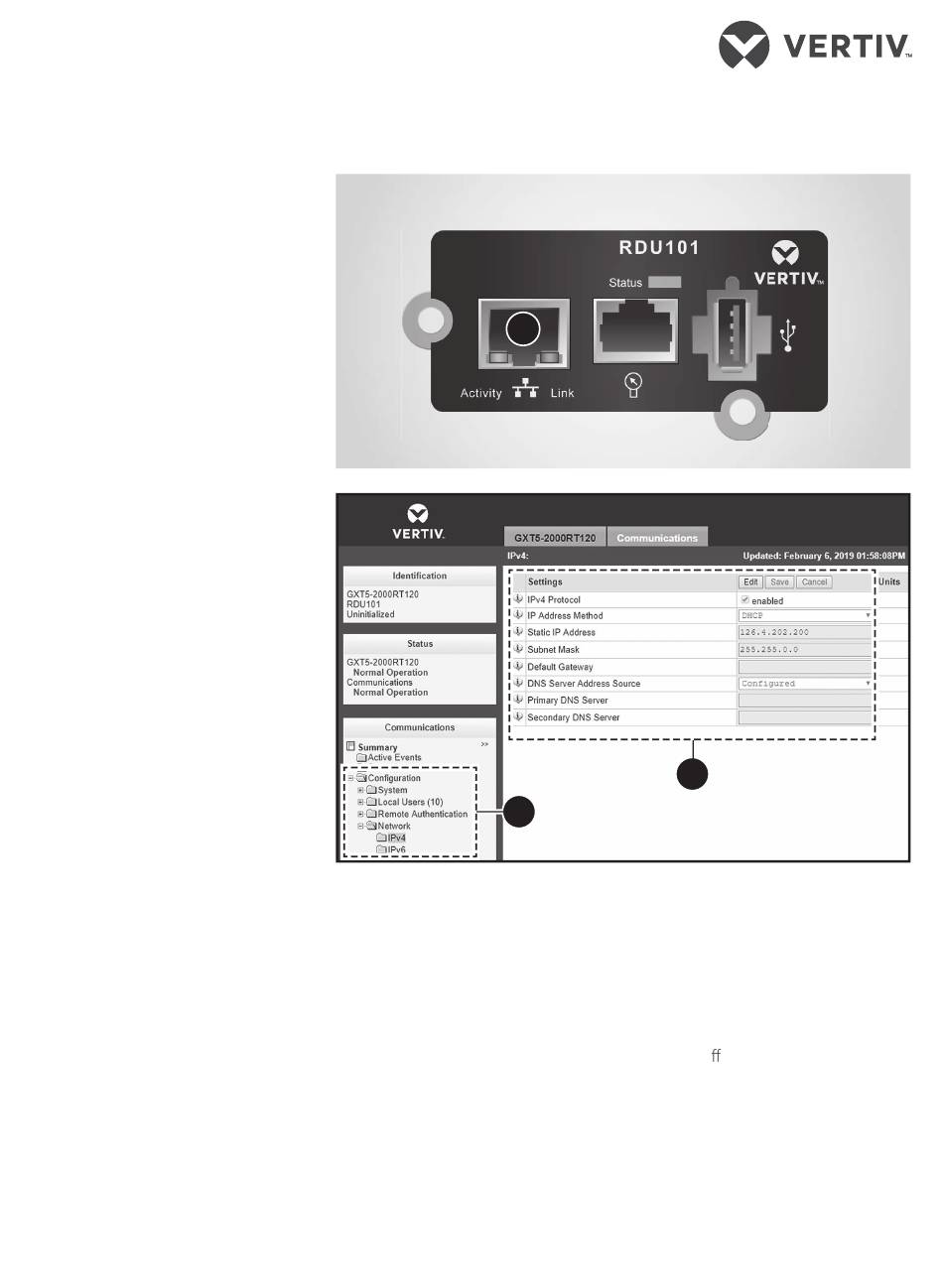

4. Using a Static IP Address
Access the card using a link-
local connection. This is a
direct PC-to-card Ethernet
connection. The PC acquires a
local address and the card is
accessed at 169.254.24.7
Click the Communications tab,
then in the Communications-tab
menu, select Configuration >
Network > IPv4 or IPv6.
Select the IP protocol folder to
configure, click the Edit button
in the details panel,
Communications Card
TM
2
4
and enter the default user name
and password:
• Default user name: Liebert
• Default password: Liebert.
Check the enabled box, and
enter the address information,
then click Save. The settings
take e ect when the card is
restarted.
Connect the card to the LAN
and confirm access. You can
return to the Web UI and
customize the configuration
including changing the user
names and passwords.
1
590-2176-612A/SL-31321_REV0
