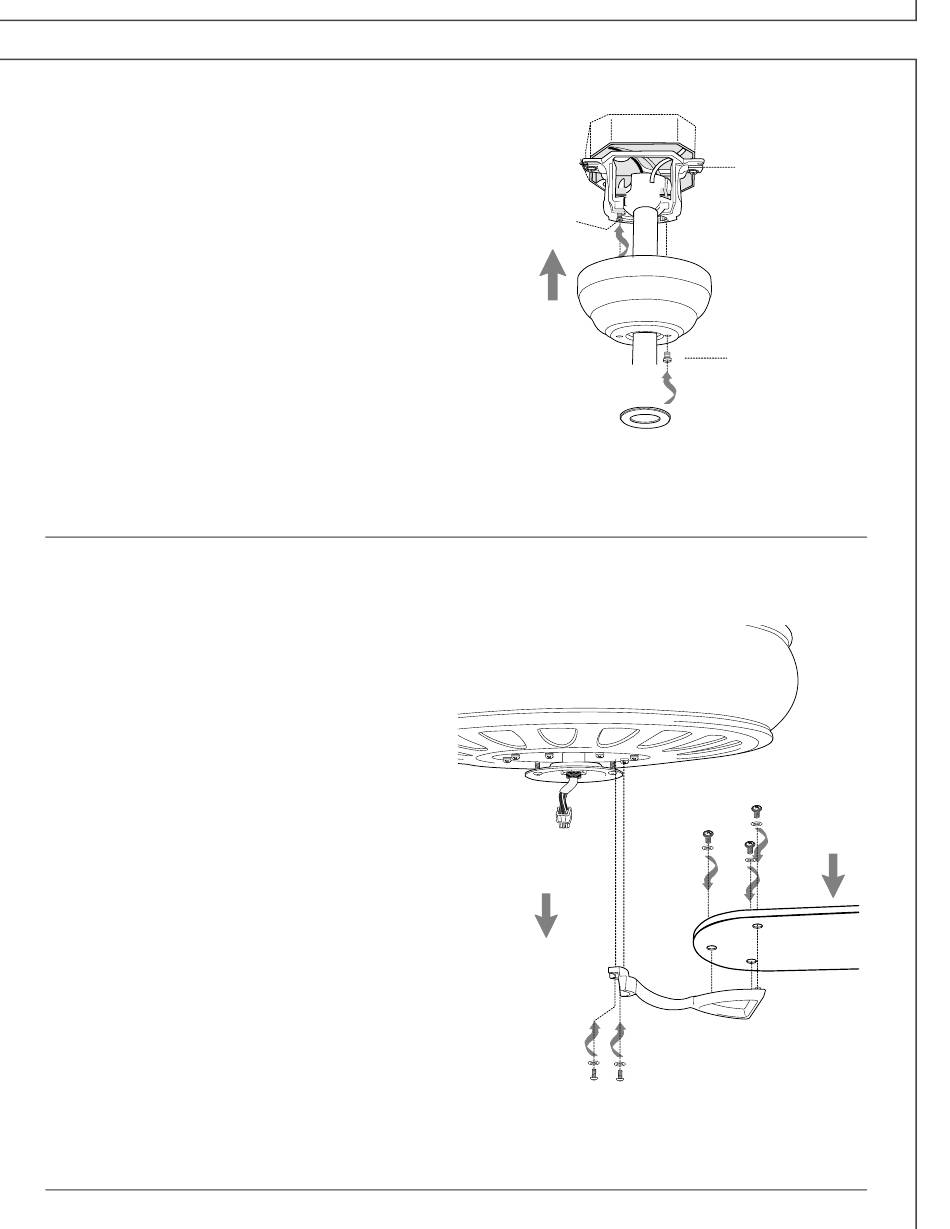

7. Canopy Assembly.

Locate 2 screws on underside of hanging bracket and
remove screw closest to the open end of the hanging
bracket. Partially loosen the other screw. Lift canopy to
hanging bracket. Place rounded part of slotted hole in
canopy over loosened screw in hanging bracket and
push up. Twist canopy to lock. Re-insert screw that was
removed and then tighten both screws securely. Slide
canopy cover up to canopy, aligning rounded part of
slotted holes in canopy cover with screwheads in
bottom of canopy. Turn canopy cover to the right
(clockwise) until it stops.

8. Blade Assembly.

Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade
and align holes. Insert 3 blade attachment
screws (along with washers) with fingers first
and then tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Locate blade arm screws and lock washers that
were previously removed on page 4. Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat with remaining blade arms. Securely
tighten all screws.
Note: Tighten blade arm screws twice a year.
screw
canopy
motor housing
lock
washers
page 6
hanging bracket
screw
canopy cover
blade attachment
screws and washers
blade arm
blade arm screws
blade
