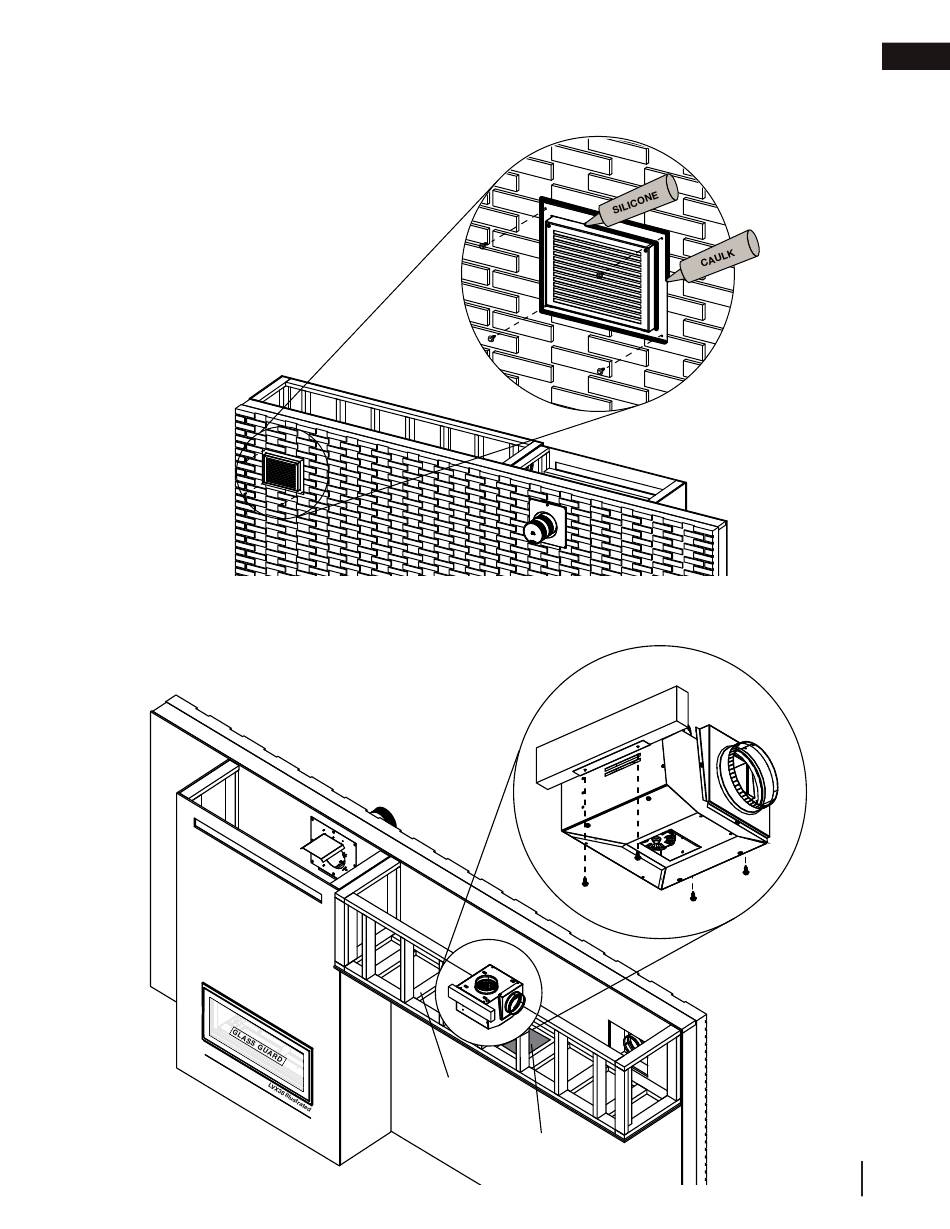

3. Attach the hot air exhaust assembly to the exterior wall by securing the wall flashing with appropriate fasten-
ers (not supplied) (Fig. 3).
4. Apply silicone to the joint after installation, and
caulk or seal the flashing appropriately for the
finish material (Fig. 4).
Exterior
5. Determine the location of the blower housing assembly, and then frame two studs spaced at 13 1/4"
(33.6cm). Secure the blower housing assembly to the framing by securing the mounting brackets with appro-
priate fasteners (not supplied) (Fig. 5).
Interior
Inside View of Bulk-
head (Some Framing
and Finishing Hidden
for Clarity)
Access Panel
remote inline installation
Underside View
Exterior
Fig. 5
Interior
W415-1789 / C / 01.29.19
EN
Fig. 4
Fig. 3
23
