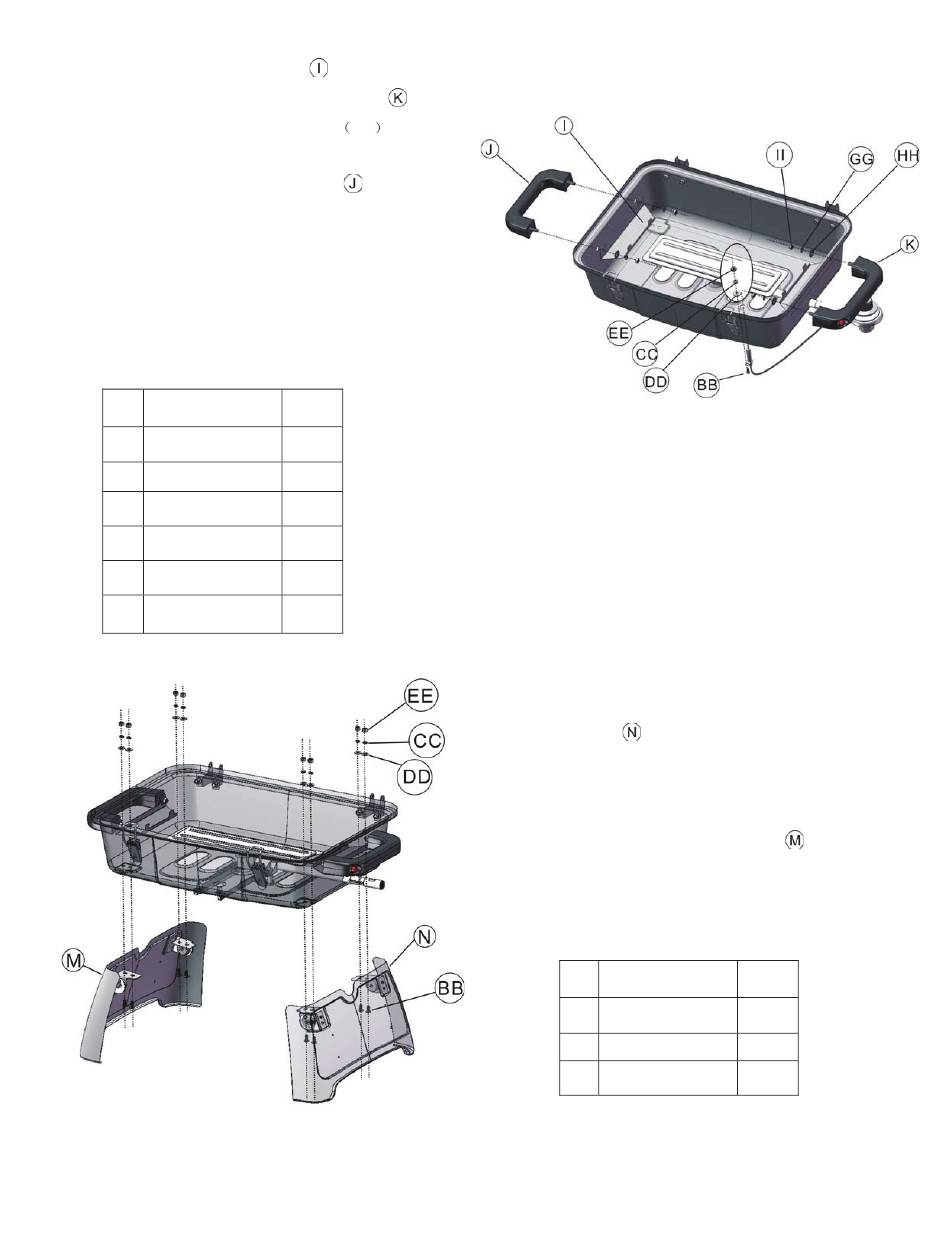

Step 3
a) Align the holes on the right side of the body assembly with
the holes on the heat plate support
b) Insert the pre-installed bolts on the right handle
holes and tighten with one flat washer
washer (GG),and one nut(II).
c) Repeat the procedure for the left handle
d) Align the hole on the ignition cable with the hole on the
bottom of the body assembly.
e) Insert one bolt (BB) into the hole and align with one flat
washer (DD) one spring washer (CC) and one nut (EE)
f) Go back and tighten all bolts using the screwdriver
provided.
M5 × 10 Bolt
BB
M5 Spring washer
CC
Flat washer
DD
M5 Nut
EE
Flat washer
HH
Spring washer
GG
M6 Nut
II
.
into the
HH , one spring
.
1 PC
1 PC
1 PC
1 PC
4 PCS
4 PCS
4 PCS
9
Step 4
a) Align the holes on the lower right front side and lower
right back side of the body assembly with the holes on
the right leg .
b) Insert one bolt (BB) into each pre-drilled hole and attach
with one flat washer (DD), one spring washer (CC) and
one nut (EE).
c) Repeat the procedure for the left leg
d) Go back and tighten all bolts using the screwdriver
provided.
M5 × 10 Bolt
BB
Flat washer
DD
M5 Spring washer
CC
M5 Nut
EE
.
8 PCS
8 PCS
8 PCS
8 PCS
