Common Filter parameters (Page 2)
The remaining parameters in the Filter Menu are common to all both ilters. They are avail-
F1Freq F1Res F1Env2 F1Track
able whichever ilter is selected by the SELECT button [10].
0
127 0
FBalance FRouting FreqLink ResLink
-64 Parallel Off
F2Freq F2Res F2Env2 F2Track
RE1: Filter balance
0
127 0
Displayed as:
FBalance
FBalance FRouting FreqLink ResLink
Initial value: -64
-64 Parallel Off
Range of adjustment: -64 to +63
UltraNova's two ilter sections may be used simultaneously, but conigured in different ways
AmpAtt AmpDec AmpSus AmpRel
(see RE2 below). Low-pass and band-pass ilters could be combined in parallel to create
2 90 127
speech-like sounds (see Tips below). For conigurations using both ilters, RE1 lets you
AmpAtSlp AmpDcSlp AmpAttTk AmpDecTk
0 127 0
mix the outputs of the two ilter sections together in whatever combination you want. The
minimum parameter value of -64 represents maximum output from Filter 1 and no output
FltAtt FltDec FltSus FltRel
2 75 35
from Filter 2, and the maximum value of +63 represents maximum output from Filter 2 and
no output from Filter 1. With a value of 0, the outputs of the two ilter sections are mixed in
FltAtSlp FltDcSlp FltAttTk FltDecTk
0 127 0
equal proportion.
E3Att E3Dec E3Sus
10 70 64
RE2: Filter Routing
E3AtSlp E3DcSlp E3AttTk E3DecTk
Displayed as:
F1Routing
0 127 0
Initial value: Parallel
Range of adjustment: Bypass, Single, Series, Parallel, Paral2, Drum
UltraNova provides ive possible combinations of the two ilter blocks, plus bypass. Single
mode uses Filter 1 only, the other modes interconnect the two ilter sections in various
ways.
FILTER
BALANCE
EFFECTS
FILTER
BALANCE
EFFECTS
O3PW/Idx O3Hard O3Dense
0 127 0
MVibRate OscDrift OscPhase
0 65 0 0deg
F1Type F1DAmnt F1DType
127 LP24 0 Diode
Off
F2Type F2DAmnt F2DType
127 LP24 0 Diode
Off
AmpVeloc AmpRept AmpTTrig
40 0 0 OFF
AmpSusRt AmpSusTm AmpLvlTk
0 0 127 0
FltVeloc FltRept FltTTrig
45 0 0 OFF
FltSusRt FltSusTm FltLvlTk
0 0 127 0
E3Rel E3Delay E3Repeat E3TTrig
40 0 0 OFF
E3SusRat E3SusTim E3LvlTk
0 0 127 0
Bypass
No iliters in circuit
Single
FILTER 1
Filter 1 only
FILTER 2
O3DnsDtn
0
NoiseTyp
White
F1QNorm
64
F2QNorm
64
AmpMTrig
Re-Trig
LvlTkNte
C 3
FltMTrig
Re-Trig
LvlTkNte
C 3
E3MTrig
Re-Trig
LvlTkNte
C 3
FILTER 1
FILTER 2
FILTER
BALANCE
EFFECTS
FILTER 1
FILTER 2
FILTER
BALANCE
EFFECTS
FILTER 1
FILTER 2
FILTER
BALANCE
EFFECTS
FILTER 1
FILTER 2
FILTER
BALANCE
EFFECTS

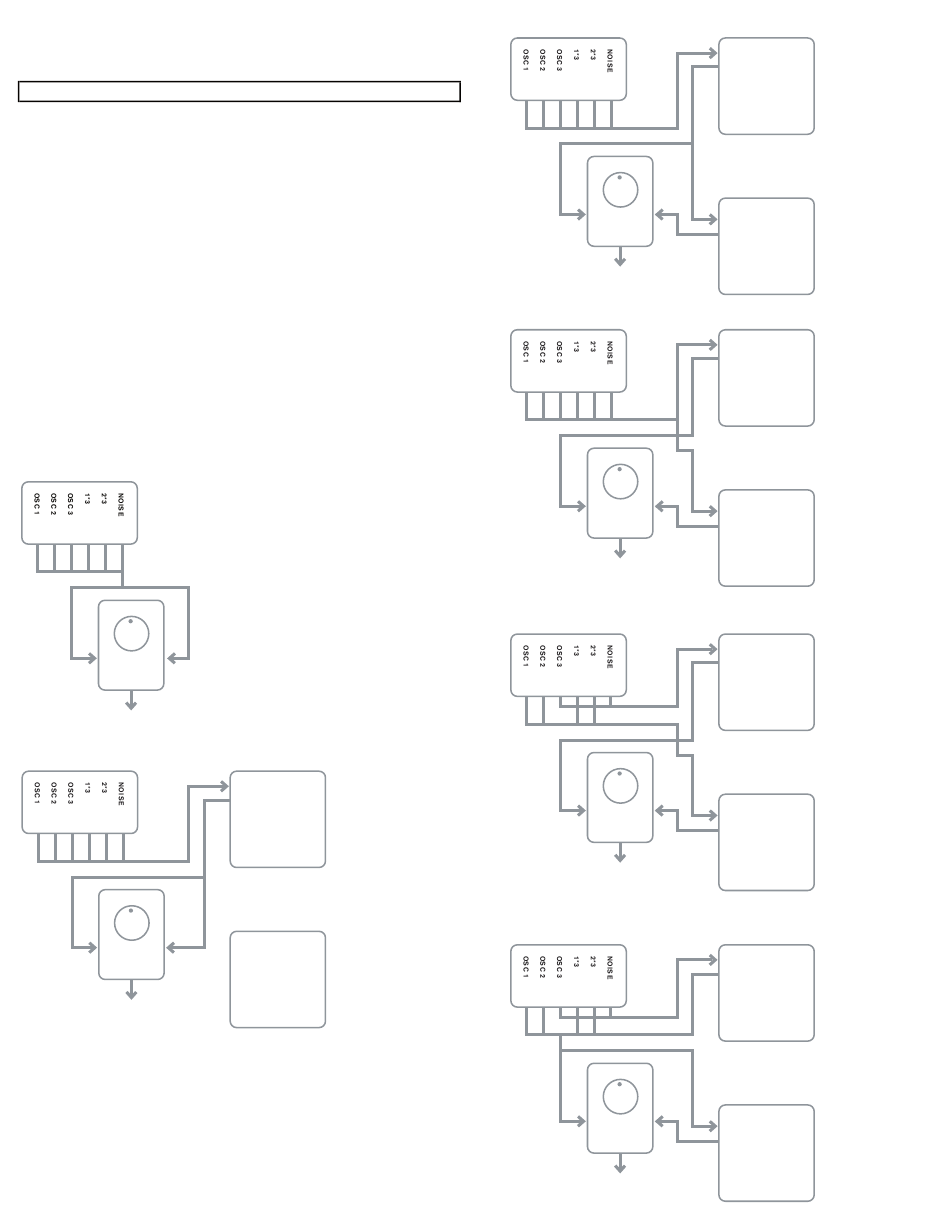

Series
