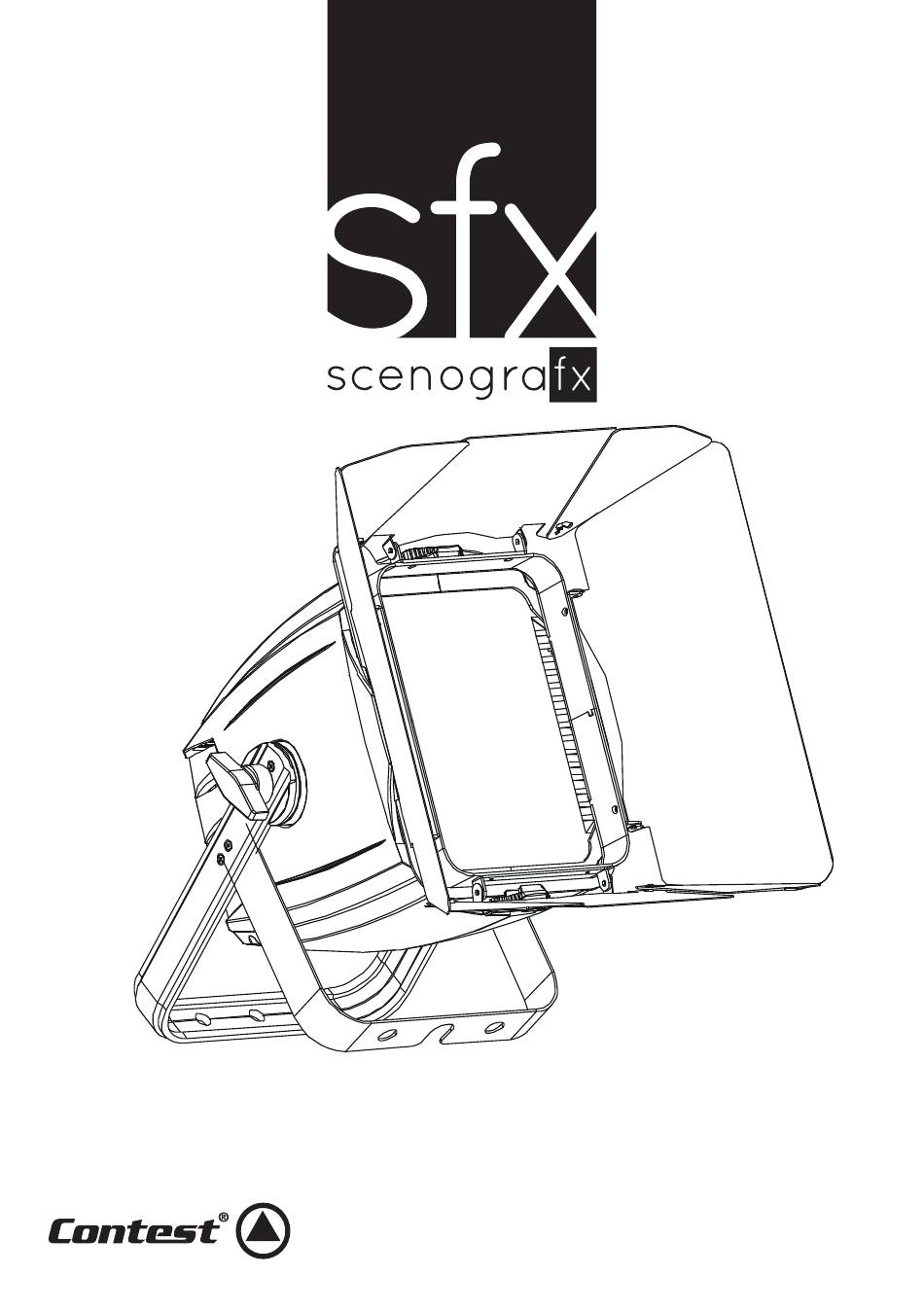

- Page 1 SCENE STORE EXPO SFX-HO150W USER GUIDE 10702 - Version 1 / 02-2017...
-
Page 2: Instructions De Sécurité
Seuls les services techniques compétents et reconnus par jamais les capots. Il n’y a aucune pièce réparable par l’utilisateur à l’intérieur. CONTEST sont habilités à réaliser la maintenance de cet appareil. Contactez un service technique compétent pour la maintenance de cet appareil. -
Page 3: Caractéristiques
SFX-HO150W - 150W Horiziode projector with white LED English 2 - Caractéristiques Optique Additional information: › 1 x 150W COB Warm White 3200°K LED › Power supply: 100-240V/50-60Hz › Light output of 530 Lux at 4m › Power consumption: 180 W ›... - Page 4 SFX-HO150W - 150W Horiziode projector with white LED English Filter holder DMX input/output Allows you to add a colored filter and colorize your beam. 3 and 5-pin XLR plugs hardwired as follows: - Pin 1: Mass - Pin 2: Negative signal Rotative shutters - Pin 3: Positive signal Allow you to adjust the light output from the projector.
- Page 5 SFX-HO150W - 150W Horiziode projector with white LED English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display will indicate: Initialisation... The projector initialises the functions of the internal program. It will then enter standby mode and indicate: XX°C Standby XX°C...
-
Page 6: Dmx Modes
SFX-HO150W - 150W Horiziode projector with white LED English Menu Sous menu Action Auto Test Automatically tests every function of the projector. Fixture Test Manual Test Allows to manually select and test any function Fixture Use time Displays time elapsed since the first time the projector was activated. Fixture Led Temp Displays the LED temperature... -
Page 7: Dimensions
SFX-HO150W - 150W Horiziode projector with white LED English 7 - Dimensions Page 7... - Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ®...
