Control panel
Model (HCR7918ENMP)
(Without Icemaker in door)
1
2
3
4
5
6
7
14
15
16
17
18
19
20

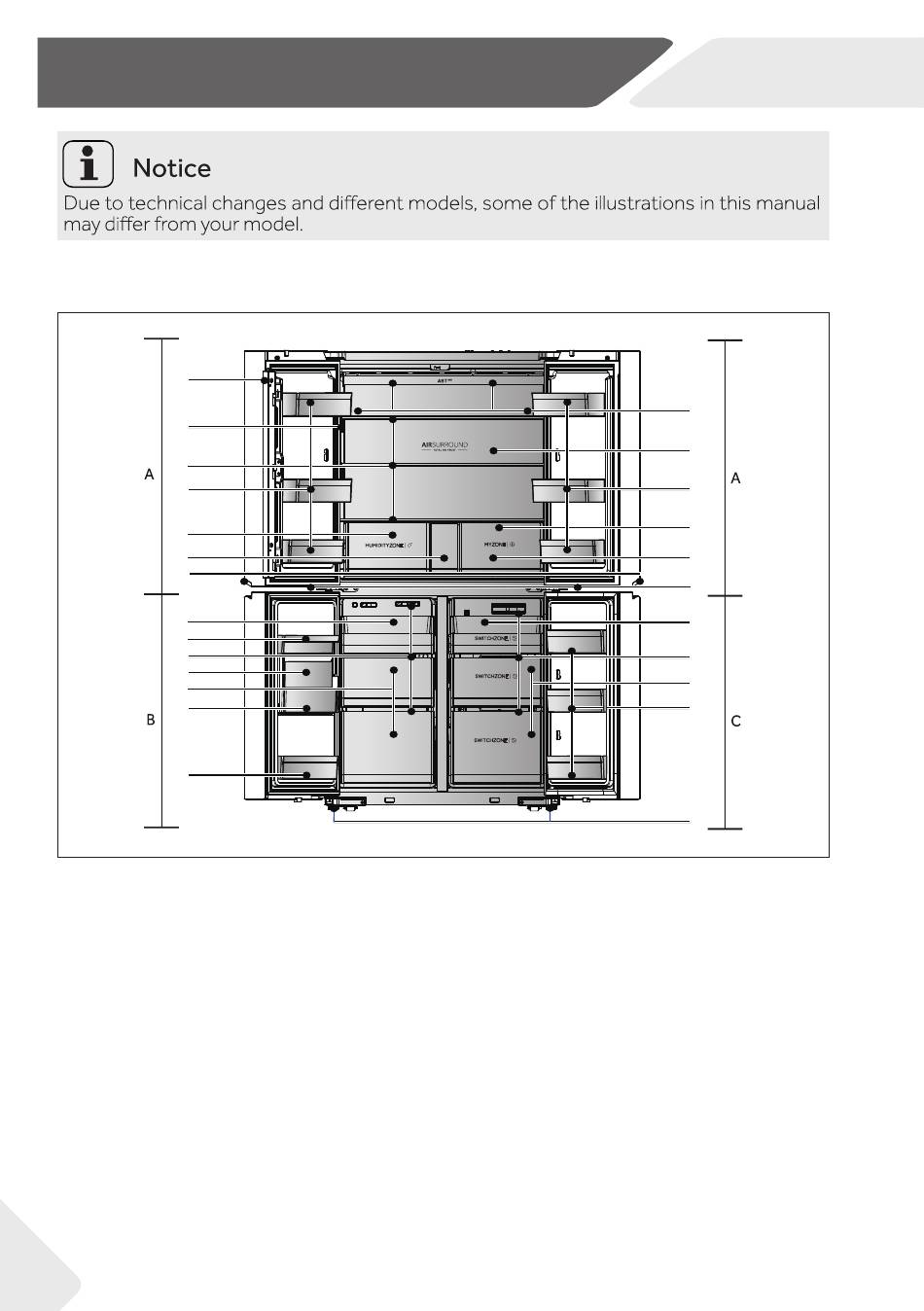

A: Fridge compartment
1 Vertical beam
2 Control panel
3 Glass shelves
4 Bottle holder/Door rack
5 Humidity zone drawer
6 Storage drawer
7 Handle lamp
8 Air duct and sensor (behind panel)
9 Back lamp
10 Bottle holder/Door rack
11 Air duct (behind drawers)
12 My Zone drawer
13 Freezer/Switch Zone lamp
12
B: Freezer compartment
14 Sliding tray
15 Water box
16 Air duct
17 Icemaker
18 Freezer storage drawers
19 Ice box
20 Bottle holder
C: Switch Zone compartment
21 Sliding tray
22 Air duct
23 Switch Zone drawers
24 Bottle holder
25 Adjustable feet
GB
8
9
10
11
12
13
21
22
23
24
25
