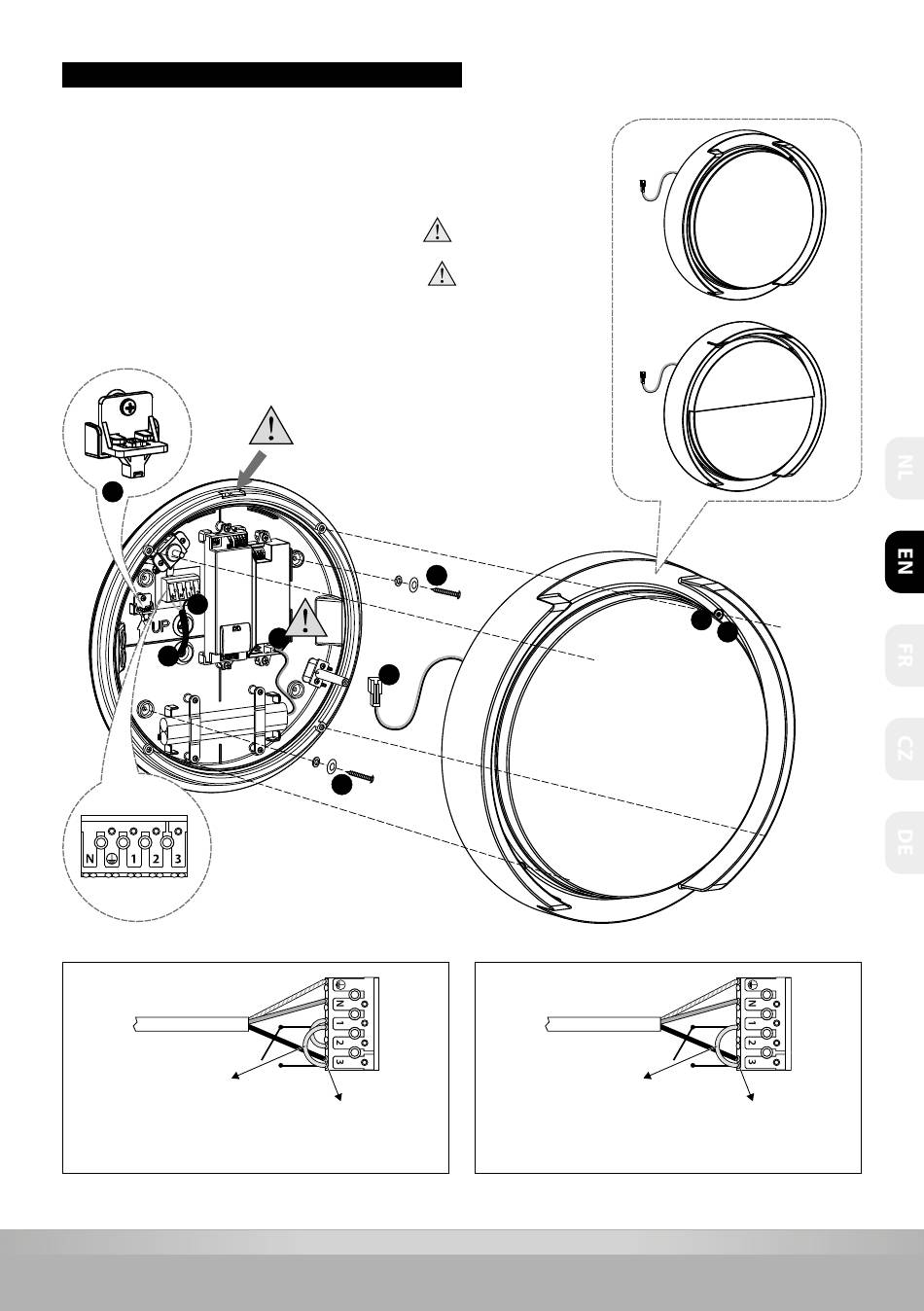

MOUNTING
1. Loosen the screws and remove the light unit.
2. Pull the power cord through the gasket.
3. Fix the fixture on the surface with screws. (Pay attention to the direction with the
marking 'UP' on the base.)
4. Connect the power cord on the terminal correctly. (Caution: The earthing cable must
be connected firmly.)
5. Connect the plug of battery onto the emergency driver firmly.
6. Connect the male connector of the light unit to the female connector on the base.
7. Assemble the light unit firmly. (Pay attention to the alignment.)
6
4
2

Cable connection

MAINS POWER SUPPLY
Remove wire bridge when externally switched
Uninterrupted mains supply (for emergency backup function)
Emergency mode version
3
5
6
3
www.prolumia.com
MAINS POWER SUPPLY
Remove wire bridge when externally switched
Uninterrupted mains supply (for emergency backup function)
Emergency mode + Sensor version
(switched phase not required)
1
7
