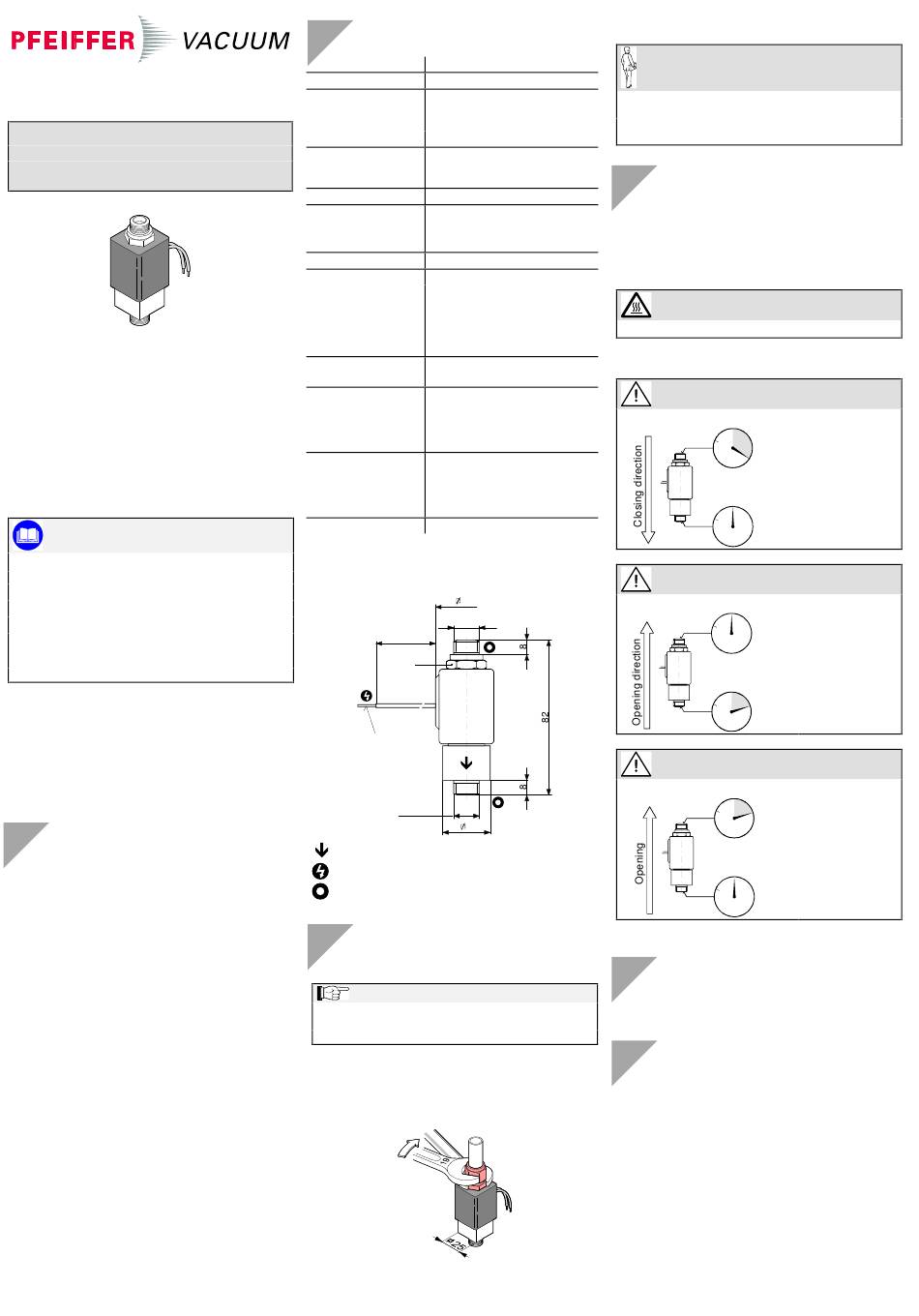

Short operating instructions
incl. Manufacturer's declaration
Mini in-line valve
electromagnetically operated (Complete valve)
DVI 005 M
BP 805 121 BN (9902)
Validity
This document applies to products with part number
PF H13 232.
We reserve the right to make engineering changes without
notice.
About this document
These Short operating instructions contain the following
sections:
• Safety
• Technical data
• Installation
• Operation
For further information please refer to the Operating manual
[1], which is separately available.
Intended use
The Mini in-line valve is predominantly used in fast-cycling
vacuum systems, e.g. for gas analysis and coating proc-
esses.
Safety
Safety information
• Adhere to the relevant regulations and take the necessary
precautions for the process media used.
Consider possible reactions between the product materials
and the process media.
Consider possible reactions of the process media due to
the heat generated by the product.
• Adhere to the relevant regulations and take the necessary
precautions for all work. Consider also the safety informa-
tion in this document.
Pass on the safety information to other users.
Liability and warranty
Pfeiffer Vacuum assumes no liability and the warranty
becomes null and void if the operator or third parties
• disregard the information in this document
• use the product in a non-conforming manner
• make any kind of changes (modifications, alterations, etc.)
to the product
• use the product with accessories not listed in the corre-
sponding product documentation
The operator assumes the responsibility in conjunction with
the gases used.
Technical data
Nominal diameter 5 mm
Vacuum connections M14×1 thread
24 VDC ±10%
Voltage
Power
10 W
Duty cycle
100% (continuous duty possible)
Type of protection IP 65 according to DIN 40 050
Conductance for air
molecular flow 0.2 l/s
laminar flow 2 l/s
Mounting orientation any
max. 300 / min. (with ∆p = 0)
Switching frequency
Cycles to first
maintenance ≈ 2,000,000
-9
Tightness 1×10 mbar l/s
-8
Pressure range 1×10 mbar ... 10 bar (absolute)
Pressure difference ∆p
5 bar
in closing direction
1.5 bar
in opening direction
Opens against a pres-
sure difference ∆p of
1 bar with 24 VDC
Closing time 7 ms
30 ms (with ∆p = 0)
Opening time
Temperatures
2)
ambiance 5 °C ... 40 °C
heat generation 60 °C (after 1¼ h continuous duty)
bakeout 120 °C (with idle coil)
150 °C (without coil)
Materials
housing stainless steel 1.4301
connecting nut stainless steel 1.4301
actuator stainless steel 1.4105
seals Viton
Weight 0.28 kg
1)
Under clean operation conditions
2)
-15 °C, if the ambiance is free of condensable gases
Dimensions
32
M14 × 1
300
SW19
2
0,38 mm
(AWG 22)
M14 × 1
25
Recommended flow direction
Electrical connection
Protective cap (vacuum connection)
Installation
Vacuum connection
Note
When working with vacuum components take the appro-
priate measures to ensure cleanliness and damage pre-
vention.
Remove the protective caps and connect the DVI 005 M to
the vacuum system via the two M14×1 threads. Pipe con-
nections and flange fittings are available as accessories (see
catalog).
Hold the valve stationary
Electrical connection
The electrical connection is established via the two open
cable ends. Adhere to the local regulations with regard to
the installation. The polarity of the 24 VDC connection need
not be taken into consideration.
Operation
The product is ready for operation as soon as it has been
installed.
The Mini in-line valve is opened by a solenoid coil and closed
1)
by a prestressed pressure spring. It closes in the event of a
power failure.
On continuous duty, the product generates up to 60° C.
Pressure range: 1×10
Maintenance ... decommissioning
See Operating manual [1].
Further information
[1] www.pfeiffer-vacuum.de
Operating manual DVI 005 M
BP 805 151 BE
Skilled personnel
Hot surface
-8
mbar ... 10 bar (absolute)
Pressure difference ∆p in closing direction
p
∆ p
∆p ≤ 5 bar
bar p + ∆ p
With ∆p > 5 bar,
the seal at the
valve plate can be
p
damaged.
bar
Pressure difference ∆p in opening direction
p
∆p ≤ 1.5 bar
bar
With ∆p > 1.5 bar,
the valve is
opened.
p
∆ p
p + ∆ p
bar
Pressure difference ∆p for opening
p
∆ p
p + ∆ p
∆p ≤ 1 bar
bar
On continuous
duty, the valve
does not open with
p
∆p > 1 bar.
bar
