75 Series Installation

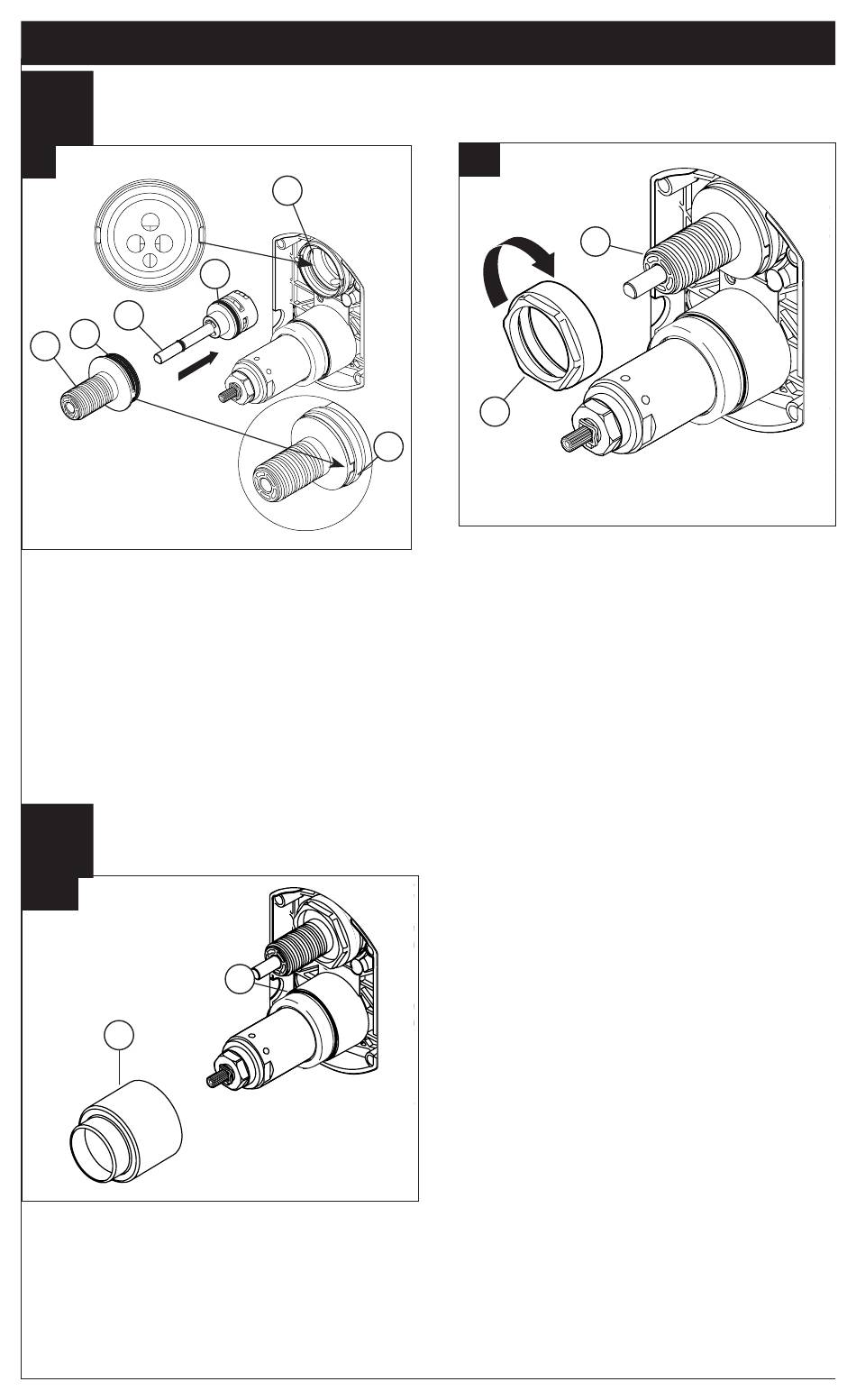

Diverter Cartridge Installation
2
A.
1
4
3
FOR DIVERTER CARTRIDGE INSTALLATION:
Apply silicone lube to the o-ring (2) to make
the diverter sleeve (3) easier to install diverter
cartridge.
Rotate the diverter cartridge (1) so the pin is at
the bottom for proper installation.
Apply silicone lube to the o-rings (4) to make
the diverter sleeve (3) easier to install diverter
cartridge.
Align diverter sleeve so that the notches are in
the same position as the notches on rough-in
body (5).
Trim Installation
3
A.
1
Trim Sleeve Installation
Slide trim sleeve (1) over the bonnet (2),
cartridge, and rough-in body.
Ensure sleeve is properly positioned over the
front of cartridge.
93651 Rev. A
5
2
2
B.
1
5
Slip-On Installation
Slide bonnet nut (1) over diverter sleeve (2) and
thread into rough-in body.
Hand tighten securely.
4
2
