DS001 RX MULTI
V02
In compliance with DIRECTIVE 2014/53/EU
MANUAL RX MULTI 433 TO 900 MHz

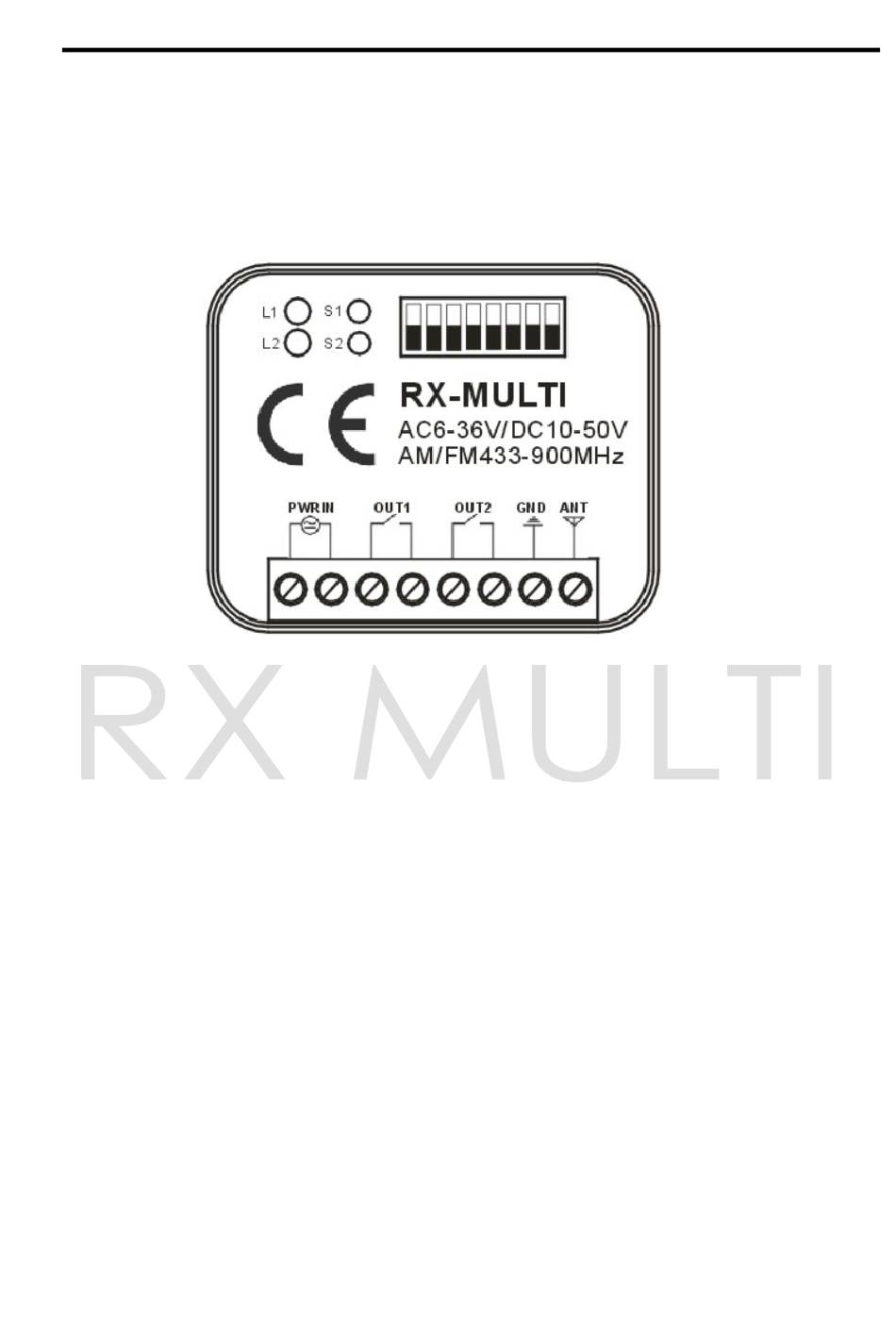

1. RX Multi drawing
2. Brand selector
With the 8 DIPs selector, the user can make different combinations for
different remote brands. The brands selection is shown below in table 1.
3. Learn Button and LED
In RX Multi receiver, there are 2 independent channels. Each channel has
independent learn button S1 and S2, and their corresponding LEDs L1 and L2.
This receiver can memorize up to 250 remotes per channel.
• Channel 1 and 2 are set as monostable, the output is activated for
0.5 seconds.
4. Exchangeable Memory Card
The memory card can be removed from the board to be inserted in a
different receiver; this way the user can preserve all the remotes learned in
the memory card.
