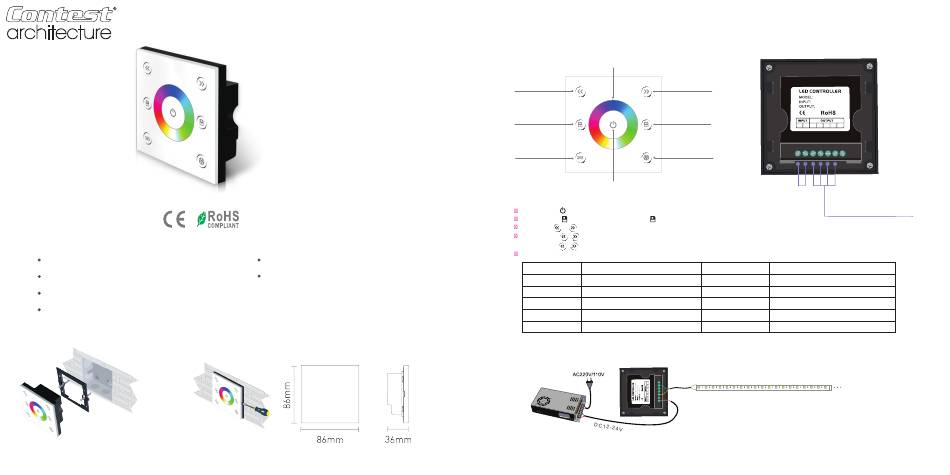

PILOTdrive-3 MKII touch panel user guide
1. Technical Specs:
Input Voltage:
12-24V
dc
Load Current:
4A 3CH
×
Max 12
Max Output Power:
144W/288W(12V/24V)
Working Temp.:
-20℃~55℃
2. Installation Instruction:
PILOTdrive-3 MKII
Dimensions:
L86×W86×H36(mm)
190g
Weight(G.W .):
A
3. Product Size:
4. Key Functions:
Touch Circle
Speed/
Speed/
Brightness+
Brightness-
8 level
Scene 1
Short press to
delay 30S off
(Long press to cycle)
Long press to enter
learning status
ON/OFF
Long press
to turn on/ off the buzzer.
Short press
to call scene, long press
to save scene.
Hold the ,
keys for 2 second, the controller will restore defult and restart automaticallly.
Short press
,
key under static to adjustable brightness;
short press
,
key under dynamic to adjustable speed, long press the brightness.
RGB MODE:
NO.
MODE
1
RGB CHANGE
3
WHITE FLASH
5
COLOR FADE
7
RB FADE
9
WHITE FADE
6. Wiring Diagram:
Power Supply
5. Green Block:
8 level
PILOTdrive-3 MKII
DC12V-DC24V
4A× 3CH
Scene 2
DC-
DC+
V+
R
G
B
Mode Key
LED lamp
Power input
Connected Socket
Socket
NO.
MODE
2
COLOR CHANGE
4
RGB FADE
6
RG FADE
8
GB FADE
10
ALL MODE CYCLE
RGB L ED strip
www.contest-lighting.com
