Thick Door Kit Installation Instructions

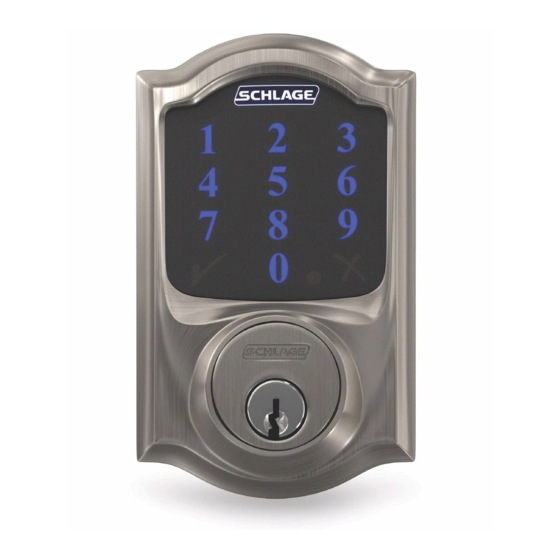

Touchscreen DeaDbolT wITh alarm | moDel be469
This kit is used to fit the Touchscreen Deadbolt with Alarm and the Connected Touchscreen to doors that are between 1M\," and 2Z\v" thick.
L If you are uncomfortable performing these steps, call a locksmith for assistance.
1
Determine the thickness of your door.
2
choose screws and Tailpiece length
2a select the screws using the chart below.
Door
Thickness
2Z\," - 2Z\v"
1M\," - 2"
2b select the tailpiece length, using the chart below.
Door
Thickness
2Z\," - 2Z\v"
1M\," - 2"
3
replace the Tailpiece
3a remove the cylinder screw from the Touchscreen.
Door Thickness
1M\," to 2Z\v"
screw length
(actual size)
Tailpiece length
(actual size)
Break off and discard
connecTeD Touchscreen | moDel be468
3b remove the cylinder from the Touchscreen.
3c remove the cylinder cap, washer and tailpiece.
Use a paperclip or similar to press and hold down the
pin. Then unscrew the cap. The washer and tailpiece
can then easily be removed. Leave the pin in place.
3d Install the new tailpiece, washer and cylinder cap.
3e Install the cylinder back into the Touchscreen.
Cap
Pin
Using the original washer and
cylinder cap, reinstall all pieces and
screw the cap into place. Do not
overtighten the cap!
Washer
Tailpiece
