Animo ComBi-line CB 1x5 Manuel page 26

01 / 2006 (rev 2)
F1
Conn. 1
s. coffee
F2
s. boiler
cont. h. l
cont. h. r
Conn. 2
RL1
RL2
Conn. 3
RL3
RL4
RL5
Conn. 4
26

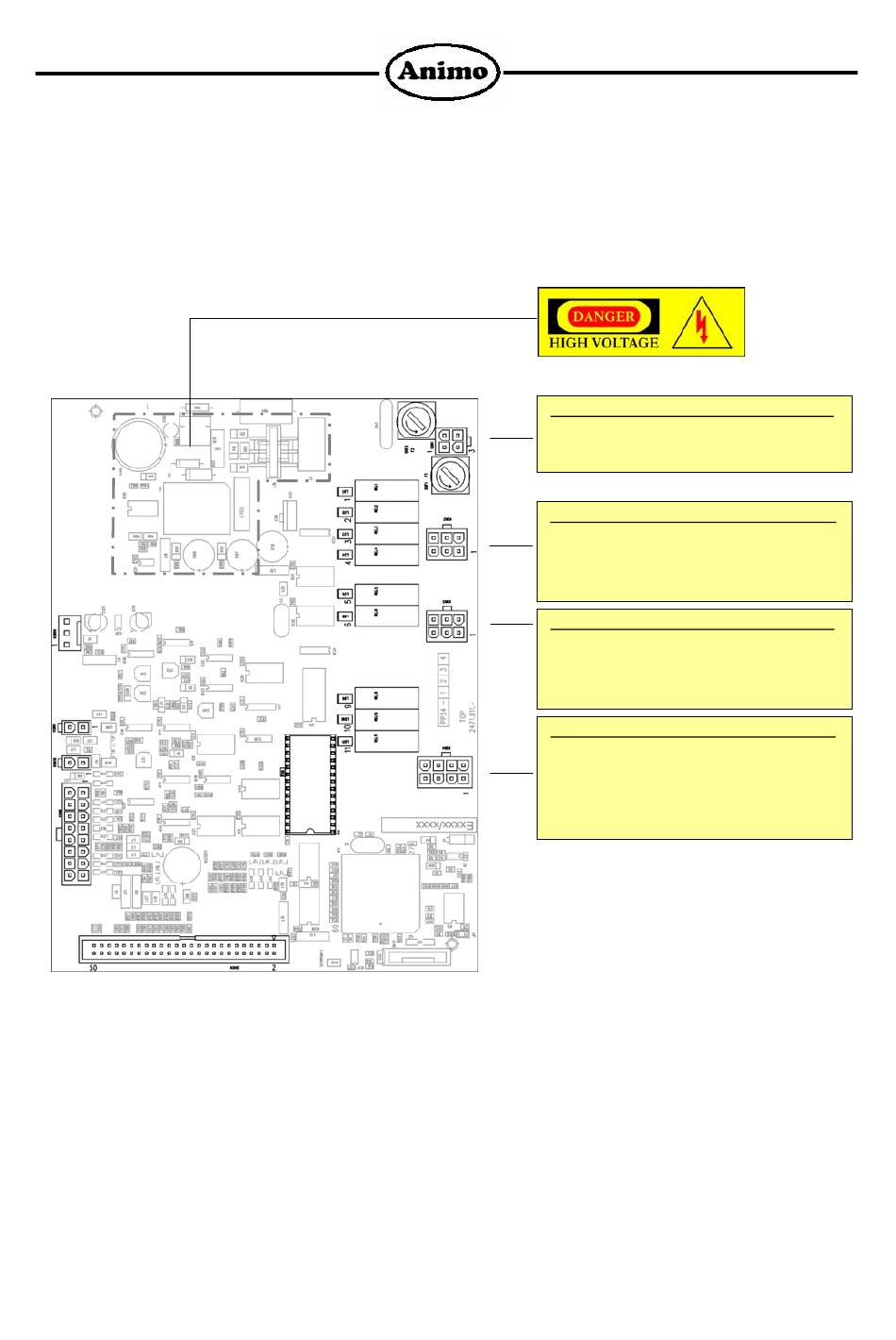

CONN. 1 POWER SUPPLY 230VAC
1 - 230VAC ~50HZ N
2 - 230VAC ~50HZ L (F1)
3 - 230VAC ~50HZ L
4 - HEATING COFFEE CONTAINERS (F2)
CONN. 2 230VAC SOLENOID & HEATERS COLOUR
1 - HEATER COFFEE CONTAINER RIGHT OUT
2 - N.C.
3 - COMMON 230VAC (F2)
4 - SOLENOID COFFEE OUT
5 - SOLENOID BOILER OUT
6 - HEATING COFFEE CONTAINER LEFT OUT
CONN. 3 RELAIS BOILER 24VDC
1 - N.C.
2 - N.C.
3 - N.C.
4 - COMMON 24V DC RELAIS BOILER IN
5 - RELAIS 1 BOILER 1 I/O BOARD OUT
6 - RELAIS 2 BOILER 2 I/O BOARD OUT
CONN. 4 RELAIS COFFEE 24VDC
1 - N.C.
2 - N.C.
3 - N.C.
4 - N.C.
5 - COMMON 24VDC RELAIS COFFEE IN
6 - RELAIS COFFEE 1 I/O BOARD OUT
7 - RELAIS COFFEE 2 I/O BOARD OUT
8 - RELAIS COFFEE 3 I/O BOARD OUT
ComBi-line Manuel de Service
COLOUR
- BLUE
- BLACK
- BLACK
- BROWN
- WHITE
- BROWN
- BLACK
- GRAY
-YELLOW
COLOUR
- BLACK
- YELLOW
- WHITE
COLOUR
- BROWN
- RED
- GREEN
- ORANGE
