Animo ComBi-line CB 1x5 Manuel page 25

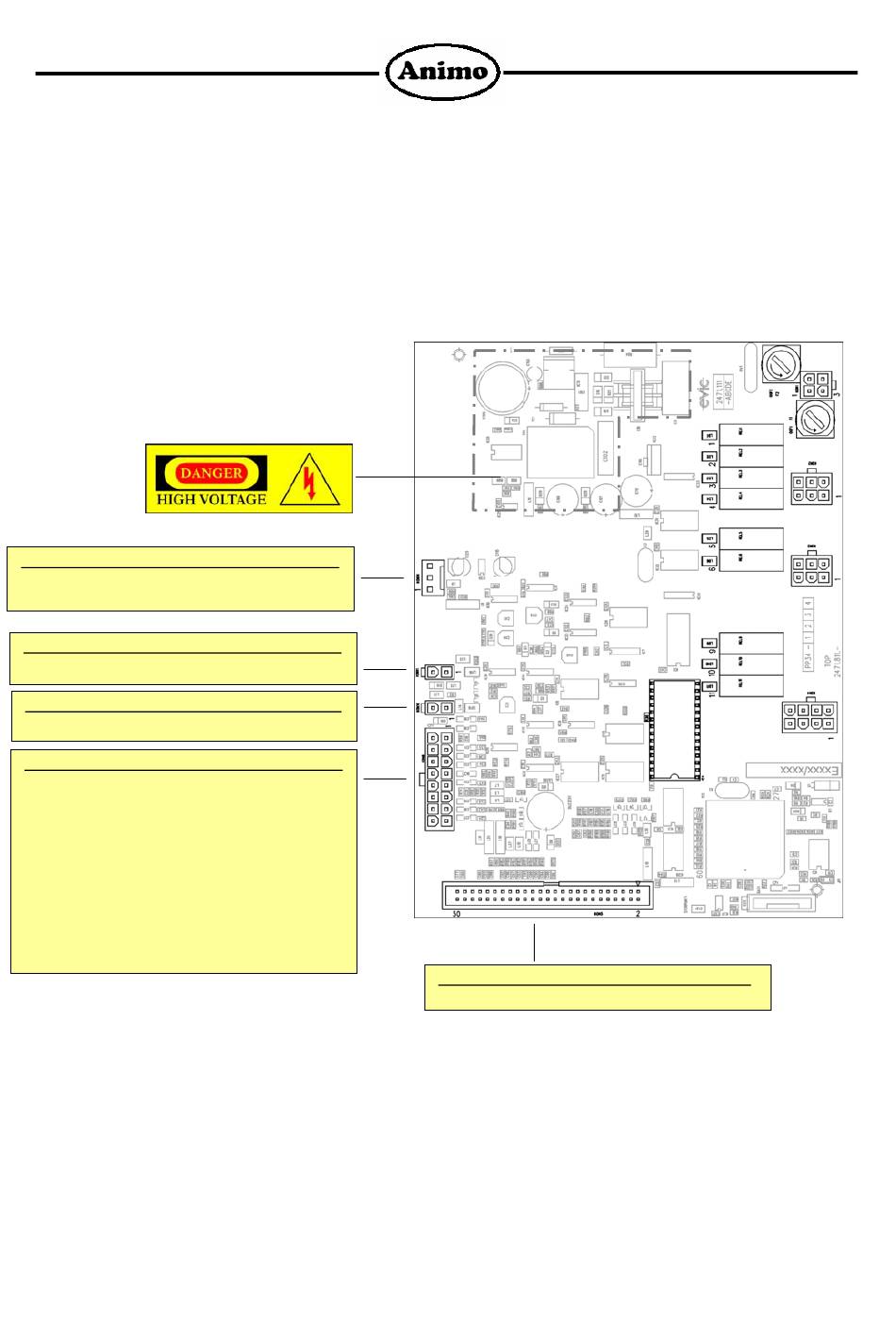

CONN. 14 FLOWMETER
1 - VCC +5V DC
2 - PULSE
3 - PGROUND
CONN. 11 BOILER POWER RELAIS 24VDC
1 - RELAIS BOILER PP34 OUT (ground)
2 - COMMON RELAIS BOILER I/O BOARD OUT (+)
CONN. 10 COFFEE POWER RELAIS 24VDC
1 - RELAIS COFFEE PP34 OUT (ground)
2 - COMMON RELAIS COFFEE I/O BOARD OUT (+)
CONN. 8 INPUTS
1 - REED SENSOR CONTAINER LEFT
2 - LEVEL SENSOR COFFEE MAX
3 - LEVEL SENSOR COFFEE GROUND
4 - LEVEL SENSOR COFFEE MIN
5 - LEVEL SENSOR BOILER MAX
6 - LEVEL BOILER GROUND
7 - LEVEL SENSOR BOILER MIN
8 - TEMP SENSOR NTC
9 - BOILER DETECTION
10 - REED SENSOR SWIVEL LEFT
11 - REED SENSOR SWIVEL RIGHT
12 - A_GROUND NTC/ BOILER DETECTION
13 - REED SENSOR CONTAINER RIGHT
14 - N.C.
15 - N.C.
16 - PGROUND REED SENSOR CONTAINER/ SWIVEL
01 / 2006 (rev 2)
Conn. 14
COLOUR
- BROWN
- WHITE
- BLACK
COLOUR
- BROWN
- GRAY
COLOUR
- BROWN
- BLACK
COLOUR
- YELLOW
- WHITE
- GREEN
- BROWN
- ORANGE
- GREEN
Conn. 8
- BROWN
- VIOLET
- ROSE
- WHITE
- YELLOW
- VIOLET/ROSE
- WHITE
- BLACK
25
Conn. 11
Conn. 10
Conn. 5
CONN. 5 OUTPUT PP39
1 – 50 DATALINES
ComBi-line Manuel de Service
COLOUR
- GRAY
