Assembly Instruction - Drive RTL10275 Instructions

Footrest pad
1. Remove contents from box.
2. Pull legs in opposite direction
until locking button "snaps"
into locking receiver. (see
figure A).
3. Attach digital display to the
peddler by sliding the loop
over the tension knob recep-
tacle located on the clasp
on the back of the display
attaches to the peddler fra-
me. (see fig. B)
Attention: Only at-
tach the multi-fun-
ction display to this
adhesive label!
4. Insert tension knob on top of
peddler and turn clockwise
to tighten. The tension knob
will increase/decrease the
amount of tension on the
peddler. Tighten/loosen to a
level that feels of tension on
the peddler. Tighten/loosen
to a level that feels.

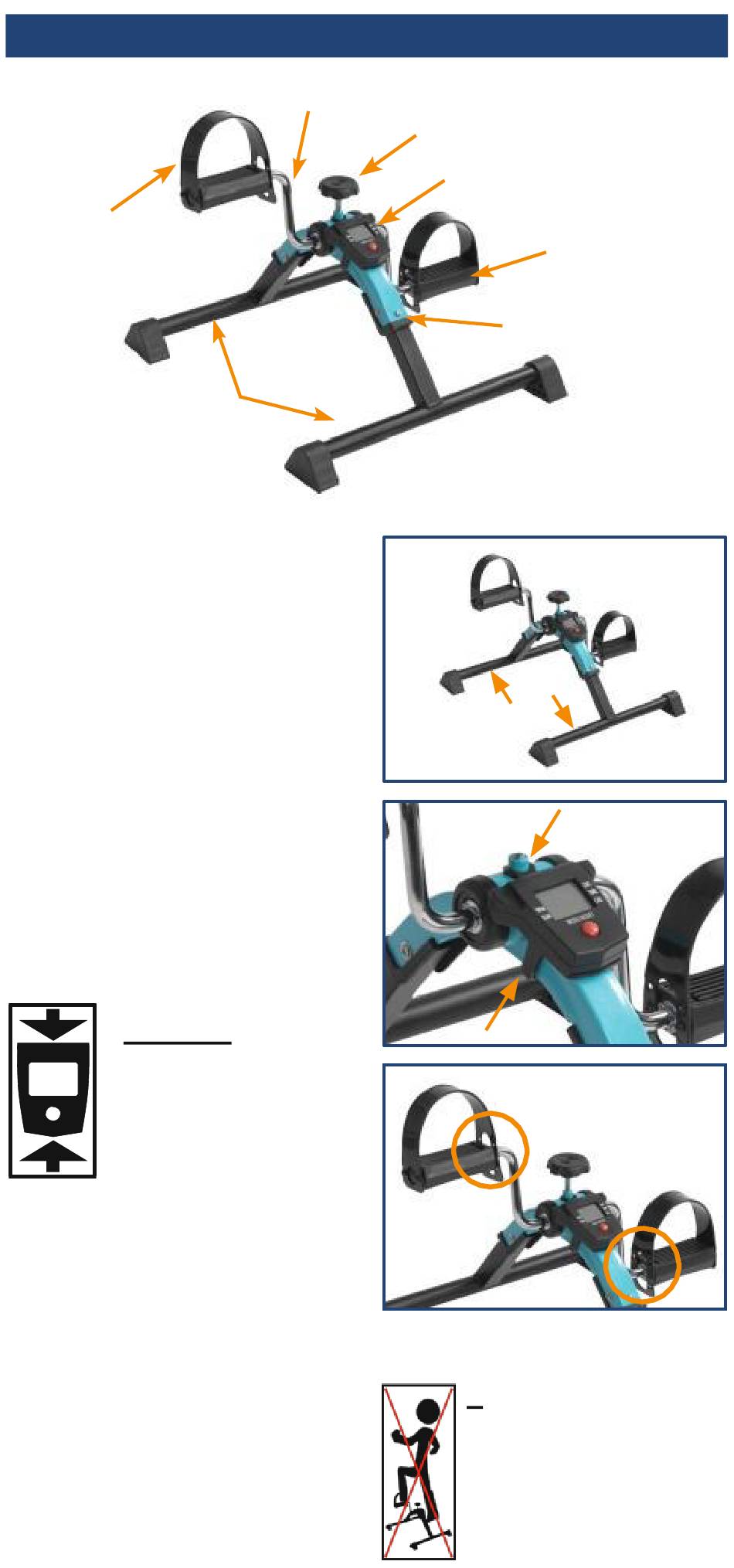

assembly instruction

Swivel shaft
Legs
Tension knob
Digital Display
Hinge
Attention: Do not stand
on the pedal trainer! Do
not put too much weight
on the pedals, otherwise
the pedal trainer may be
damaged
Footrest plate
figure A
figure B
figure C
