INSTALLATION INSTRUCTIONS

1. Install the interactive-whiteboard / screen first except when:
a. A low ceiling dictates the maximum board height. The wall plate must be installed
first as close to the ceiling as possible.
b. Wall studs limit the placement of the wall bracket. The wall plate must be
installed to a load-bearing stud first.
When you mount the Interactive Whiteboard use the following guideline for height.
Board size (diagonal)
77"
64"
48"
2. Mark the position of the wall plate. Be careful to consider the distance between the
wall plate and the top of the board and make sure the projector lens is in the centre
of the screen. A paper template is included to help. Below is further information:
HiTACHi
For the CP-A100 / ED-A111 / CP-A52 attach the wall plate 100mm right-of-centre
as you look at the wall, and about 200mm above the top of the board/screen
depending on the size of board.
For the CP-D10 / CP-DW10N / CP-AW100N attach the wall plate 35mm right-of-
centre as you look at the wall, and about 350mm above the top of the board/screen
depending on the size of board.
SANyO & EPSON
For the Sanyo PLC-XE50 / XL-50 / XL-51 & Epson EMP-410 attach the wall plate
80mm left-of-centre as you look at the wall, and about 350mm above the top of the
board/screen depending on the size of board.

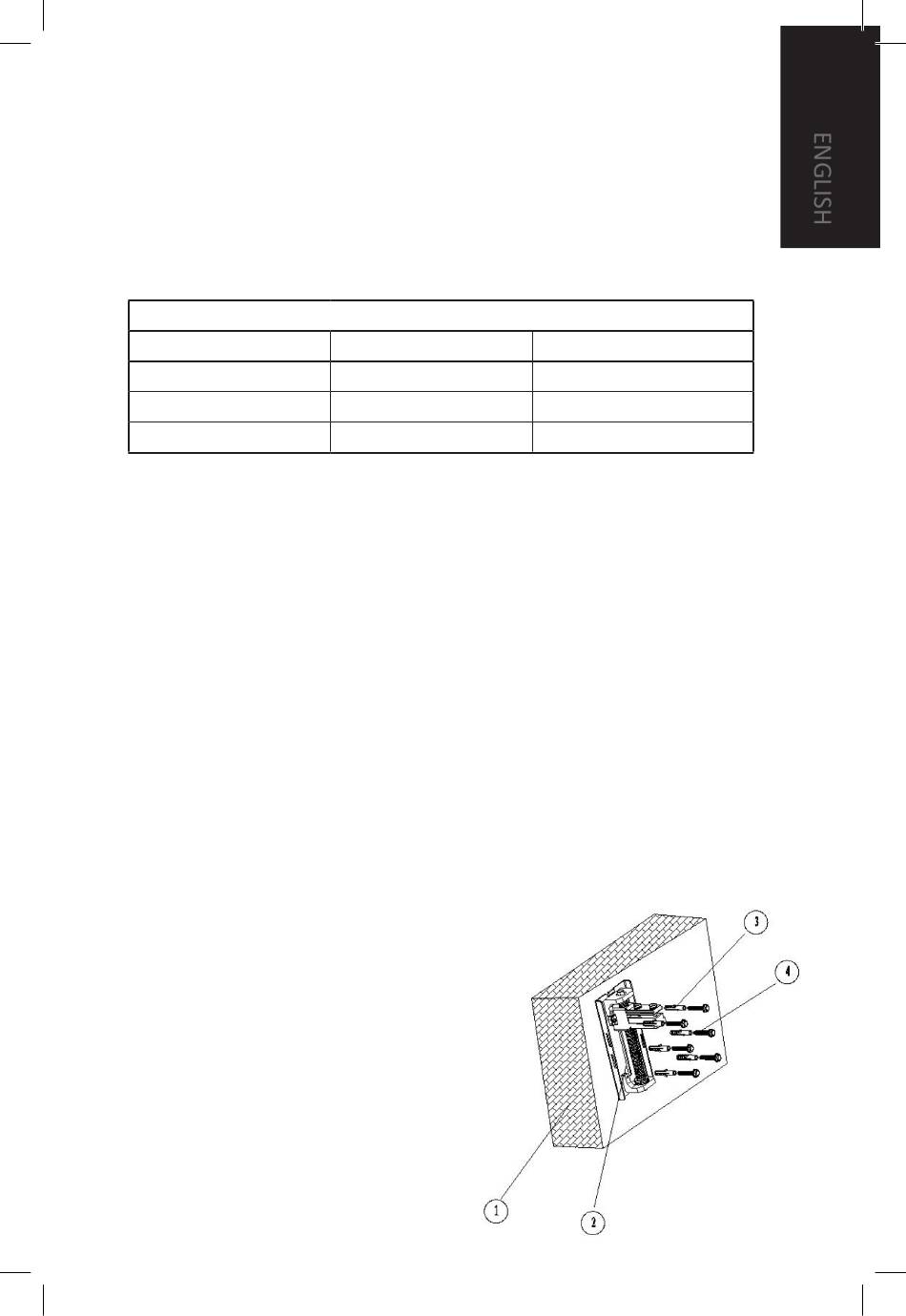

3. Attach the wall plate to the wall using six appropriate fixtures.
1. Wall
2. Wall plate
3. Rawl plugs
4. ST8 Bolts
Distance from Floor to TOP of whiteboard
For Children
162cm
154cm
142cm
For Adults
208cm
188cm
187cm
