4.3 INSTALLATION OF FORT GEARMOTOR

4.3.1 INSTALLATION

• Perform the manual unlock procedure as described in section 4.3.3.

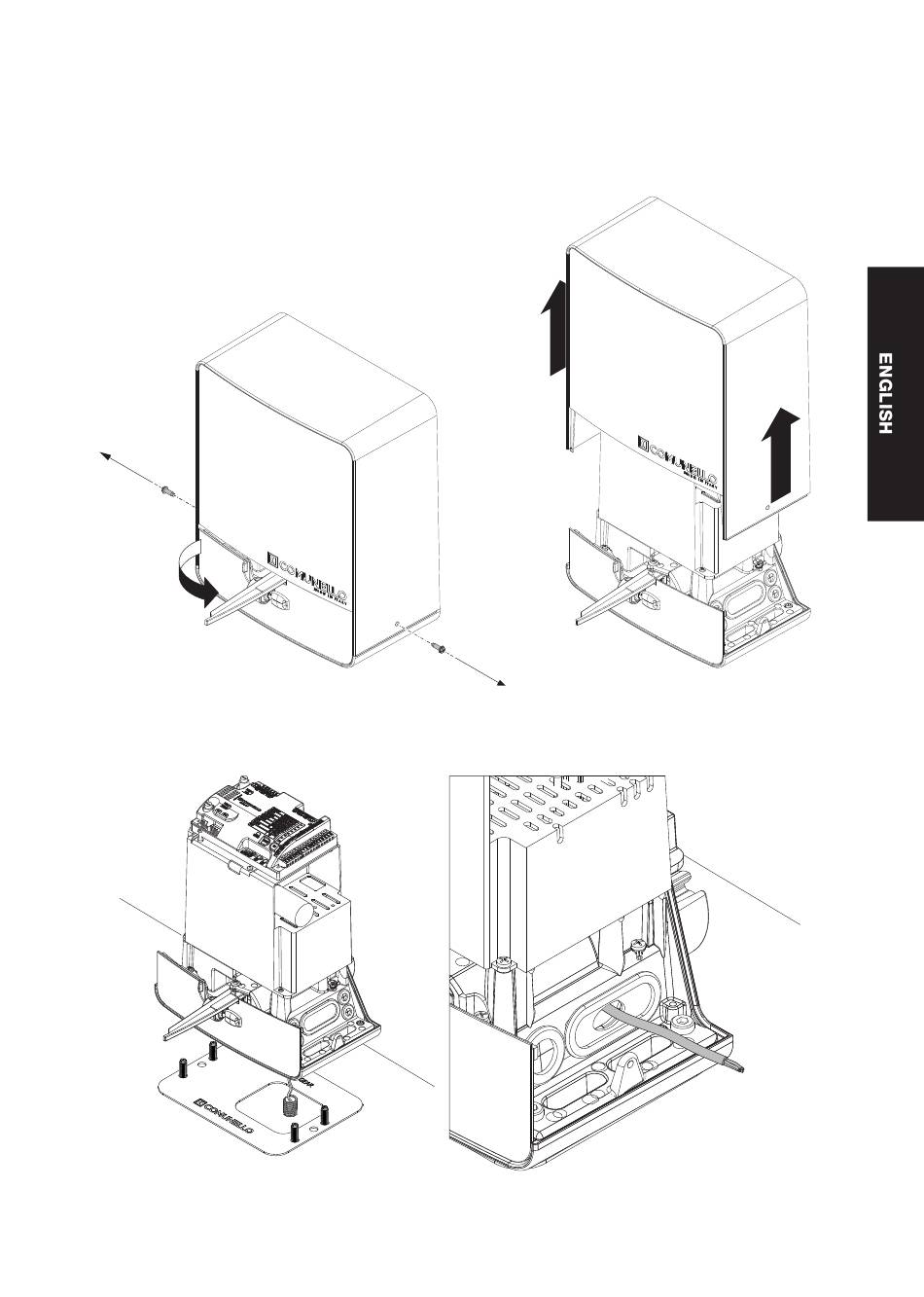

• Unscrew the two side screws and pull the protective panel upwards (FIG. 4).
FIG. 4
3
3
2
1
2
• Lay the gearmotor on the backplate, passing the power, control and accessory cables through the grommet (FIG. 5).
ENSURE THE CABLES ARE NOT CRUSHED WHEN PASSING THEM THROUGH THE BASE AND MOTOR.
FIG. 5
