Assembly Instructions - Seasons Sentry UMB-956815 Manuel D'assemblage

Assembly Instructions

CAUTION: Do not use sharp tools or equipment such as a knife or scissors when
removing the protective material, as it may damage the product. Be careful not to
throw away small parts such as bolts, washers, etc. that may be wrapped in the
protective materials.

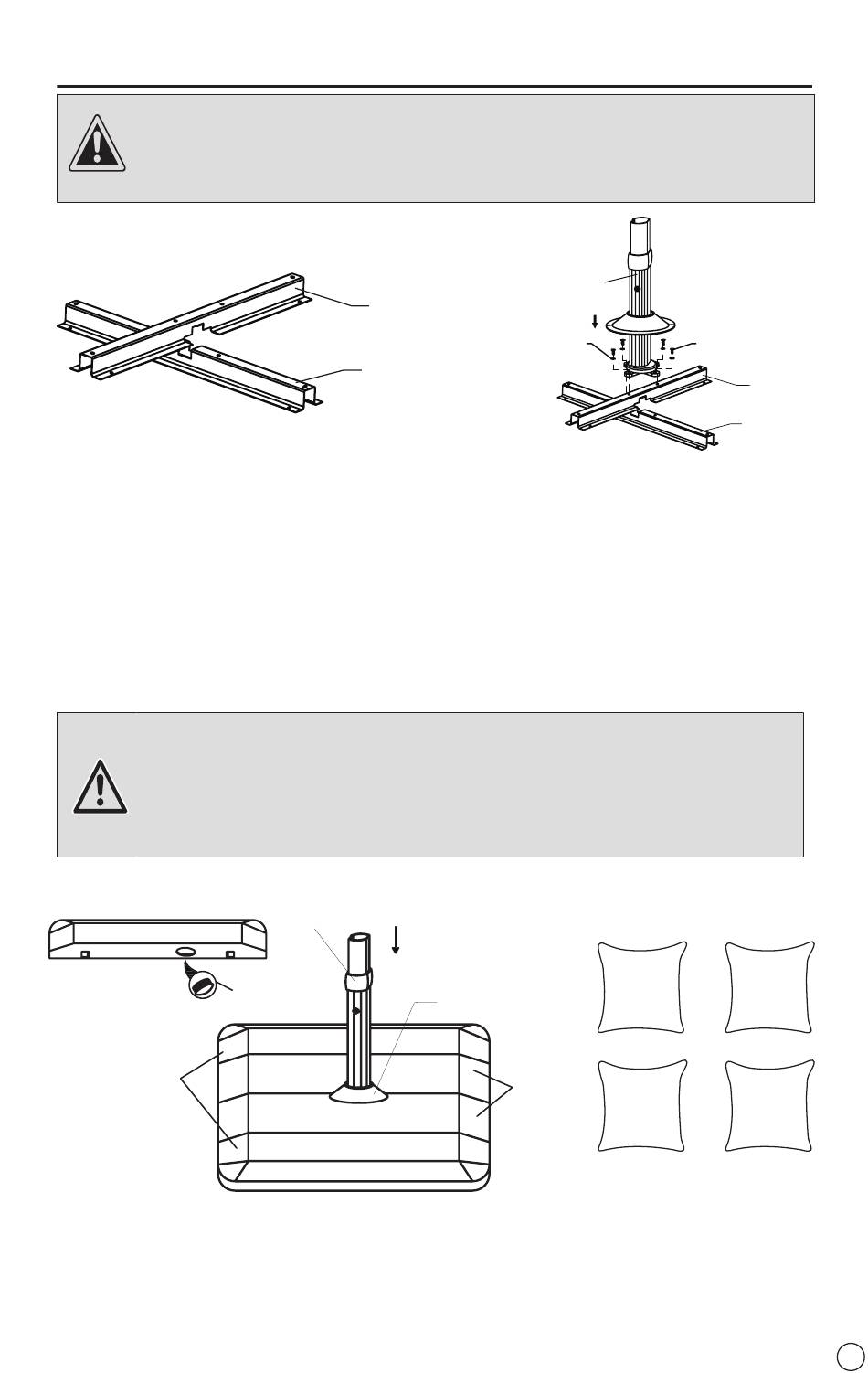

Step 1: Place lower cross leg (C) on
ground, line up notches and place upper
cross leg (D) over lower cross leg (C).
WARNING: Before opening umbrella, complete assembly as instructed in
manual. Fill each section of base with sand. Add WATER to wet the sand and
continue to fill each section with water up to top. Cover hole with cap. It is
recommended at least 91 kg (200 lbs) of weight be placed on cross legs to
ensure stability. Failure to do so will result in a weight imbalance and cause
umbrella to tip, causing damage and/or personal injury.
A
Step 3: Fill each base (A & B) with sand, cover with cap (M). Place pole support cup (L)
onto holder pole (F) and lay on top of blow molded base (B).
D
C
F
M
HH
Step 2: Attach holder pole (F) to base by
using bolts (GG) and washers (HH) (found
in blister pack). Be careful not to over
tighten. Adjust holder pole (F) to be sure
it is positioned correctly on base. Finally,
tighten with adjustabe wrench or open-
end wrench (not included).
L
B
4
F
GG
D
C
Sand (4 bags)
22.75 kg 22.75 kg
50lbs 50lbs
22.75 kg 22.75 kg
50lbs 50lbs
91 kg / 200 lbs
E
