CAUTION: At least two installers are
required due to the weight and size of the
hood.

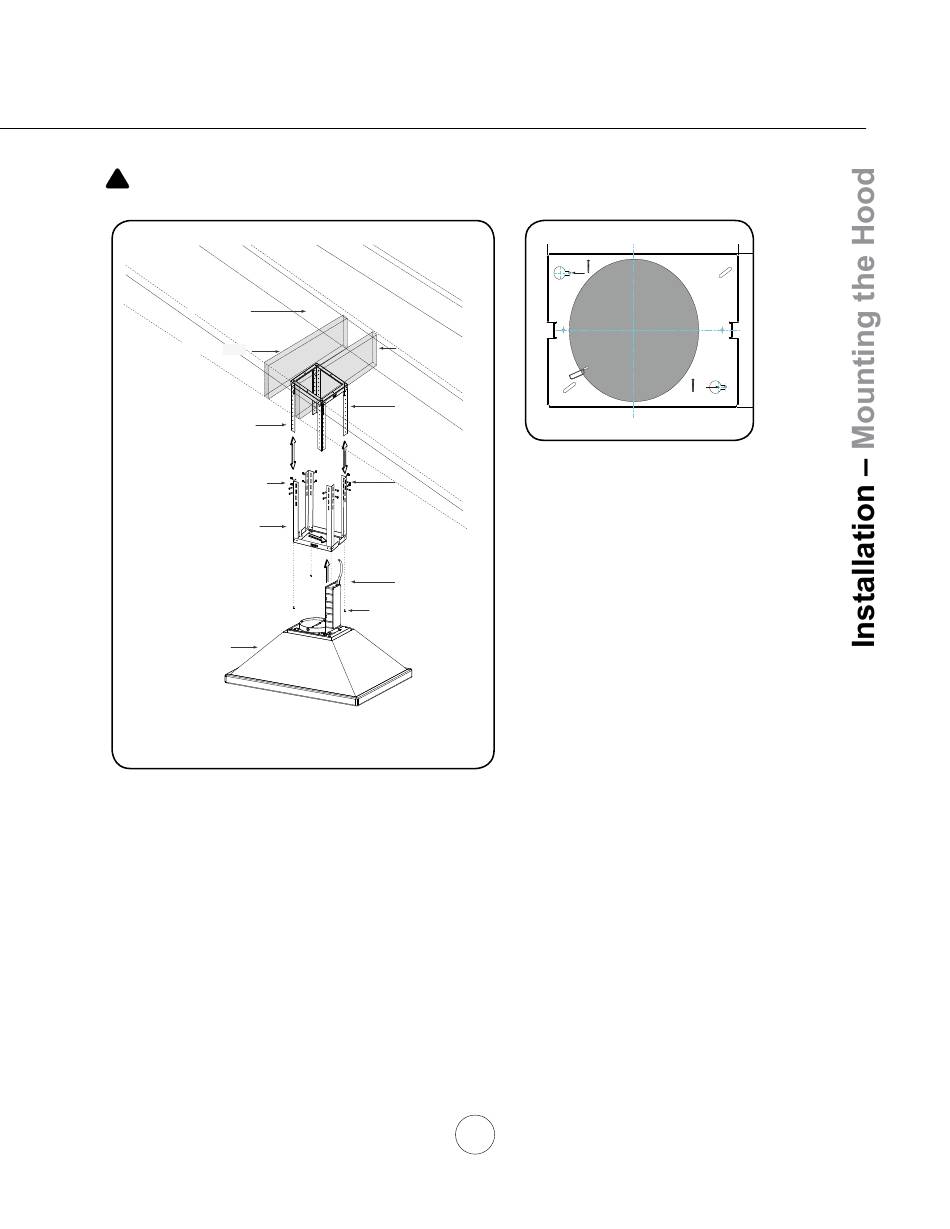

Ceiling Joists
Wood Blocking
Top Support Frame
Support Frame Arm
Bottom Support Frame
Hood Body
FIG. A
1. Determine mounting location on ceiling and temporarily tape paper template (included with the hood) to
the ceiling. Cut out internal shaded area of template to allow the ducting and electrical to pass through.
If necessary, add wood blocking (min. 2" x 4") to ceiling joists located behind the drywall to reinforce the
mounting location*. (FIG. A1) Secure (2) M6 x 2" wood screws with washers to points A and B of the paper
template (FIG. B). Do not completely tighten screws, leave approx. 1/4" exposed.
2. Remove screws securing top and bottom support frames together. Adjust support frame to accomodate the
desired hood height and re-assemble the frame using the previously removed screws (4 screws for each
support frame arm). (FIG. A3)
*Hood is intended to be mounted to a finished ceiling.
1
2
3
4
Mounting Screws
(pre-installed)
9
FRONT
B
A
Cut-Out Shaded Area
XP022220
FIG. B
