HUBITOOLS HU31010 Manuel D'instructions page 12

Meter Functions-Dwell (
DWELL"
Select the "
Insert:
COM
 Black lead in
V-Ω-RPM
 Red lead in

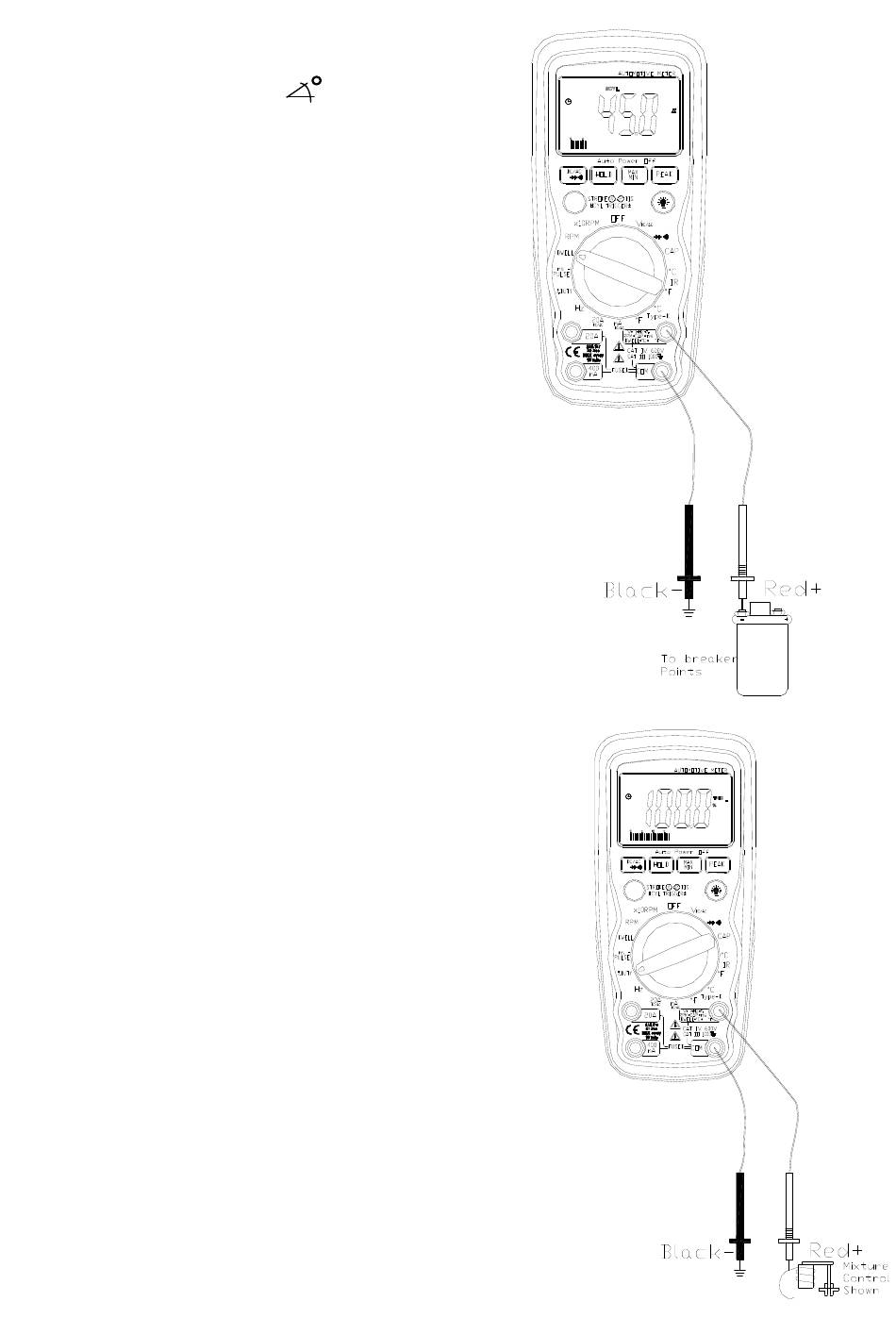

Connect the Black test probe to ground.
Connect the Red test probe to the wire that connects to the
breaker points (see illustration).
Meter Functions-Duty Cycle (%)
Duty" Cycle
Select the "%
Insert:
COM
 Black lead in
V-Ω-RPM
 Red lead in
Connect the Black test probe to ground.
Connect the Red test probe to the signal wire circuit.
The illustration for a mixture control solenoid is shown with the metering rod
in the closed position. The meter will display the percentage of time the
plunger is in the closed position. (low duty cycle) during one duty ycle.
)
function with the rotary switch.
terminal.
terminal.
function with the rotary switch.
terminal.
terminal.
Ω
Ω
Ω
Ω
