The Red probe to the side of the circuit closest to the power source.
The Black probe to the side of the circuit to ground.
Turn the power ON and test.
Meter Functions –Temperature (℃/
IMPORTANT: To avoid heat damage to the meter, keep it away from
sources of very high temperature. The life of the Temperature
Probe is also reduced when subjected to very high temperatures.
Probe operating range is
o
o
–58
to 482
F.
emperature
Select the T
0
"℃or
F" function with the rotary switch.

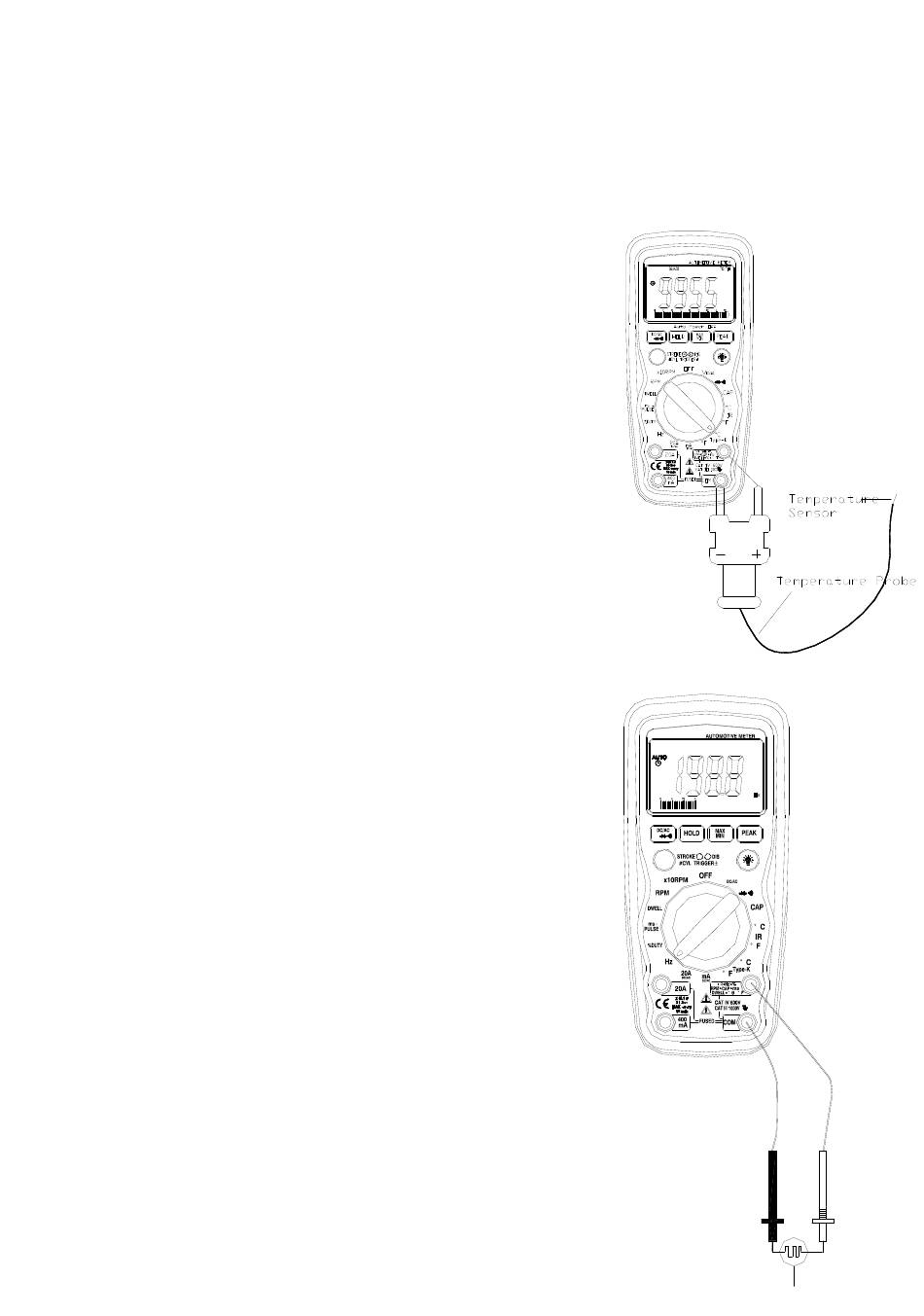

Insert the temperature probe connector into the K-type thermocouple
adapter. Insert the adapter into the front of the meter as shown.
ouch the end of the temperature sensor to the area or surface of the object
to be measured.
Meter Functions –Frequency(Hz)
Frequency
Select the "Hz"
function with the rotary switch.
Insert:
COM
Black lead in
terminal.
V-Ω-RPM
Red lead in
Connect the Black test probe to ground.
Connect the Red test probe to the "signal out" wire of the sensor to be
tested.
terminal.
Note:
Current
measured with the meter test
probes connected in series,
as described.
0
F )
must
always
be
Ω
Ω
Auto Power Off
Ω
4
2
V
Ω
V
Black-
"Signal Out"
Side
"Voltage In"
Side
Red+
Ground
Side
