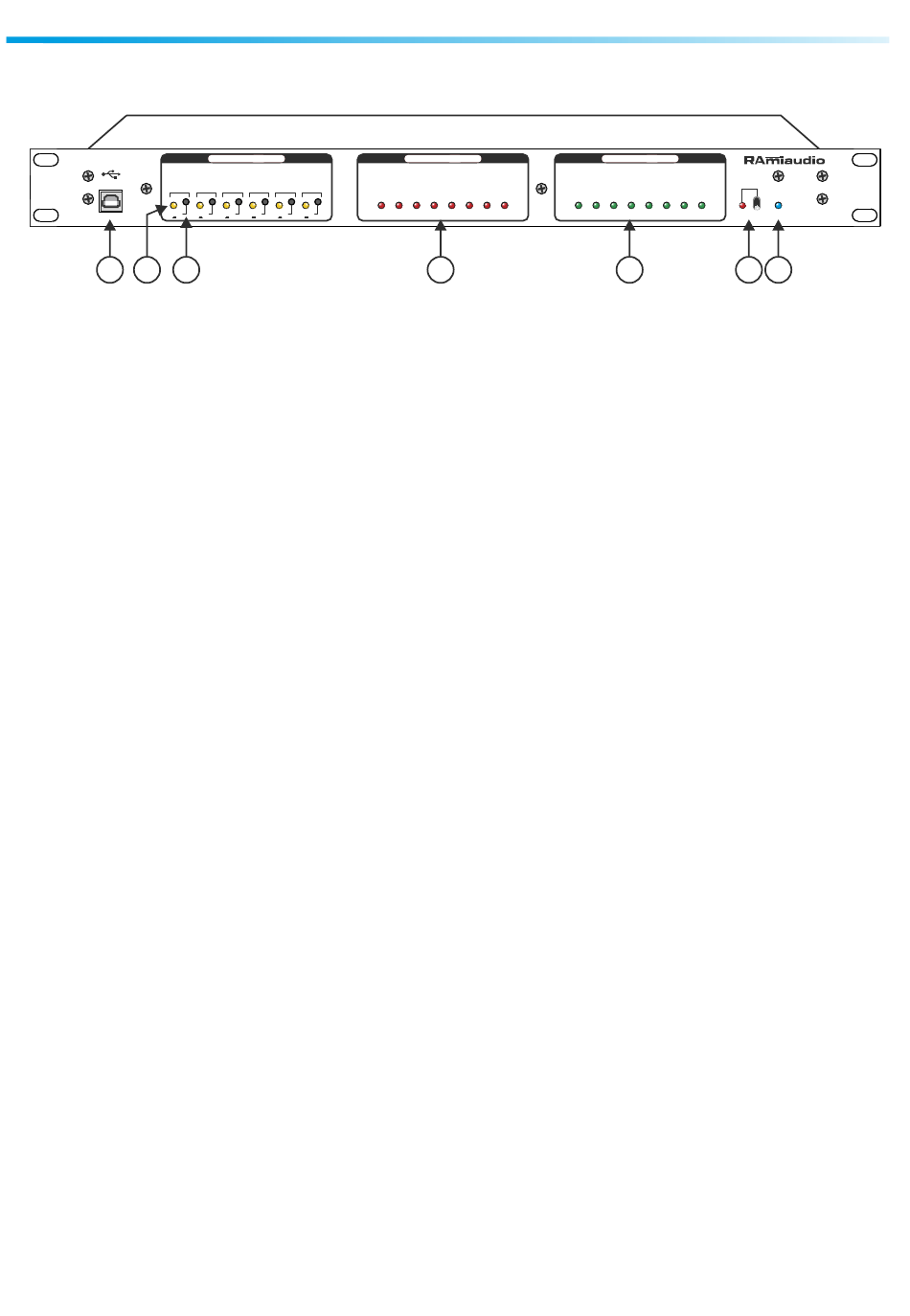

FRONT PANEL

MICROPHONES GPI GPO
FACTORY
IP

1 2 3 4 5 6
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
ON
Earth lift Earth lift Earth lift Earth lift Earth lift Earth lift
1 2 3 4 5 6 7
1 : USB socket to update firmware .
2 : Yellow lights allowing the visualization of an audio presence on the microphone inputs.
3 : Switch allowing to separate the ground of the inputs and the housing (earth connexion
4 : Red lights allowing the visualization of active GPI inputs.
5 : Green lights allowing the visualization of active GPO outputs.
6 : Loading the default IP configuration (IP: 192.168.0.60).
7 : Blue power light on the device.
Rami IMV600
23
