Typical Wiring
17

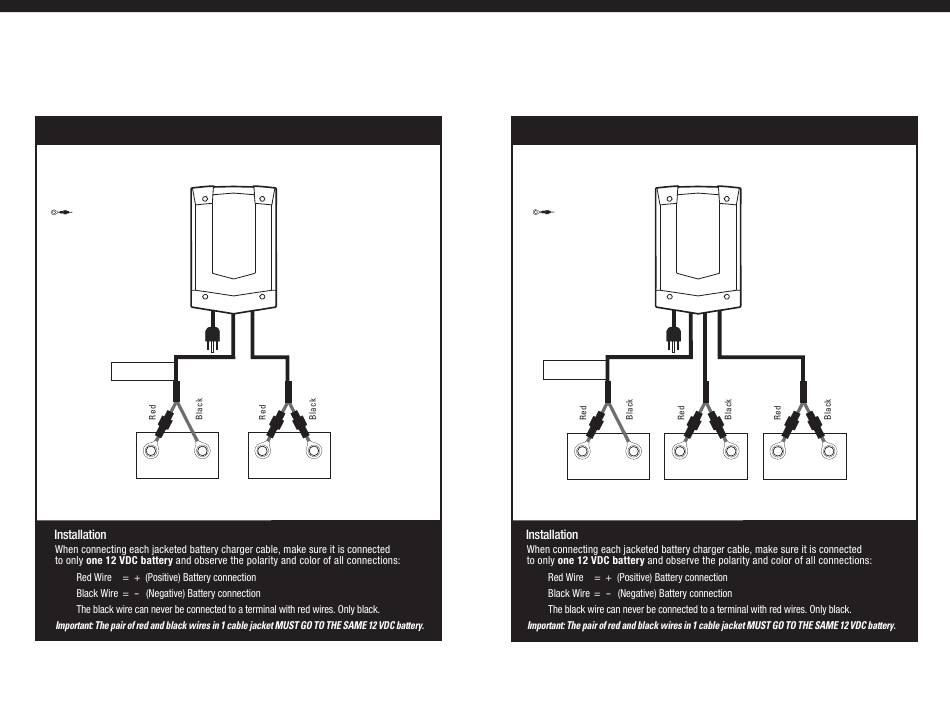

Fig. 4 ProMar1 DS 4/4 and 5/5 Dual Bank Charger for 2 12V Batteries
12 VDC Trolling Motor or House Battery Configuration with a Dedicated 12 VDC
Engine Start Battery
Note:
Indicates Fuse
For Engine Battery Cable 1
Use Cable 1
_
Bat 1
+
12 VDC Engine
Crank Battery
ProMar1
DS
2 Bank
Charger
Cable 2
_ Top View
Bat 2
of Battery
+
12 VDC Trolling
Motor or House Battery
Fig. 5 ProMar1 DS 4/4/4 and 5/5/5 Triple Bank Charger for 3 12V Batteries
Dedicated 12 VDC Trolling Motor or House Battery and 2 Engine Crank Batteries
Typical Configuration
Note:
Indicates Fuse
ProMar1
DS
3 Bank
Charger
For Engine Battery
Cable 1
Use Cable 1
_
Bat 1 Bat 2
+ +
12 VDC Engine 12 VDC Engine
Crank Battery Crank Battery
Typical Wiring
Cable 3
Cable 2
_ _ Top View
Bat 3
of Battery
+
12 VDC Trolling
Motor or House Battery
