HL-1D / BL-1D / TL-1D
Short Instruction Manual
Data Logger for humidity, temperature, pressure and dewpoint
(device version V4.0)
1 GENERAL DESCRIPTION

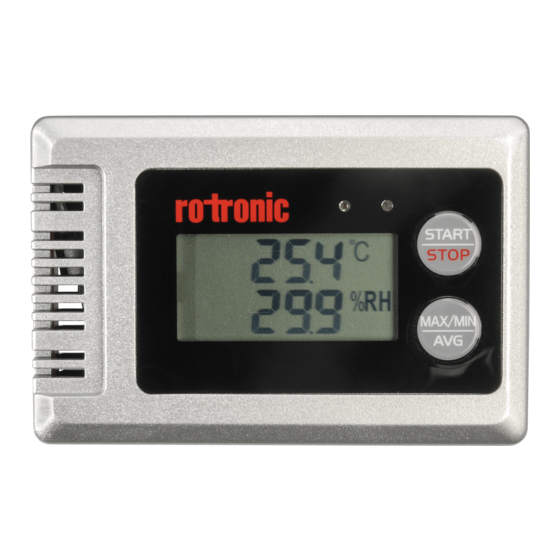

Congratulations on purchasing your new Rotronic BL-1D (humidity, temperature, pressure
and dewpoint), HL-1D (humidity and temperature), TL-1D (temperature) data logger. Please
read these short instructions carefully before using the device. These short instructions are
limited to a description of the main functions and installation of the device.
HL-1D BL-1D
Humidity x
Temperature x
Pressure
Dewpoint
Storage capacity (lines) 32,000
2 DIMENSIONS / CONNECTIONS
Type HL-1D Type BL-1D
60
USB Mini-port
(settings and data download)
Battery compartment (BAT.)
Logging interval Storage Capacity Reached After
30 sec. 11 days 2 hours
5 min. 111 days
30 min. 1 year 301 days
45 min. 2 years 270 days
60 min. >3 years
Please see also battery life time. Low battery threshold 2.6 V.
English
3 INSERTING / REPLACING THE BATTERY
The data loggers run on one CR2 battery. To insert the battery, open the BAT lid and insert the
battery with the right polarity (+/-). When closing the lid, ensure that the O-ring is correctly
positioned.
Low battery voltage may result in incorrect measurement results. As soon as the bat-
tery symbol appears, the battery should be replaced.
4 OPERATION / DISPLAY
Display:
COMM: Appears when the device is connected to a computer
TL-1D
MIN/MAX/AVG: Minimum, maximum or average value of the stored data
x
(function available only in LOG mode).
x x
FULL: Appears when storage is full
x
LOG: Appears when the logging function is active
x
: Appears when the battery is low
64,000
°C/°F: Temperature
%RH: Relative humidity (BL-1D, HL-1D)
hPa:
Pressure (BL-1D)
Type TL-1D DP °C/°F: Dewpoint (BL-1D)
Hi, Lo: Appears when temperature or humidity exceed the High Alarm
or Low Alarm threshold
4.1 START / STOP BUTTON
Press the button once to switch the device on or off (the device cannot be
switched off in LOG mode). To start or stop data logging, press the START/
STOP button and hold it down until "LOG" appears on the display, or pro-
gram the desired logging time using HW4.
4.2 MODE BUTTON
Every 5 seconds (default value), or when the MODE button is pressed, the
display toggles between "Humidity & Temperature" and "Pressure & Dew-
point". In LOG mode, press and hold down to display the MIN/MAX/ AVG of
the stored data.
HL-1D/TL-1D: In LOG mode, press the button for a moment to display the MIN/MAX/AVG
of the stored data
BL-1D:
Humidity &
Temperature
Press > 2s
Press or
Time interval
Pressure &
Dew Point
Press
Press Press
MIN 1 MAX 1 AVG 1
Time interval Time interval Time interval
Press Press
MIN 2 MAX 2 AVG 2
Press
4.3 LED STATUS INDICATOR
In Log mode, the right-hand LED flashes green every 5 seconds. When the
alarm threshold has been exceeded, or if the battery is low, the left-hand
LED flashes red every 5 seconds.
5 SETTING / DISPLAY OF THE LOGGED DATA
Settings can be made, and logged data can be downloaded or displayed, only on a PC that
hasthe Rotronic HW4 software installed. The device is connected to the PC via a commercially
available USB-to-USB mini-cable (AC0003) The cover of the USB port on the device can be
opened with a coin. More detailed information about making settings via HW4 will be found
in the device-manager Help document.
When the logger is used for the first time, the clock must be synchronized.
6 TROUBLESHOOTING
Error Problem Solution
E02 Temperature is too low Permitted ambient temperature:
-30..70 °C
E03 Temperature is too high Permitted ambient temperature:
-30...70 °C
E31 Temperature sensor damaged Send the device in for repair
E04 Error in temperature measurement Place the measurement device in a
normal environment
E11 RH calibration error Carry out humidity calibration again
E33 Circuit damaged Send the device in for repair
7 TECHNICAL DATA
Accuracy 23 °C ±5 °C ±3.0 %RH, ±0.3 °C, ±3 hPa
Logging interval 30 s...24 h
Storage capacity 64,000 lines
Function MIN / MAX / AVG
Display LCD, 2 lines
Display refresh rate 5 sec. (default)
(in logging mode, equals the logging interval)
LED indicators 2 LEDs; right-hand LED flashes green during data logging
Left-hand LED flashes red when thresholds are exceeded
or the battery is low
Communication USB mini-port
Software HW4 V3.4.1 or higher (BL-1D: V3.9 or higher)
included
Range of application -30...70°C
0...100 %RH (non-condensing)
Battery 1 x CR2
Battery life 1 year (1 h logging interval, room temperature)
IP protection type IP67
Weight 85 g
Dimensions 90 x 60 x 23 mm
FDA/GMP compatibility FDA 21 CFR Part 11 / GAMP 5-compliant HW4 software
Standards EN 12830
Accessories Mini-USB cable AC0003 (included in xL-1D-SET)
12.8000.2201E
