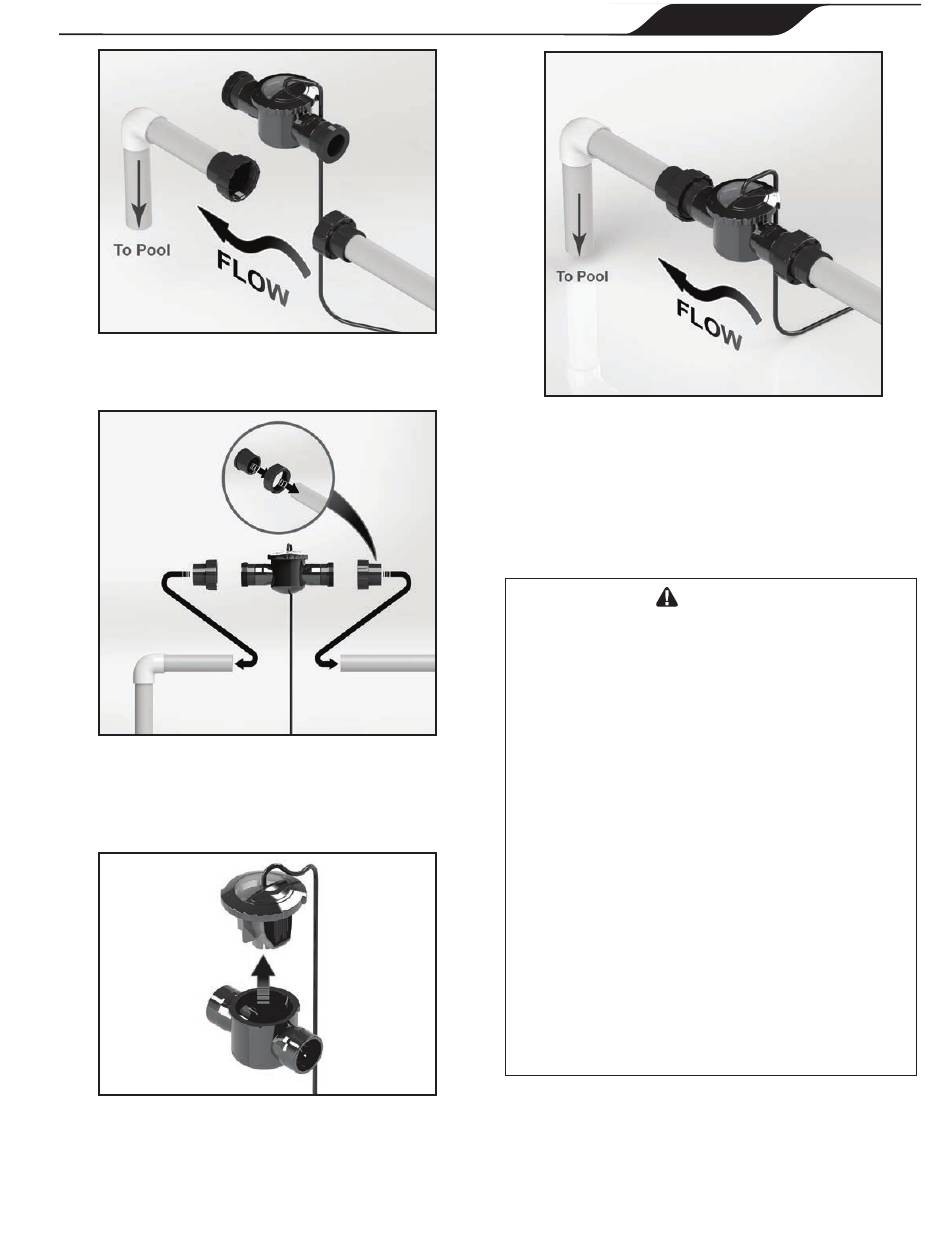

2. Remove the existing equipment and make any
appropriate cuts in the pipe where you will be
installing the cell.
3. Remove the cell from the housing and plumb the
housing into the pipe, making sure that the flow
indicator arrows on the housing match the flow
direction of the water. Pipes must be clean and dry
before gluing.
If the flow direction of the water does not match the
NOTE
arrows on the housing, the cell will malfunction.
|
Chlorine Generating System Installation & Operation Manual
ENGLISH
4. Let the system dry per instructions provided by the
glue manufacturer. When the glue is dry, start the
system and check for proper water flow Make sure
the cell is closed (locked into the housing) before
you start the filter pump.
3.5 Wiring the Power Pack to the Power
Source
WARNING
When using electrical products, basic precautions
should always be followed, including the following:
• DANGER: RISK OF ELECTRIC SHOCK WHICH
CAN RESULT IN SERIOUS INJURY OR DEATH.
Before attempting installation or service, ensure
that all power to the device is disconnected/
turned off at the circuit breaker. Connect only
to a circuit protected by a ground-fault circuit-
interrupter (GFCI).
• Grounding is required. The unit should be
installed by a qualified service representative and
should be properly grounded and bonded (See
Section 3.6, Bonding).
• To avoid property damage, serious injury or
death, never use the chassis backplate of the
power pack to ground any other equipment.
• Install to permit access for servicing.
• Select field conductor size appropriately,
taking into consideration length of circuit and
in accordance with applicable installation
codes. Wiring should only be attempted by a
qualified professional.
1. Wire power pack to pool pump power source using
3.3 mm 2 (12 AWG) insulated wire and conduit. Wire
the power pack to the LOAD side of the filter pump
or the LOAD side of the pool pump timer relay so
that the chlorinator can only come on when the pool
pump comes on (see Figure 4).
