USER INSTRUCTIONS

WI-FI BOX

A new version of the Wi-Fi Box has been created. The im-
provements include faster processing speed, new Wi-Fi chip, and
best of all for the customer, an uncomplicated and much shorter
App Setup menu for the ProControl app. The new Wi-Fi Box also
has variable power supply between 5 and 24 volts, two RGB
outlets, identical connectors on both ends of the cable, and
the Wi-Fi Box itself has a much smaller footprint for easy
installation in tight spaces.

TECHNICAL DATA

AMBIENT TEMPERATURE RANGE
CSA: myfire Wi-Fi Box: 32 °F to 140 °F
CE: myfire Wi-Fi Box: 0 °C to 60 °C
RADIO FREQUENCY
CSA + CE: 2.4 GHz
Power Supply
Wi-Fi Box: 6 V connection to the Receiver which is connected
to an AC mains adapter.
WI-FI BOX
▪ WPA2 authentication
▪ AES 256-bitencryption security
▪ Compatible with IEEE 802.11n/g/b
CONSUMPTION OF ELECTRICITY
CSA+CE: Nominal:
CSA+CE: Standby:
LED RGB CONTROL OUTPUT
CSA + CE: Phoenix, 3 pol, MC 1.5 / 3-ST-3.5,
5 VDC - 24 VDC / 5 Amps
LED RGB EXTERNAL POWER INPUT
CSA + CE: Phoenix, 2 pol, MC 1.5 / 2-ST-3,
5 VDC - 24 VDC / 5Amps

MODES OF OPERATION

The Wi-Fi Box allows communication with a home network (Wi-Fi
Router) over a wireless signal.
1. Wi-Fi Box must be wired according to the ProControl App
Setup diagram
2. Wi-Fi-Box must be connected to the Receiver;
connect Receiver to mains power. The Wi-Fi Box starts with
the Access Point Mode (green light flashes) if no home
network is configured. Go to "myfire App Setup"
MINIMUM REQUIREMENT WI-FI ROUTER:
▪ Compatible with IEEE 802.11n/g/b
▪ WPA2 encryption
▪ Radio frequency: 2.4 GHz band
▪ Wireless auto channel: Automated search for WLAN radio
channel free of interference
▪ Support for the User Datagram Protocol (UDP)
▪ Connection to mDNS is required to guarantee Easy Comission
Process
▪ One temperature sensor
40
max. 0.5 W
max. 5 mA
MINIMUM REQUIREMENT SMART DEVICE:
▪ IOS 8.0 or Android 4.2
LED 1 LED 2 RGB LED 1
Power Input
Reset button
(Use paper clip to push button)

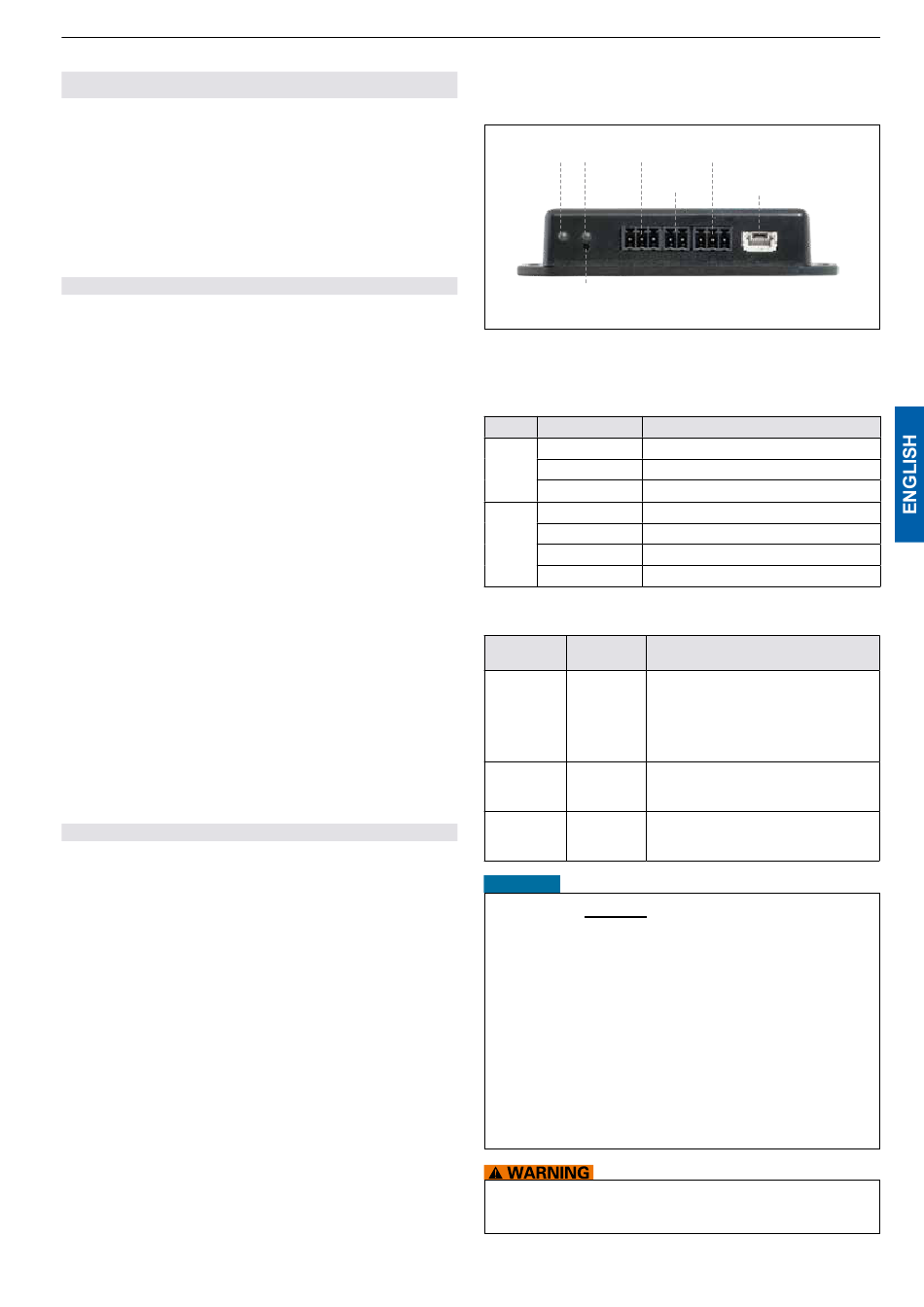

Figure 4: Wi-Fi Box version 2 connections
LED INDICATION ON WI-FI BOX
2 RGB LEDs with 3 colors red / green / blue
Label Status Status
Green Connected to Receiver.
(LED 1)
Red Not connected to Receiver.
Receiver
Off Standby mode is active. No Power supply.
Green Wi-Fi connection is safe.
Blue blinking Access point mode is active.
(LED2)
WLAN
Red Not connected to home network (Wi-Fi Router).
Off Standby mode is active. No power supply.
RESET STATUS ON MYFIRE WI-FI BOX:
Press Reset LED message Function
Button
Power-On- If no network is set, the AP Mode will be
Flashing
Reset or activated for 2 hours. When the network isn't
green and blue
1-sec-Reset set after 2 hours, the Wi-Fi Box will change
into Standby Mode 1.
Once a network is set, the Wi-Fi Box will
connect directly.
10 secs Receiver LED Removes the Wi-Fi settings and turns on the
flashes every
500ms in blue
Receiver LED
20 secs Erases all Setup Data. The Wi-Fi chip will be
flashes every et to the last version after the reboot. The AP-
Mode will be activated for 2 hours.
50ms in blue
NOTICE
▪ A handset or The Puck must be used to achieve full
functionality.
▪ If mains power is lost, disconnect the Wi-Fi Box from the
Receiver. This will prevent Receiver batteries from being
drained quickly.
▪ Multiple users on the same Wi-Fi channel may interfere with
the data transfer. Press reset button on the Wi-Fi Box for 1
second to change current channel.
▪ If Wi-Fi Box is not connected to the Receiver or is not used,
it will leave the Access Point Mode (AP Mode) after 2 hours.
▪ If you have multiple fireplaces using Wi-Fi Boxes, the
minimum distance between the Wi-Fi Boxes must be 60 cm
(2'). A shorter distance may interfere with the data transfer.
Do not connect the combination control system to the
LED connections of the Wi-Fi Box.
RGB LED 2
Receiver cable
P Mode for 2 hours.
