Onkyo HTP-993THX Mode D'emploi

HTP-993THX/SKS-HT993THX

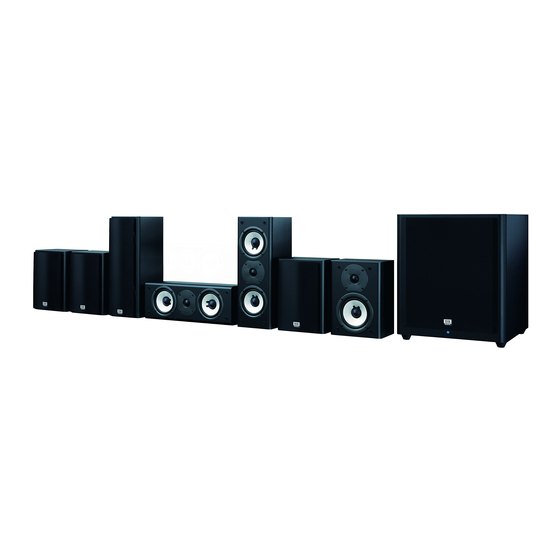

7.1ch Home Theater Speaker Package
SKS-HT978THX
5.1ch Home Theater Speaker Package
Supplied Accessories
Make sure you have the following accessories.
Front Speakers (SKF-980)
(White)
Front speakers Speaker cables 3.5 m (11 ft.)
Center Speaker (SKC-980)
Center speaker Speaker cable 3.0 m (10 ft.)
12 cork stoppers*1
*1 For use of front speakers and center speaker.
Surround Speakers (SKR-980)
Surround Back Speakers (SKB-980)
Surround speakers
(Red)
Surround back speakers
(HTP-993THX/SKS-HT993THX only)
Powered Subwoofer (SKW-980/SKW-938)
(Green)
Subwoofer
(Blue)
(Gray)
Speaker cables 8.0 m (26 ft.)
(Brown)
(Tan)
Speaker cables 8.0 m (26 ft.)
RCA cable 3.0 m (10 ft.)
En-1
Power cord
(Asian models)
■
Front
Standby/On indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
The status indicator lights blue when
low frequency sound is being passed
through the speaker.
The indicator does not light in the
normal dialog or high frequency sound.
Caution
• The front grille is not designed to be removed so do not
attempt to remove it forcibly, as this will damage it.
