HM700ACYL2
Installing the New Cylinder
CAUTION
Verify Model Number
Make sure the new cylinder is the same model as
the one that was removed. Model number is on
top left corner of cylinder label. Only Honeywell
HM700 replacement cylinders can be used.
1. Insert cylinder into drain valve. Tilt cylinder forward
and fit end of steam hose to steam outlet. Tip
cylinder back into place.
2. Tighten hose clamp, being careful not to over-
tighten and crush the plastic cylinder steam outlet.
3. Attach color-coded cylinder plugs to the
corresponding color-coded cylinder pin. Push
down completely. Connect high water sensor plug.
Spring-loaded plugs should fit snugly onto the
cylinder pin. Replace if they are loose or damaged.
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com

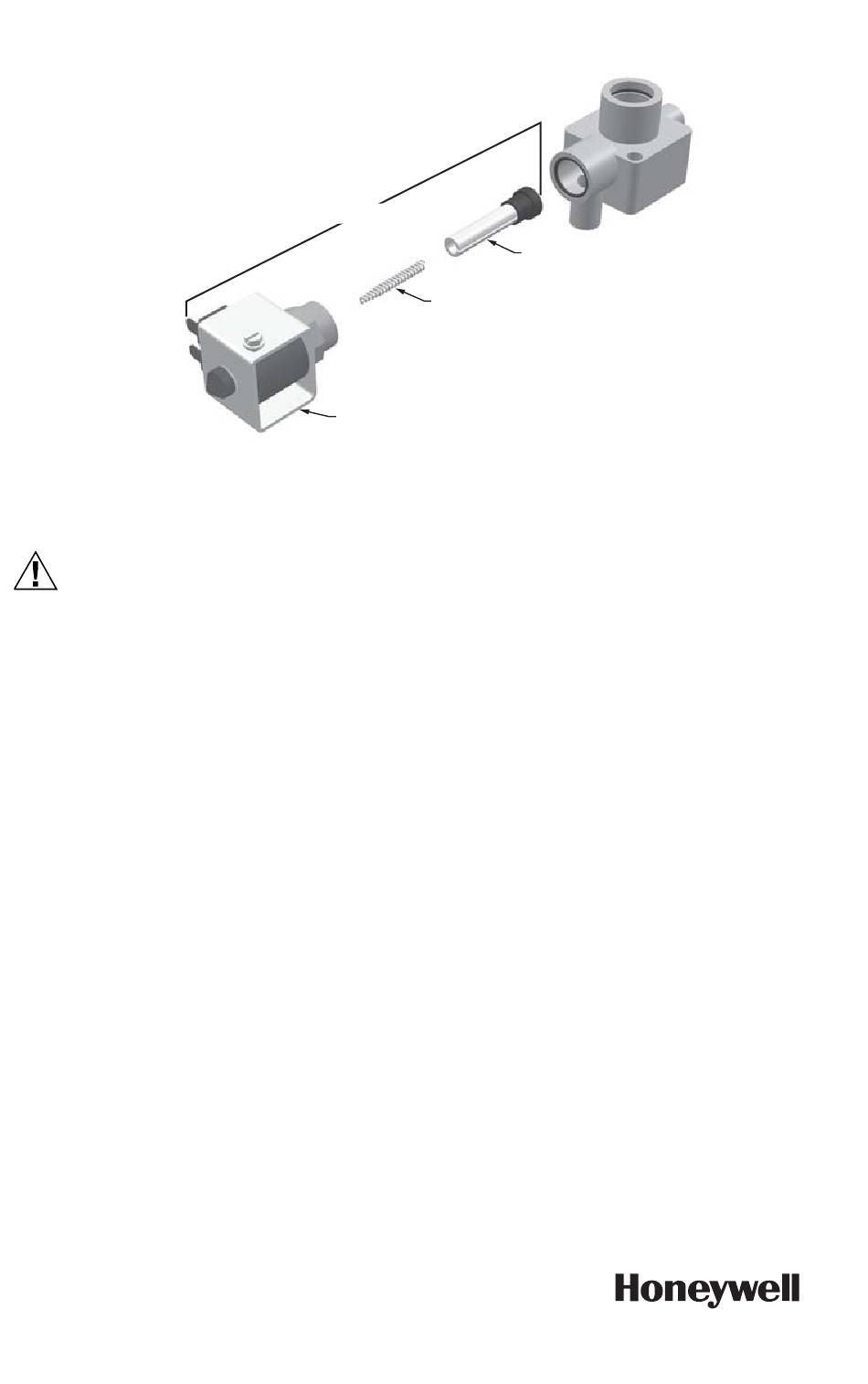

ACTUATOR
SPRING
(NOTE ORIENTATION)
SLEEVE AND
SOLENOID
Fig. 5. Drain Valve Actuator Assembly
For more information on maintenance and replacement,
please visit http://yourhome.honeywell.com
or call 1-800-468-1502 or 1-800-814-9452
® U.S. Registered Trademark
© 2016 Honeywell International Inc.
33-00159EFS—01
Printed in United States
PLUNGER
4. Replace the humidifier cover and secure with two
screws.
5. Turn on power to humidifier with the external
disconnect.
6. Open supply water shut off valve.
7. Turn the humidifier On/Off /Drain switch to On.
NOTE: The HM700 has a re-usable tie strap to
secure the cylinder for transit as well
as home installation. This must be
removed or loosened to remove the
cylinder. Secure when new cylinder is
installed.
