Telestart T80

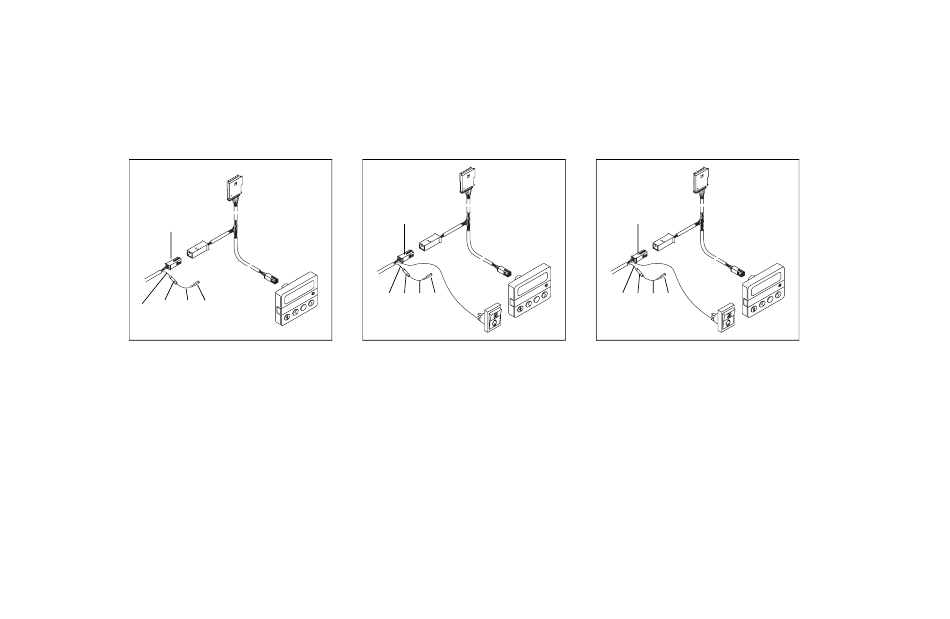

Existing Equipment: Digital
Timer Only
Y-adapter
1
4
3
5
2
- Connect supplied short violet cable
(3) to violet cable (5) of wiring har-
ness using a crimp connector (4)
- Plug micro-timer (2) into free location
of the 4-pole connector (1) (digital
timer)
22
Existing Equipment: Digital
Timer and Summer / Winter
Switch
Y-adapter
1
5
4
3
2
- Remove violet cable (5) at summer/
winter switch and remove existing
connector
- Connect supplied short violet cable
(3) to violet cable (5) of wiring har-
ness using a crimp connector (4)
- Plug micro-timer (2) into free location
of the 4-pole connector (1) (digital
timer
Existing Equipment: Telestart
T60 Including Summer / Winter
Switch and Digital Timer
Y-adapter
1
5
4
3
2
- Remove Telestart T60
- Install Telestart T80 in accordance
with installation instructions
- Remove violet cable (5) at summer/
winter switch and remove existing
connector
- Connect supplied short violet cable
(3) to violet cable (5) of wiring har-
ness using a crimp connector (4)
- Plug micro-timer (2) into free location
of the 4-pole connector (1) (digital
timer
