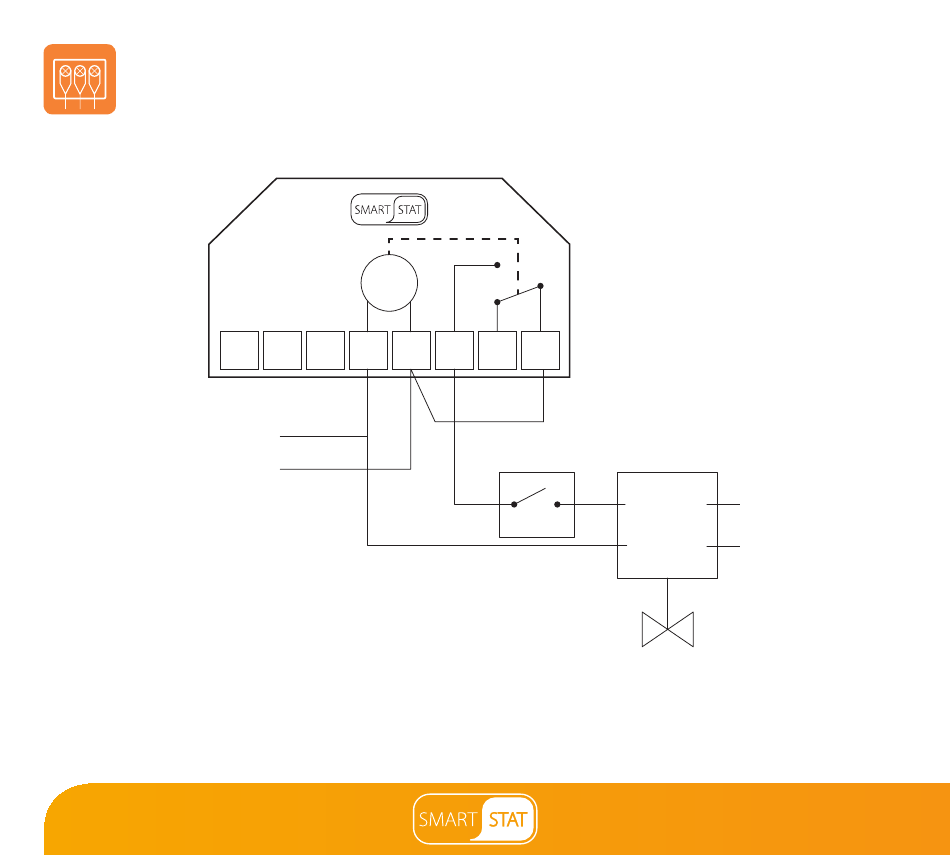

Schéma de câblage en mode horloge
Setting the Switching Times
To program the switching times, follow these steps
•
Use the Left / Right keys to scroll to Edit ....................................................................
•
Press Tick to confirm selection ................................................................................................
•
Use the Up/Down keys to select the day/period to program ..............................
•
Press Tick to confirm selection ...............................................................................................
•
1 will now be highlighted and the ON / OFF times will be displayed.
•
Press Tick to alter period 1 ........................................................................................................
•
To set the ON time, use the Up/Down keys to set the hours,
press the Right arrow key & use Up/Down to set the minutes ....
•
Press Tick to confirm ...................................................................................................................
Neutre
Alimentation 230 V
•
To set the OFF time, use the Up/Down keys to set the hours,
Phase
press the Right arrow key & use Up/Down to set the minutes ....
•
Press Tick to confirm the settings ..........................................................................................
•
Press the Right arrow key .........................................................................................................
•
2 will now be highlighted and the current settings will be displayed.
•
Press Tick to alter period 2 settings ......................................................................................
•
Repeat these steps to set all periods.
•
To deactivate a period; hold Tick for 5 seconds.
Ce produit doit être installé par un électricien qualifié et
•
When all switching times have been programmed use the Right arrow key
respecter les réglementations d'installation locales.
to scroll to Done and press Tick .....................................................................................
39
TIMER
-
RT1 N
RT2
L
NO
NC
COM
État eau chaude
(S Plan)
BR
GR
Fin de course
Chauffe-eau actif
BL
OR
