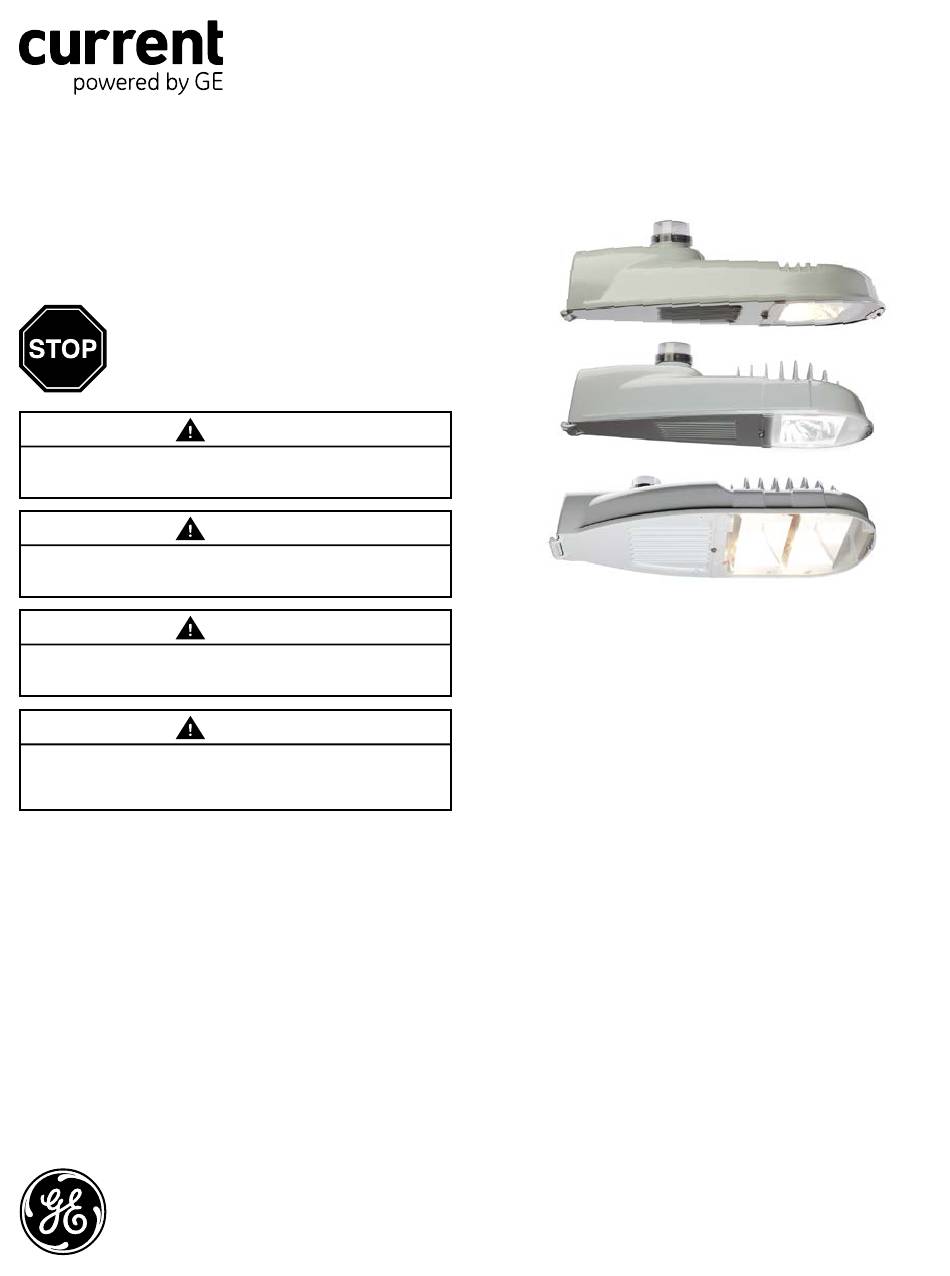

Evolve

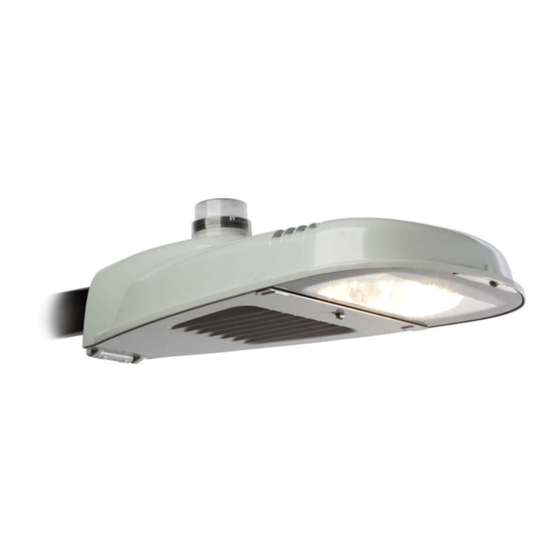

LED Roadway Light
™
LED Streetlight (ERL1-ERLH-ERL2)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
Risk of electrical shock. Disconnect power before service
installation, or maintenance of the product.
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
Risk of injury. Wear safety glasses and gloves during
installation and servicing.
Risk of injury. The luminaire should be mounted so that
prolonged staring into the luminaire at a distance closer
than 0.50m is not expected.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class [A] Lighting Equiment complies with the Canadian standard
ICES-005[A]/NMB-005[A].
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING
WARNING
CAUTION
CAUTION
GENERAL
• This luminaire is for outdoor lighting service and
should NOT be installed in areas of limited ventilation
or in high ambient temperature.
• Luminaire is designed to be mounted horizontally with
LEDs facing down.
SPECIFICATIONS
• Approximate Net Weight:
- ERL1/ERLH: 15lbs (7.0kg)
- ERL2: 24lbs (10.9kg)
• Dimensions: (L x W x H)
ERL1/ERLH: 22.1. x 13.5 x 6.4 in. (561 x 344 x 162 mm)
ERL2: 26.3 x 12.8 x 6.4 in. (667 x 324 x 162 mm)
• IP Rating: Optical IP65, Standard Electrical Enclosure:
UL 1598 Wet Location Rated
• Recommended Mounting Height: 27 - 40 ft. (8.2 - 12.2m)
• EPA:
- ERL1/ERLH: 0.50 ft² (0.046 m)
- ERL2: 0.35 ft² (0.033 m)
• Operating temperature range:
- ERL1: -40
o
C to 50
- ERLH/ERL2: -40
o
** Selected SKU's support +50
datasheet.
Installation Guide
GEH-6064
o
C
C to 40
o
C**
o
C. See product
Publicité
Table des Matières
Manuels Connexes pour GE current ERL1
Sommaire des Matières pour GE current ERL1
- Page 1 Installation Guide GEH-6064 Evolve LED Roadway Light ™ LED Streetlight (ERL1-ERLH-ERL2) BEFORE YOU BEGIN Read these instructions completely and carefully. Save these instructions for future use. WARNING Risk of electrical shock. Disconnect power before service installation, or maintenance of the product. WARNING Risk of injury or damage.
- Page 2 UNPACKING/HANDLING PE Receptacle • This luminaire has been packed to ensure no damage during transit. Inspect to confirm. • Do not impact or stack luminaire after unpacking. MOUNTING Bird Shields • The bird shield behind the pipe clamp has a 1 ¼ -inch (1.660 OD ) opening.
-
Page 3: Final Assembly
TABLE 2. Wired Dimming Control Connections STORAGE 0 VDC (-) Gray Lead • Packaged units should NOT be stored unprotected Up to 10 VDC (+) Violet Lead outdoors in corrugated (cardboard) boxes. • Store packaged units in a covered dry area not PHOTOELECTRIC CONTROL exceeding -40°C (-40°F) to 50°C (122°F) such as a roofed area or covered with a secured tarp to keep... - Page 4 All trademarks are the property of their respective owners. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions. Current, powered by GE is a business of the General Electric Company. © 2017 GE.
-
Page 5: Spécifications
Manuel d’Installation GEH-6064 Éclairage Routier DEL Evolve ™ Éclairage routier DEL (ERL1-ERLH-ERL2) AVANT DE COMMENCER ARRÊTEZ Lisez ces instructions entièrement et attentivement. Conservez ces instructions pour usage futur. AVERTISSEMENT Risque d’électrocution. Coupez l’alimentation électrique avant l’installation en service ou avant un entretien de ce produit. AVERTISSEMENT Risque de blessure ou de dégâts. -
Page 6: Bras De Montage
• Fixez les fils d’alimentation à la plaque à bornes tel DÉBALLAGE/MANIPULATION que représenté sur la plaque et au tableau No 1. Serrez à 35 in-lbs (0,4 daNm). • Ce luminaire a été emballé pour garantir un transport • Pour les contrôles gradateurs câblés, attachez les fils sans dégâts. -
Page 7: Assemblage Final
Boîtier photoélectrique ASSEMBLAGE FINAL REMARQUE: La porte s’emboîte avec le dessus du boîtier dans toutes les positions sauf près de l’emplacement de démontage. REMARQUE: Les portes sont conçues pour être assemblées au boîtier supérieur lorsqu’en position verticale avec le poids maintenant la broche de la charnière correctement dans sa bride. - Page 8 Toutes les marques déposées sont la propriété de leurs propriétaires respectifs. Les informations fournies sont sujettes à modification sans préavis. Toutes les valeurs données sont théoriques ou typiques lorsque mesurées sous conditions de laboratoire. Current, powered by GE est une entreprise de General Electric Company. ©2017 GE.
- Page 9 Guía de instalación GEH-6064 Luminaria de Avenida Evolve ™ Iluminación LED para Calle (ERL1-ERLH-ERL2) ANTES DE COMENZAR ALTO Lea estas instrucciones completamente y con cuidado. guarde estas instrucciones para el uso futuro. ADVERTENCIA Riesgo de choque eléctrico. Desconecte la alimentación antes del mantenimiento o la instalación del producto.
- Page 10 DESEMBALAJE/MANIPULACIÓN CABLEADO NOTA: Haga todas las conexiones eléctricas de acuerdo • Esta luminaria ha sido embalada para garantizar con el Código Eléctrico Nacional y los requisitos de todos ningún daño durante el transporte. Inspeccione para los códigos locales, incluyendo la conexión a tierra. confirmar.
-
Page 11: Montaje Final
Recipiente FE MONTAJE FINAL NOTA: La puerta se entrelaza con la parte superior de la cubierta en todas las posiciones salvo alrededor de la ubicación del retiro. NOTA: Las puertas están diseñadas para el montaje en la parte superior de la cubierta mientras que en posición vertical con la gravedad sosteniendo el pasador de bisagra en el soporte de bisagra de manera correcta. - Page 12 Todas las marcas registradas son propiedad de sus respectivos propietarios. La Información proporcionada está sujeta a cambios sin previo aviso. Todos los valores son de diseño o valores típicos cuando se miden bajo condiciones de laboratorio. Current, powered by GE es una empresa de la General Electric Company. © 2017 GE.
