Jandy® Pro Series, WaterColors RGBW LED Lights | Installation Manual
120 VAC
Power Supply
GFCI
Neutral
Ground
Ground

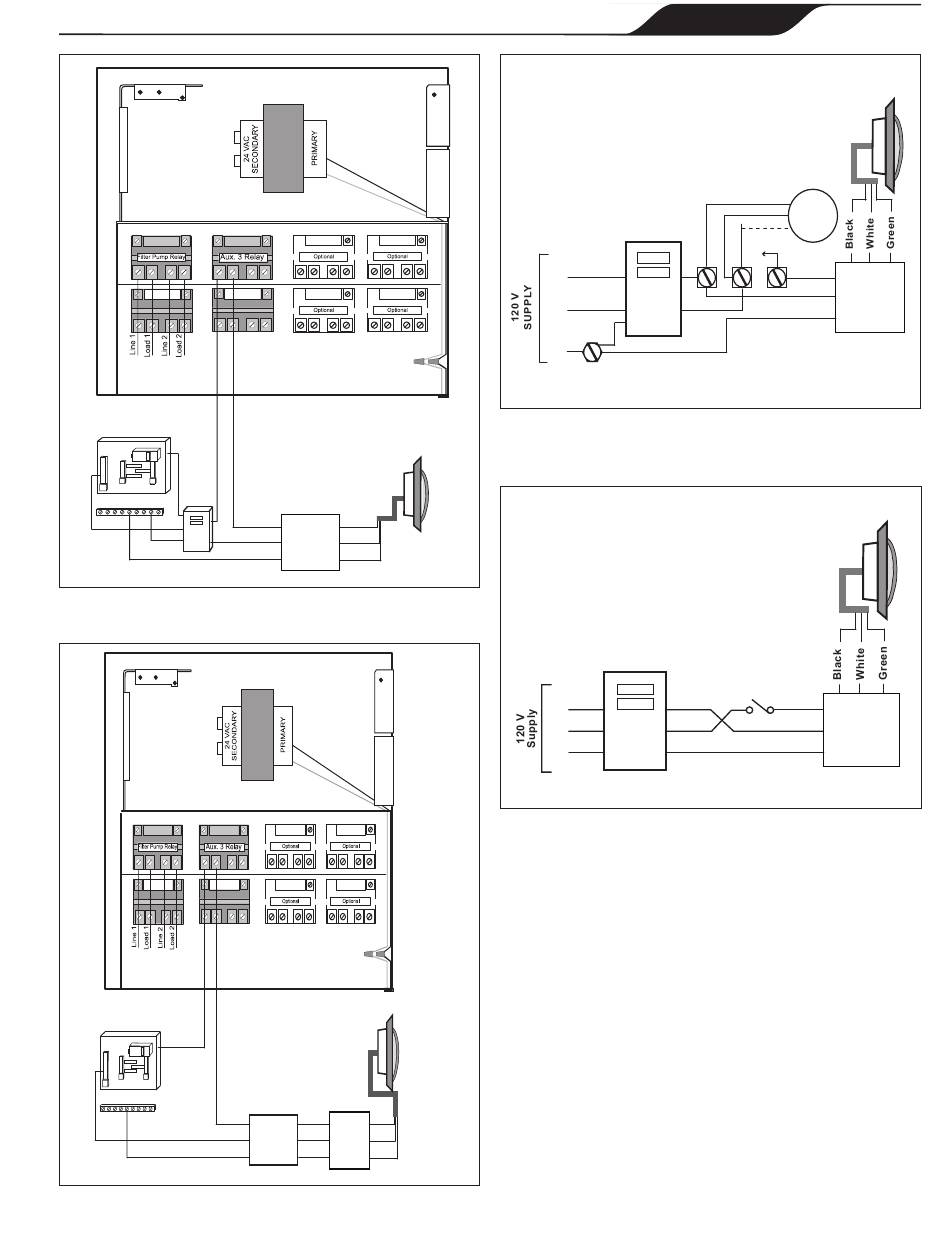

Figura 2. Diagrama de cables de luces LED RGBW
Jandy Pro Series WaterColors de 120 voltios
120 VAC
Power Supply
Black
White
Neutral
Green
Ground
Figura 3. Diagrama de cables de luces LED RGBW
Jandy Pro Series WaterColors
120V
LED
Light
Black
Black
White
White
JUNCTION
BOX
Green
Green
12V
LED
Light
Black Black
White
White
120V/12V JUNCTION
Transformer
BOX
Green
Green
Neutral
Line GFCI
Ground
Figura 4. Cableado de la luz LED RGBW Jandy Pro
Series WaterColors a un reloj registrador
Neutral
White
Line
Black
GFCI
Ground Ground
Figura 5. Cableado de la luz LED RGBW Jandy Pro
Series WaterColors a un interruptor
Página 41
ESPAÑOL
120V
LED
Light
Clock
Motor
1
A 2
Black
White
JUNCTION
BOX
Green
Ground
120V
LED
Light
SWITCH
Black
JUNCTION
White
BOX
Green
