Distinction Water Still
D4000 & D4000/Euro
Thermostat reset buttons
Boiler
thermostat
tube
on/off switch
Clip
reservoir
level
control

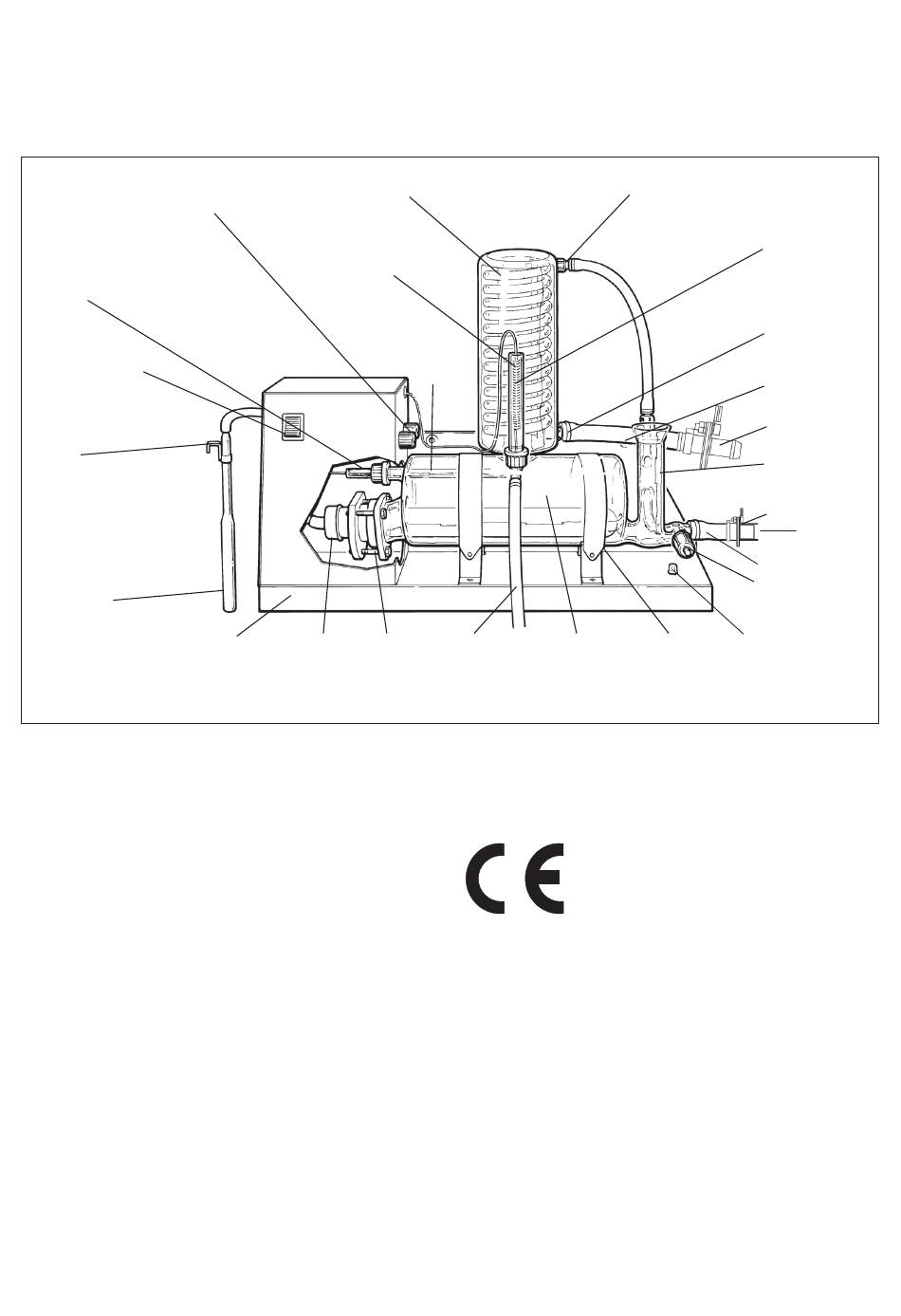

Figure 1 General assembly
Before use
If the equipment is not used in the manner described in this
manual the protection provided by the equipment may be
impaired.
N.B. The Distinction Water Still is classified as "Permanently
Connected Equipment" and should be connected to the
electricity supply by a qualified electrician in the manner
described in the electrical installation section of this manual.
The Distinction Water Still is designed to operate under the
following conditions:
For indoor use only
❖
Ambient temperature range +5°C to +40°C
❖
Altitude up to 2000m
❖
relative humidity not exceeding 80%
❖
Mains supply voltage fluctuations not greater than
❖
±10% of nominal
overvoltage category II IEC60364-4-443
❖
Pollution degree 2 IEC664
❖
2
Condenser
Condenser
thermostat
OFF
ON
Dis
water still
Heater
Gaskets
Stand
and flange
Boiler
thermostat
probe
Distillate
Boiler
outlet tube
Limitations of use
This product meets the applicable E.C. harmonised standards for
radio frequency interference and may be expected not to interfere
with, or be affected by other equipment with similar qualifications.
We cannot be sure that other equipment used in its vicinity will meet
these standards and we cannot guarantee that interference will not
occur in practice. Where there is a possibility that injury, damage or
loss might occur if equipment malfunctions due to radio frequency
interference, or for general advice before use, please contact the
Technical Service Department of Bibby Scientific Ltd.
Condenser
outlet (upper)
Hose assembly 2
Hose assembly 1
outlet
Stopcock
Earth point for
Straps
earthed pipe straps
The Distinction Water Still complies with the
following European Directives:
89/336/EEC - E.M.C. DIrECTIVE
Amended by 92/31/EEC and 93/68/EEC
73/23/EEC - L.V.D. Amended by 93/68/EEC
Condenser
thermostat tube
Condenser
cooling water
inlet
Wall mounting
screw holes
Constant
level control
To drain
