Getting Started

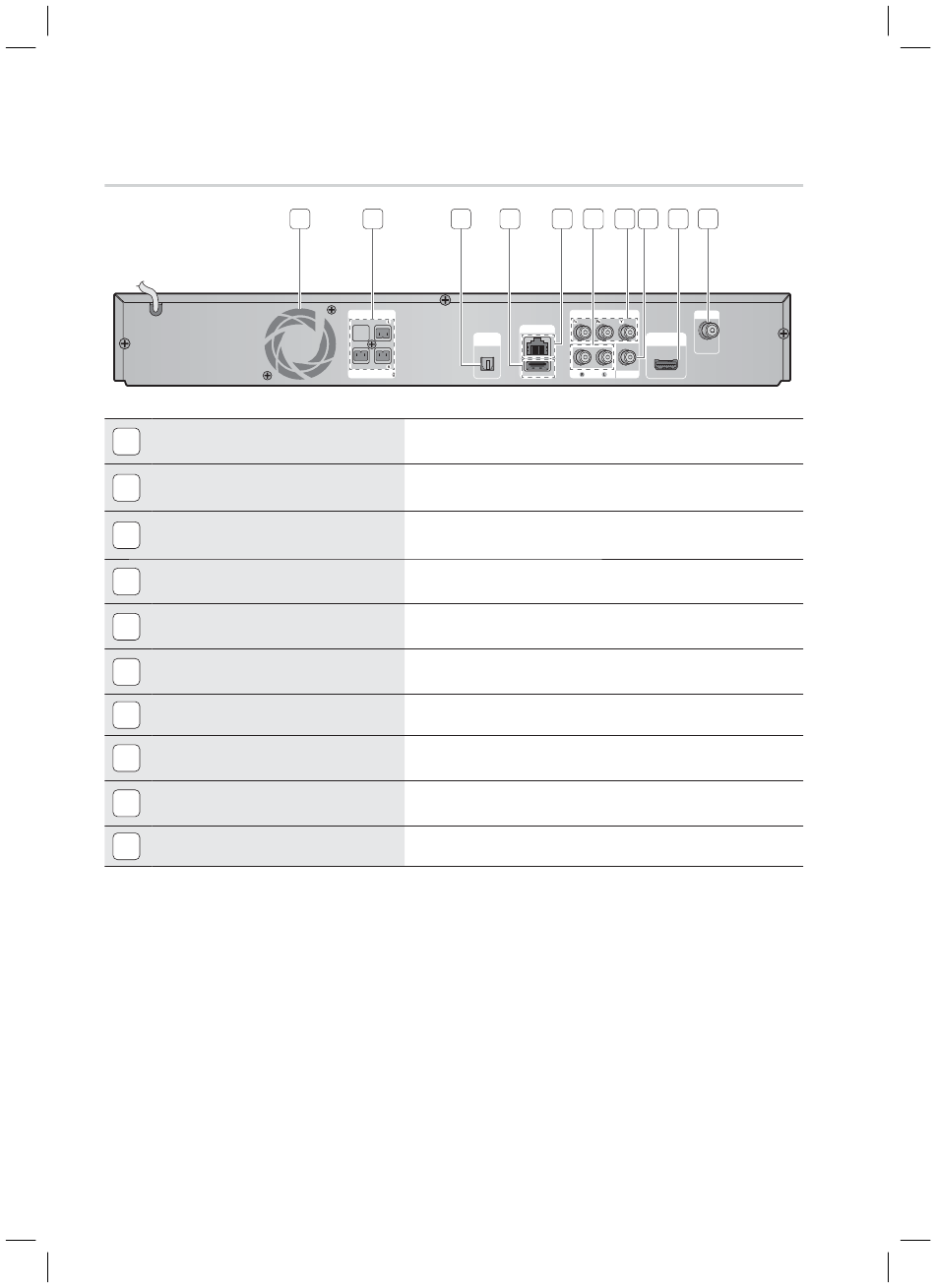

Rear Panel

1
COOLING FAN
2.1 CHANNEL SPEAKER OUTPUT
2
CONNECTORS
EXTERNAL DIGITAL AUDIO IN JACK
3
(OPTICAL)
4
WIRELESS LAN JACK
5
LAN TERMINAL
6
AUX IN JACKS
7
COMPONENT VIDEO OUT JACKS
8
VIDEO OUT JACK
9
HDMI OUT JACK
10
FM ANTENNA JACK
!
CAUTION

Ensure a minimum of 10 cm of clear space on all sides of the cooling fan when installing the product.

Do not obstruct the cooling fan or ventilation holes.
14
English
HT-D4200_ELS_1223.indd 14 HT-D4200_ELS_1223.indd 14
1 2 3
SPEAKERS OUT
FRONT
SUBWOOFER FRONT
SPEAKER IMPEDANCE : 3
The cooling fan supplies cool air to the product to prevent overheating
and always revolves when the power is on.
Connect the front, subwoofer speakers.
Use this to connect external equipment capable of digital output.
Can be used for network based services (see pages 53~62),
BD-LIVE and software upgrade with a wireless LAN adapter.
Can be used for network based services (see pages 53~62),
BD-LIVE and software upgrade under the network connection.
Connect to the 2CH analogue output of an external device
(such as a VCR)
Connect a TV with Component video inputs to these jacks.
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT
Jack on this product.
Use an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
Connect the FM antenna.
4 5 6 7 8
COMPONENT OUT
LAN
DIGITAL
AUDIO IN
OPTICAL
WIRELESS LAN AUX IN VIDEO OUT
5V 350mA
9 10
FM ANT
HDMI OUT
