SystemAir SYSAQUA 45 Manuel D'installation Et De Maintenance page 53

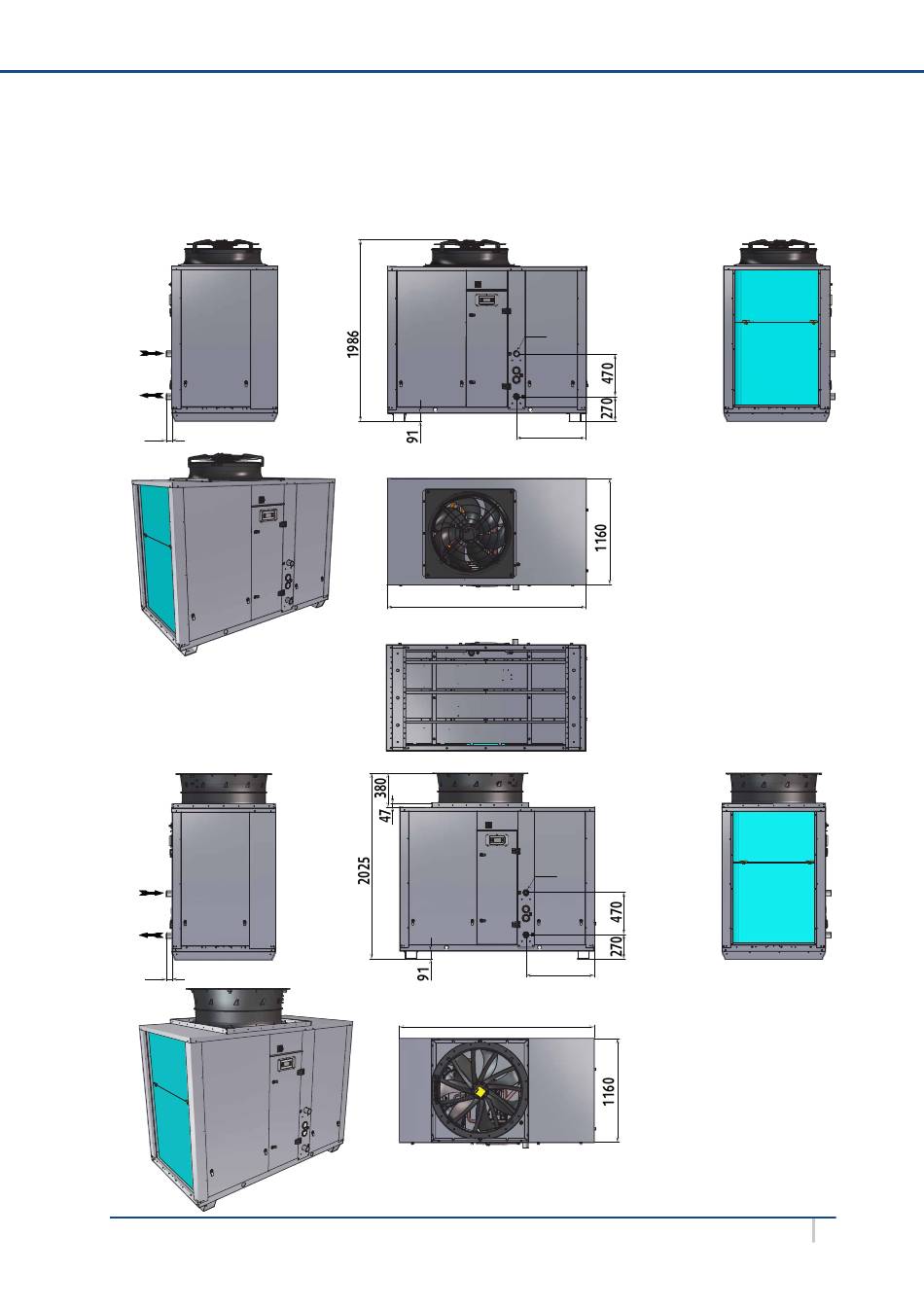

DIMENSIONS
DIMENSIONS
ABMESSUNGEN
DIMENSIONI
DIMENSIONES
SYSAQUA 45 - 55
Side view
WATER
INTLET
OUTLET
60
Side view
WATER
INTLET
OUTLET
60
APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO
Front view
Top view
2180
Bottom view
Front view
Top view
2180
Bottom view
Ø2"
764
STANDARD
Ø2"
764
Side view
FAN
Side view
FAN HPF
SYSAQUA III
