OP Link 110764-V3 Guide D'utilisation page 8

Installationsanleitung Step Guide
3
STEP
Internet
(C)
Router
(Not included)
(D)

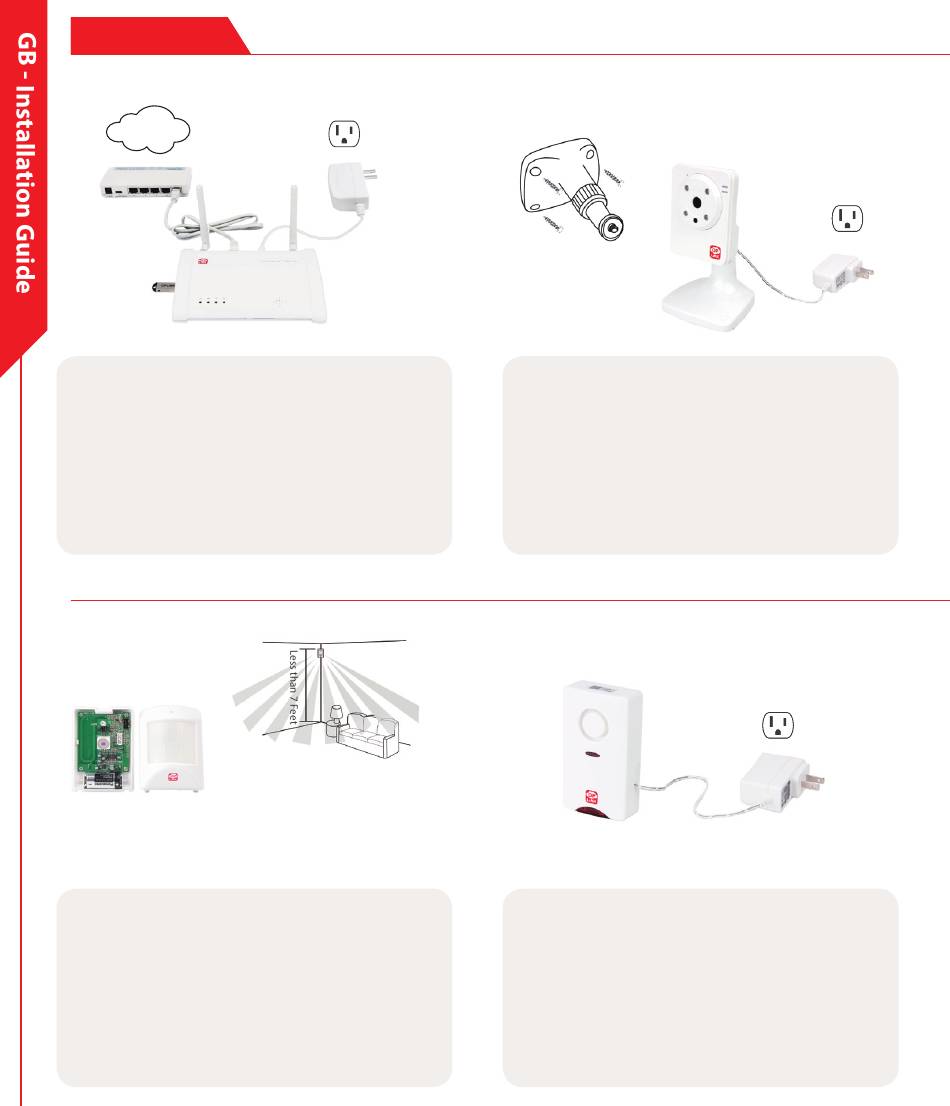

Assemble the OPU station and connect to a
DHCP-enabled router
Assemble the system according to the provided picture. It
is recommended that the OPU be placed on a 3-5ft (0.91-
1.52m) high platform.
Note: Once the OPU is up and running, to establish proper connection to it,
power up the remaining devices within 5 feet of the OPU. When connection
is established and working, the devices can be moved to their desired
locations.
7
STEP
(H) Installa on des ba eries
du capteur de mouvement
(H) Installa on des ba eries
du capteur de mouvement
(H) Motion Sensor Battery
Installation
Place the Motion Sensor
Lift the top tab to remove the cover and install the battery
into the Motion Sensor. For maximum coverage, the
sensor should be placed in the corner of the room to be
monitored and no more than 7 feet above the ground. The
Motion Sensor is most eff ective in areas such as hallways
and entry points where possible intruders will have to pass
through.
(B)
(A)
Mount Motion Sensor
Montez le Capteur
de Mouvement
Montez le Capteur
Note: Once Motion sensor alarms, it will start
de Mouvement
to count 3 minutes, and count over again if
any movement detected in this period .The
next alarm will be triggered only when no
movement is detected within 3minutes.
4
STEP
The camera can be
moved and mounted
after the initial activation.
Power up the IP Camera
Plug the IP Camera into an outlet within 5 feet of the OPU
to establish connection. Once connection is established
and working, the IP Camera can be moved to its desired
location.
Note: Should the placement of the camera cause the image to be upside-
down, use the Flip feature in the App to correct this matter. Video > Single
Video Mode > Image Setting.
8
STEP
( I )
Power up the Siren
Plug the Siren into an outlet within 5 feet of the OPU to
establish connection. Once connection is established and
working, the Siren can be moved to its desired location.
Your Siren comes with a backup battery pre-installed. To
make use of the backup battery, pull and remove the clear
plastic strip to initiate battery contact.
(F)
(E)
