CALIBRATION
The software o ers a calibration function that allows you to carry out precise measurements on your
photos.
YOU SHOULD ALWAYS PERFORM A CALIBRATION BEFORE YOU BEGIN MEASURING
PHOTOS IN ORDER TO OBTAIN CORRECT MEASUREMENT VALUES.
To perform a calibration, please proceed as follows:
1. Activate the reticle under Options > Crossing.
2. Take a photo of the calibrated ruler included in the contents of delivery.
Alternatively, you can use any other millimetre-based ruler.
Before taking a photo, adjust the focus knob to make the image sharp and position the ruler
i
so that the lines are parallel to the reticle.
3. Open the image in Image Preview.

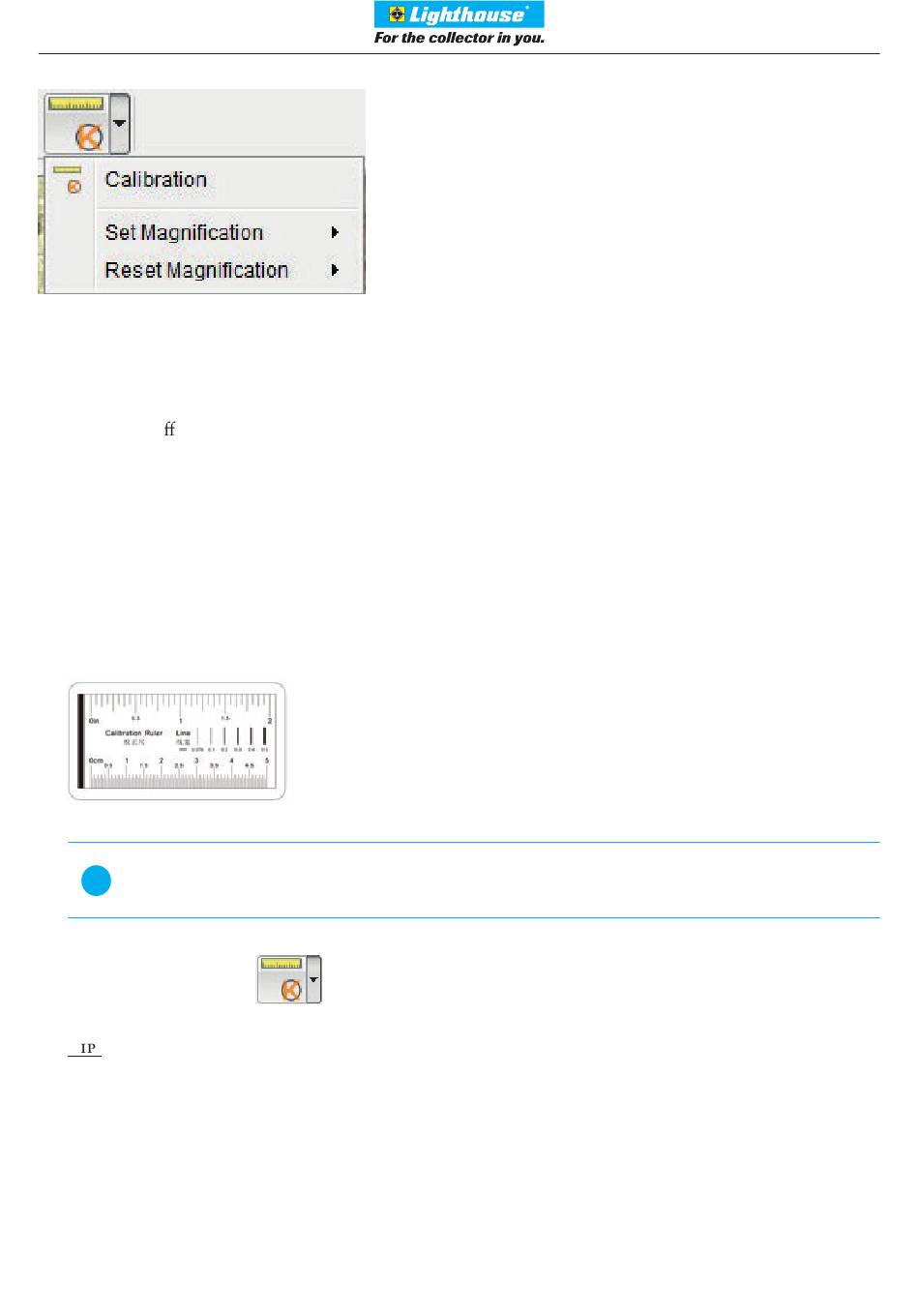

4. Select the Calibration
5. Now draw a straight line from one marking to the next.
T : We recommend a distance of 1 mm!
Press and hold the left-hand mouse button. When the end of the drawn line is correctly positioned,
release the button.
Calibration
See the Calibration chapter
menu option.
