6. OPERATING INSTRUCTIONS

6.1 OVERVIEW

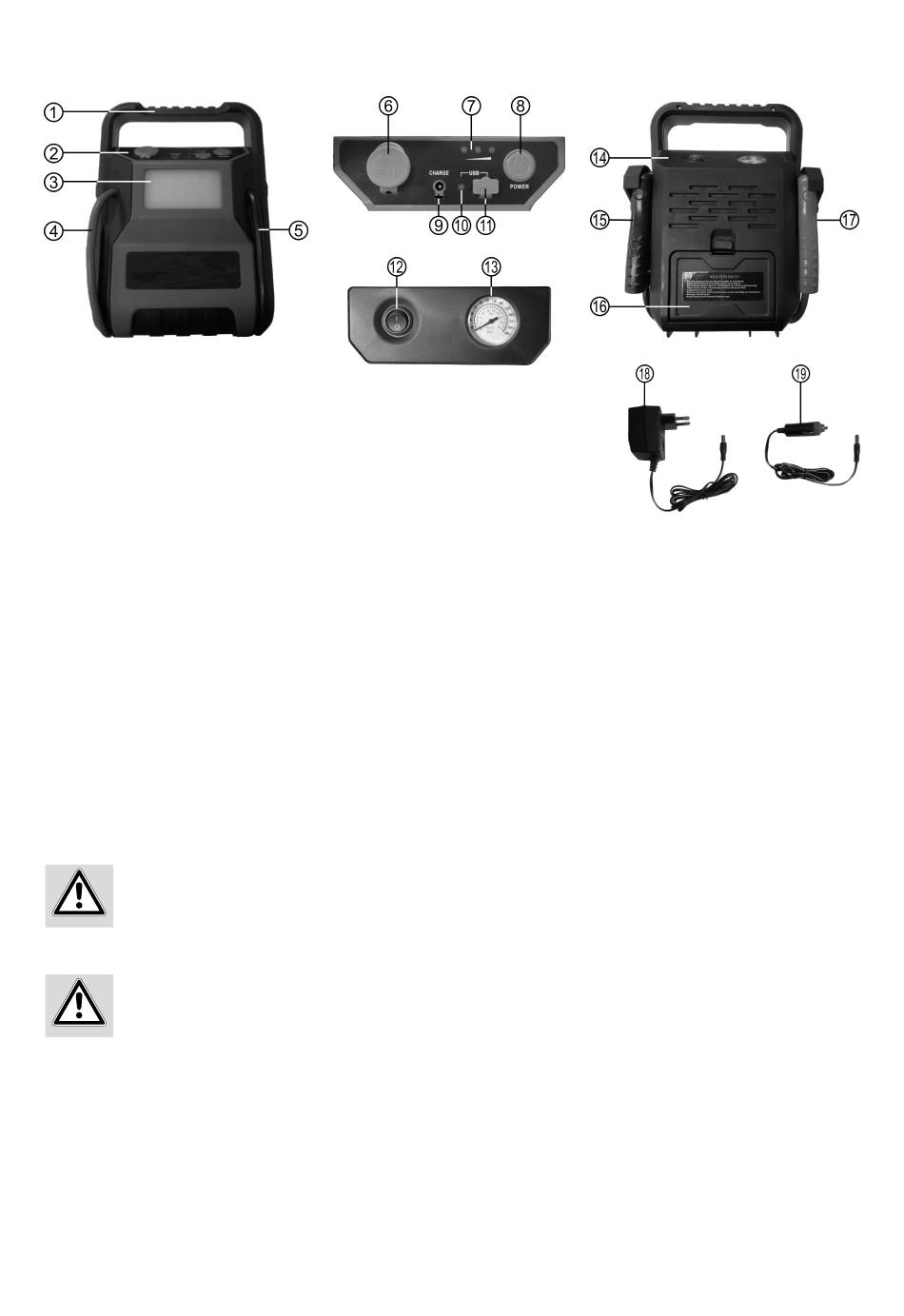

Figure 1: Overview
1 Handle
2 Control panel front
3 LED indicator field
4 Jump lead (+)
5 Jump lead (-)
6 12 V outlete
7 Charge status display

6.2 CHARGING THE POWER PACK

Fully charge up the Power Pack after purchase with the plug charger before initial use (Section 6.2.1)

6.2.1 CHARGING THE POWER PACK: WITH THE PLUG CHARGER

Make sure that the Power Pack is switched off. All control lights and the work light must not be illuminated. Switch off the compressor. Plug the
coaxial connector of the plug charger (Position 18 in the overview) into the charging socket of the Power Pack (Position 9 in the overview). Now,
connect the plug charger with the mains socket. The charge status display (Position 7 in the overview) is activated, and flashes. If all three lights
on the charge status display are always lit, then the Power Pack battery is fully charged. After charging, first disconnect the plug charger from
the mains socket, then disconnect the coaxial connector from the charging socket of the Power Pack.

6.2.2 CHARGING THE POWER PACK WITH THE MOTOR VEHICLE CHARGING CABLE

Make sure that the Power Pack is switched off. All control lights and the work light must not be illuminated. Switch off the compressor. Plug
the coaxial connector of the motor vehicle charging cable (Position 19 in the overview) into the charging socket of the Power Pack (Position 9
in the overview). Now plug the motor vehicle charging cable into the 12 V on-board socket in your car. The charge status display (Position 7 in
the overview) is activated, and flashes. If all three lights on the charge status display are always lit, then the Power Pack battery is fully charged.
After charging, first disconnect the motor vehicle charging cable from the on-board socket, then disconnect the coaxial connector from the
charging socket of the Power Pack.
CAUTION: Only charge the Power Pack when driving or when the motor is running, otherwise there is a risk
that the starter battery of your vehicle may be discharged.

6.3 STARTING AID

For instructions on carrying out a jump start, read the manual of your vehicle or ask your specialist workshop.
Disconnect all of the devices connected to the Power Pack from the 12 V outlet socket (Position 6 in the overview) and from the USB port
(Position 11 in the overview).
Make sure that the Power Pack is fully charged. To do this, press the ON/OFF switch (Position 8 in the overview). If all three lights are illuminated
on the charge status display (Position 7 in the overview) then the Power Pack is ready to use.

6.3.1 CONNECTING THE POWER PACK (VEHICLES WITH NEGATIVE EARTH)

Make sure that the Power Pack is switched off, the charge status display must not light up. The Power Pack switches itself off after around 10
seconds when not in use. Wait until the Power Pack has switched off before continuing.
Switch off the ignition and all electrical consumers of the vehicle (radio, lights, rear window heating, seat heating etc.). Apply the parking brake.
First connect the red (+) pole callipers (Position 17 in the overview) to the plus terminal of your vehicle battery. The black (-) pole callipers
(Position 15 in the overview) is connected, as far as possible from the battery, to the motor block or chassis (not to a painted part).
10
8 Switch
9 Charging socket
10 USB control light
11 USB port
12 Compressor switch
13 Manometer
14 Rear side of control panel
15 Pole calliper (-)
16 Air hose storage
compartment
17 Pole calliper (+)
18 Plug charger
19 Motor vehicle
charging cable
