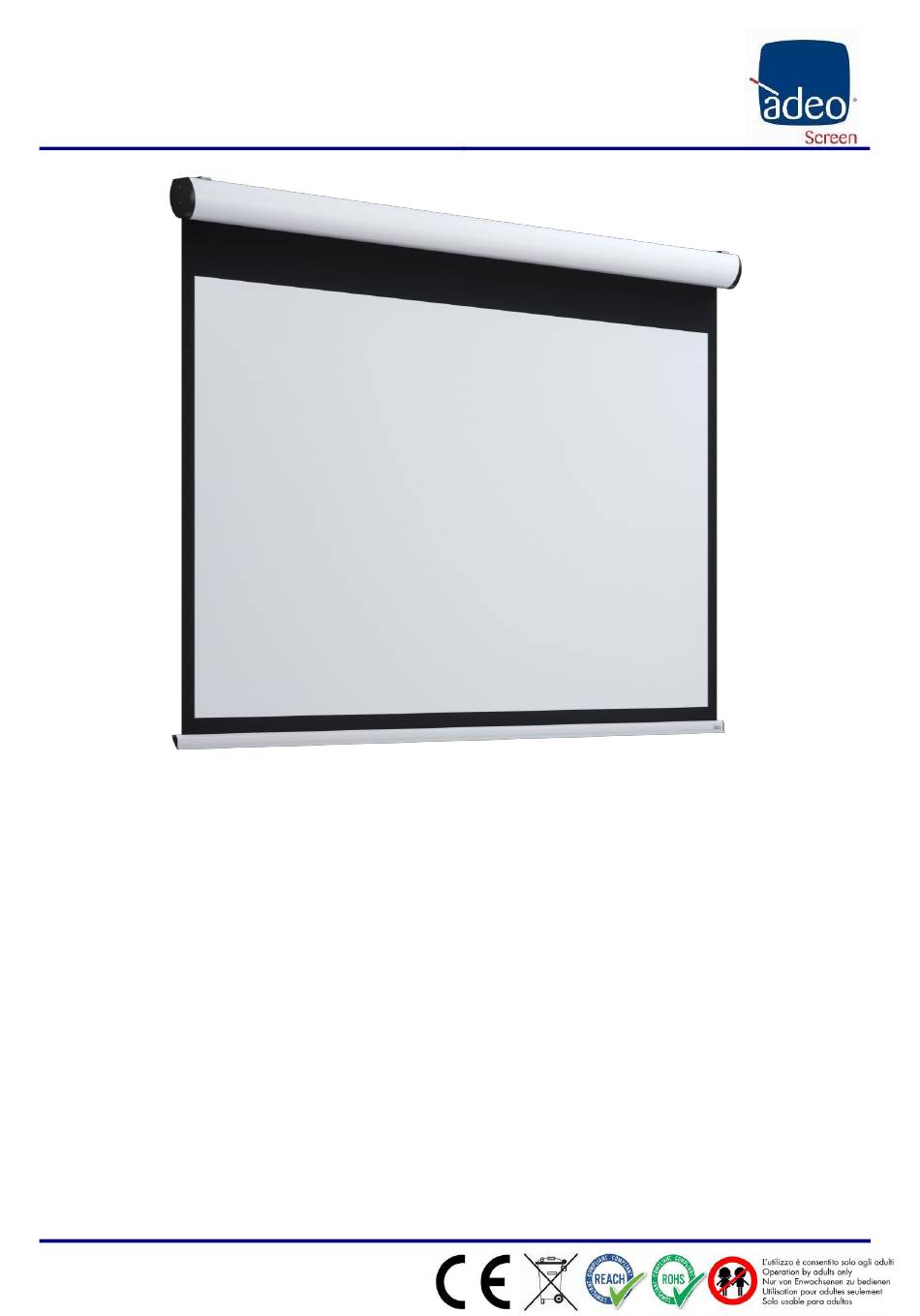

RUGBY-PRO Installation Manual
Model RUGBY-PRO
Code PRONRUGBY-PRO-XXXXX
Manuale d'installazione e d'uso schermo avvolgibile
Rolling screen installation and operation manual
Manuel d'installation et d'utilisation de l'écran de projection
Bedienungs- und Installationsanleitung: Motorleinwand
Manual de instalación y uso de la pantalla enrollable
Instrukcja montażu i obsługi ekranu rozwijanego
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020
Publicité
Table des Matières
Manuels Connexes pour ADEO SCREEN Rugby-Pro
Sommaire des Matières pour ADEO SCREEN Rugby-Pro
- Page 1 Manuel d’installation et d’utilisation de l’écran de projection Bedienungs- und Installationsanleitung: Motorleinwand Manual de instalación y uso de la pantalla enrollable Instrukcja montażu i obsługi ekranu rozwijanego Made by Adeo Screen Sp. Z o.o. (Poland) Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 2: Norme Generali Di Sicurezza
Attenzione: i regolamenti locali possono prevedere pesanti sanzioni in caso di smaltimento abusivo di questo prodotto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 2 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 3: Pulizia / Manutenzione
(valori di riferimento per carico propersona: 25kg maschio - 15kg femmina). In caso di pesi superiori si raccomanda di utilizzare attrezzatura di sollevamente specifica. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 3 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 4: Istruzioni Per L'installazione
Kg 41 INSTALLAZIONE A PARETE E SOFFITTO: Installare lo schermo come da immagini sottostanti. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 4 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen. -
Page 5: Collegamento Elettrico
Portata trasmet: 150m Livello di pressione sonora ponderato: LpA ≤ 70 dB(A) Classe protezione motore: IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 5 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 6 Si ricorda agli operatori che in caso di manomissione dei sigilli e danneggiamento derivante da una regolazione errata, gli interventi per riparazione verranno considerati fuori garanzia. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 6 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 7 10 MODIFICA REGOLAZIONE FINE CORSA MOTORE NICE A – Motore a sinistra B – Motore a destra (standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 7 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 8 La ricevuta/fattura deve contenere in modo chiaro i seguenti dati: Modello - Numero di serie - Data di acquisto - Nome e l'indirizzo dell'acquirente e rivenditore autorizzato Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 8 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 9: General Safety Norms
Warning: local regulations can foresee heavy fines in case of unlawful disposal of this product. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 9 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 10: Cleaning And Maintenance
Kg male – 15 Kg female), handling and installing operations should be performed by two, three or four people at least. For heavier loads we recommend the use of specific lifting equipment. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 10 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 11: Installation Instructions
Kg 41 CEILING AND WALL INSTALLATION: Install the screen like the image below. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 11 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen. -
Page 12: Electrical Connection
Operating T°: from –20 to +55 °C Weighted sound pressure level: LpA ≤ 70 dB(A) Motor protection class: IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 12 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 13 Operators are reminded that in cases where seals have been tampered with and where any damages have resulted from incorrect adjustment, repair interventions shall not be covered by guarantee. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 13 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 14 10 END STOP SOMFY MOTOR ADJUSTMENT NICE A – Left Motor B – Right Motor (standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 14 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 15 The purchase invoice/receipt shall clearly indicate the following: Model – Serial number – Purchase date – Name and address of the purchaser and authorized dealer. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 15 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 16: Normes Générales De Sécurité
équivalent. Attention: les réglementations locales peuvent prévoir des sanctions en cas d’élimination abusive de ce produit Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 16 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 17: Caractéristiques Générales Du Produit
Manutentionner et installer le produit avec l’aide d’au moins deux, trois ou quatre personnes en fonction du poids du produit (valeurs de référence de charge par personne : 25kg hommes - 15kg femmes). En cas de poids supérieurs, il est conseillé d’utiliser des équipements de soulèvement spécifiques. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 17 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 18: Istructions Pour L'installation
INSTALLATION AU MUR ET AU PLAFOND: Installer l’ écran comme les images en dessous de. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 18 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 19: Raccordement Électrique
Niveau de pression sonore pondérée : LpA ≤ 70 dB(A) Classe de protection du moteur : IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 19 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 20: Modifier Des Fins De Course (Procédure Déjà Effectuée En Usine)
Nous rappelons aux opérateurs qu’en cas de modification des protections et d’endommagement dû à un réglage incorrect, les interventions de réparation seront considérées hors garantie. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 20 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 21: Réglage Des Fins De Course Nice
10 RÉGLAGE DES FINS DE COURSE NICE A – Moteur à gauche B – Moteur à droit (standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 21 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 22 Le reçu ou la facture doivent contenir de façon claire les données suivantes : modèle - numéro de série - date d’achat - nom et adresse de l'acheteur et du revendeur autorisé Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 22 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 23: Allgemeine Sicherheitsvorschriften
Ihrem Land geltenden Vorschriften oder geben Sie das Produkt beim Neukauf eines gleichwertigen Artikels an den Händler zurück. ACHTUNG: die örtlichen Gesetze können schwere Strafen bei missbräuchlicher Entsorgung dieses Produkts vorsehen Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 23 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 24: Reinigung Und Wartung
Schutzhandschuhe tragen. Das Produkt muss je nach Gewicht von mindestens zwei, drei oder vier Personen befördert werden (Richtwerte für die Last pro Person: 25 kg Männer - 15 kg Frauen). Bei höheren Gewichten wird empfohlen, spezifisches Hebezeug verwenden Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 24 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 25 WANDBEFESTIGUNG UND DECKENMOTAGE: Installieren Sie den Bildschirm als die Abbildungen unten. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 25 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen.
-
Page 26: Elektrischer Anschluss
Betriebstemperatur: von –20 bis +55 °C Bewerteter Schalldruckpegel: LpA ≤ 70 dB(A) Schutzart des Motors: IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 26 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 27 Wir möchten Sie nochmals daran erinnern, dass Reparaturen bei Zerstörung der Versiegelung und Schäden, die durch falsche Einstellungen verursacht werden, nicht als Garantiefall behandelt werden Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 27 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 28 10 EINSTELLUNG DER ENDSCHALTE NICE A – Motor Links verbaut B – Motor Rechts verbaut (standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 28 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 29 Dem zurückgeschickten Produkt muss eine detaillierte Beschreibung des Fehlers und eine Fotokopie der Originalrechnung / des Kaufbelegs beiliegen. Folgende Daten müssen im Kaufbeleg / in der Rechnung klar und deutlich angegeben sein: Modell - Seriennummer - Kaufdatum - Name und Anschrift des Käufers und des Vertragshändlers Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 29 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 30: Normas Generales De Seguridad
Atención: las normas locales pueden prever sanciones pesadas en caso de eliminación abusiva de este producto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 30 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 31: Limpieza Mantenimiento
Desplazar e instalar el producto mínimo entre dos, tres o cuatro personas, según el peso del producto (valores de referencia de carga por persona: 25kg macho - 15kg hembra). En caso de pesos superiores se recomienda utilizar equipos de elevación específicos. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 31 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 32: Instrucciones Para La Instalación
Kg 41 INSTALACIÓN DE PARED Y TECHO: Instalar la pantalla como los cuadros abajo. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 32 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen. -
Page 33: Conexión Eléctrica
Nivel de presión sonora ponderado: LpA ≤ 70 dB(A) Clase de protección del motor: IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 33 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... - Page 34 Se recuerda a los operadores que en caso de alteración de los precintos y daños derivados de una regulación incorrecta, las reparaciones no estarán cubiertas por la garantía. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 34 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 35 A – Motor instalada a la Izquierda B – Motor instalada a la Derecha (standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 35 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 36 El recibo/factura tiene que incluir de forma clara los siguientes datos: Modelo - Número de serie - Fecha de compra - Nombre y dirección del comprador y distribuidor autorizado Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 36 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
-
Page 37: Ogólne Normy Bezpieczeństwa
Uwaga: miejscowe regulacje prawne mogą przewidywać poważne sankcje w wypadku usuwania produktu w sposób zakazany prawem. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 37 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 38: Czyszczenie I Konserwacja
(wartości odnośnie dopuszczalnego ciężaru na osobę to: 25kg mężczyzna - 15kg kobieta). W przypadku większych ciężarów zaleca się stosowanie odpowiednich urządzeń do podnoszenia ładunków. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 38 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020... -
Page 39: Instrukcja Instalacji
Kg 41 INSTALACJA NA ŚCIANIE I DO SUFITU: Ałożyć ekran jak na zdjęciach poniżej. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 39 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen. - Page 40 Temperatura pracy: od –20 do +55 °C Poziom natężenia dźwięku: LpA ≤ 70 dB (A) Klasa ochrony silnika: IP44 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 40 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 41 GWARANCJAPrzypomina się operatorom, że w przypadku naruszenia plomb zabezpieczających i uszkodzeń spowodowanych błędną regulacją, wszelkie naprawy wykonywane będą poza gwarancją. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 41 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 42 10 REGULACJA OGRANICZNIKÓW KRAŃCOWYCH EKRANÓW NICE A – Silnik po lewej stronie B – Silnik po prawej stronie(standard) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 42 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 43 Paragon / faktura musi zawierać wyraźnie wskazane następujące dane: Model - Numer seryjny – Data zakupu – Nazwisko i adres nabywcy oraz autoryzowanego sprzedawcy. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 43 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020...
- Page 44 To get quotations: info@adeogroup.it To contact Technical Support: info@adeogroup.it Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 44 Doc: RUGBY-PRO Installation Manual rev1 | 07.09.2020 Please verify that you are working with the latest revision of this document before specifying your screen.
