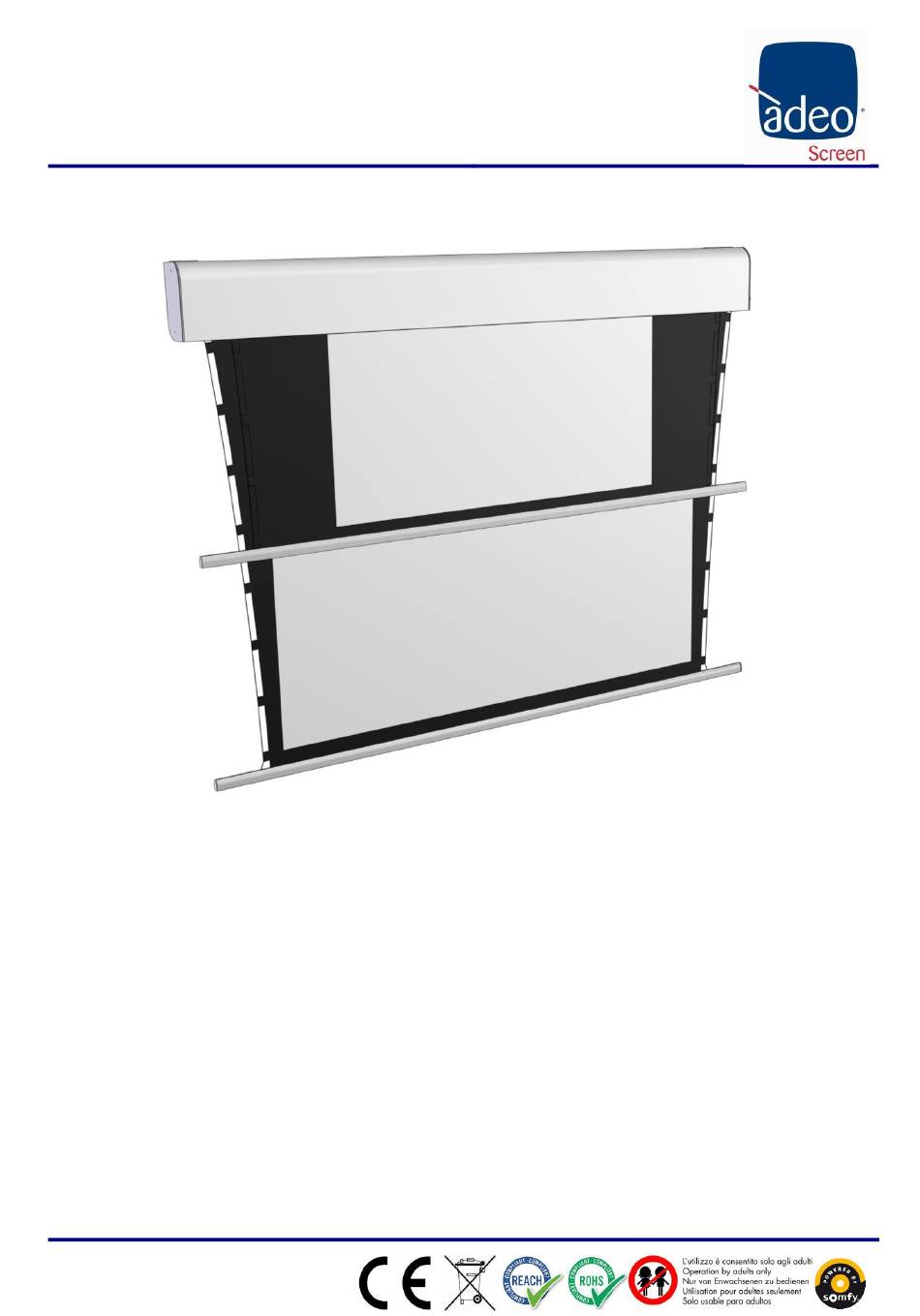

BIFORMAT Installation Manual
Model BIFORMAT
Code PDUABIFORMAT-XXXXX
Manuale d'installazione e d'uso schermo avvolgibile
Rolling screen installation and operation manual
Manuel d'installation et d'utilisation de l'écran de projection
Bedienungs- und Installationsanleitung: Motorleinwand
Manual de instalación y uso de la pantalla enrollable
Instrukcja montażu i obsługi ekranu rozwijanego
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: BIFORMAT Installation Manual rev3 | 04.01.2021
Publicité
Table des Matières
Manuels Connexes pour ADEO SCREEN BIFORMAT
Sommaire des Matières pour ADEO SCREEN BIFORMAT
- Page 1 Manuel d’installation et d’utilisation de l’écran de projection Bedienungs- und Installationsanleitung: Motorleinwand Manual de instalación y uso de la pantalla enrollable Instrukcja montażu i obsługi ekranu rozwijanego Made by Adeo Screen Sp. Z o.o. (Poland) Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 2: Norme Generali Di Sicurezza
Attenzione: i regolamenti locali possono prevedere pesanti sanzioni in caso di smaltimento abusivo di questo prodotto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 2 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 3: Pulizia / Manutenzione
(valori di riferimento per carico propersona: 25kg maschio - 15kg femmina). In caso di pesi superiori si raccomanda di utilizzare attrezzatura di sollevamente specifica. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 3 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 4: Instrukcja Instalacji
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 4 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen. -
Page 5: Regolazione Fine Corsa
Si ricorda agli operatori che in caso di manomissione dei sigilli e danneggiamento derivante da una regolazione errata, gli interventi per riparazione verranno considerati fuori garanzia. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 5 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... - Page 6 La ricevuta/fattura deve contenere in modo chiaro i seguenti dati: Modello - Numero di serie - Data di acquisto - Nome e l'indirizzo dell'acquirente e rivenditore autorizzato Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 6 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 7: General Safety Norms
Warning: local regulations can foresee heavy fines in case of unlawful disposal of this product. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 7 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 8: Cleaning And Maintenance
25 Kg male – 15 Kg female), handling and installing operations should be performed by two, three or people people at least. For heavier loads we recommend the use of specific lifting equipment. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 8 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 9: Installation Instructions
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 9 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen. - Page 10 Blue (Neutral 230V) Yellow Green (Ground 230V) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 10 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 11 PROGRAMMING END STOPS MOTOR NICE 120V 60Hz (procedures already carried out in factory, SHOULD NOT be performed by unauthorised personnel) FRONT SIDE SURFACE REAR SIDE SURFACE Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 11 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
- Page 12 The purchase invoice/receipt shall clearly indicate the following: Model – Serial number – Purchase date – Name and address of the purchaser and authorized dealer. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 12 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 13: Normes Générales De Sécurité
équivalent. Attention: les réglementations locales peuvent prévoir des sanctions en cas d’élimination abusive de ce produit Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 13 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 14: Caractéristiques Générales Du Produit
- 15kg femmes). En cas de poids supérieurs, il est conseillé d’utiliser des équipements de soulèvement spécifiques Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 14 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 15: Istructions Pour L'installation
d’utiliser l’écran. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 15 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen. - Page 16 Bleu (Neutre 230V) Jaune Vert (Terre 230V) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 16 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
-
Page 17: Garantie
PROGRAMMATION DE FINS DE COURSE DE MOTOR NICE 120V 60Hz (procédure déjà effectuée en usine, ne doit pas être effectuée par un personnel non autorisé) AVANT TOILE ARRIÈRE TOILE Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 17 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... - Page 18 Le reçu ou la facture doivent contenir de façon claire les données suivantes : modèle - numéro de série - date d’achat - nom et adresse de l'acheteur et du revendeur autorisé Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 18 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 19: Allgemeine Sicherheitsvorschriften
Ihrem Land geltenden Vorschriften oder geben Sie das Produkt beim Neukauf eines gleichwertigen Artikels an den Händler zurück. ACHTUNG: die örtlichen Gesetze können schwere Strafen bei missbräuchlicher Entsorgung dieses Produkts vorsehen Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 19 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 20: Reinigung Und Wartung
Personen befördert werden (Richtwerte für die Last pro Person: 25 kg Männer - 15 kg Frauen). Bei höheren Gewichten wird empfohlen, spezifisches Hebezeug verwenden Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 20 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... - Page 21 Projektionswand verwenden. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 21 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 22 Blau (Neutral 230V) Gelb grun (Erde 230V) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 22 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 23 VORNE PROJEKTIONSSTOFFE HINTEN PROJEKTIONSSTOFFE Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 23 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 24 Dem zurückgeschickten Produkt muss eine detaillierte Beschreibung des Fehlers und eine Fotokopie der Originalrechnung / des Kaufbelegs beiliegen. Folgende Daten müssen im Kaufbeleg / in der Rechnung klar und deutlich angegeben sein: Modell - Seriennummer - Kaufdatum - Name und Anschrift des Käufers und des Vertragshändlers Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 24 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 25: Normas Generales De Seguridad
Atención: las normas locales pueden prever sanciones pesadas en caso de eliminación abusiva de este producto. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 25 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 26: Limpieza Mantenimiento
- 15kg hembra). En caso de pesos superiores se recomienda utilizar equipos de elevación específicos. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 26 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 27: Instrucciones Para La Instalación
antes de usar la pantalla. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 27 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen. - Page 28 Azul (neutro) Amarillo-Verde (Tierra) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 28 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 29 El recibo/factura tiene que incluir de forma clara los siguientes datos: Modelo - Número de serie - Fecha de compra - Nombre y dirección del comprador y distribuidor autorizado Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 29 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
-
Page 30: Ogólne Normy Bezpieczeństwa
Uwaga: miejscowe regulacje prawne mogą przewidywać poważne sankcje w wypadku usuwania produktu w sposób zakazany prawem. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 30 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... -
Page 31: Czyszczenie I Konserwacja
25kg mężczyzna - 15kg kobieta). W przypadku większych ciężarów zaleca się stosowanie odpowiednich urządzeń do podnoszenia ładunków. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 31 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021... - Page 32 Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 32 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 33 Niebieski (Neutralny 230V) Żółto-zielony (Uziemienie 230V) Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 33 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
- Page 34 (procedura, która została wykonana w fabryce, NIE może być wykonywana przez nieupoważnione osoby) PRZEDNI POWIERZCHNIA BOCZNA TYLNY POWIERZCHNIA BOCZNA Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 34 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
- Page 35 Paragon / faktura musi zawierać wyraźnie wskazane następujące dane: Model - Numer seryjny – Data zakupu – Nazwisko i adres nabywcy oraz autoryzowanego sprzedawcy. Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 35 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021...
- Page 36 To get quotations: info@adeogroup.it To contact Technical Support: info@adeogroup.it Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE Page 36 Doc: BIFORMAT Installation Manual rev3 | 04.01.2021 Please verify that you are working with the latest revision of this document before specifying your screen.
