SIMUDRIVE SD100Hz

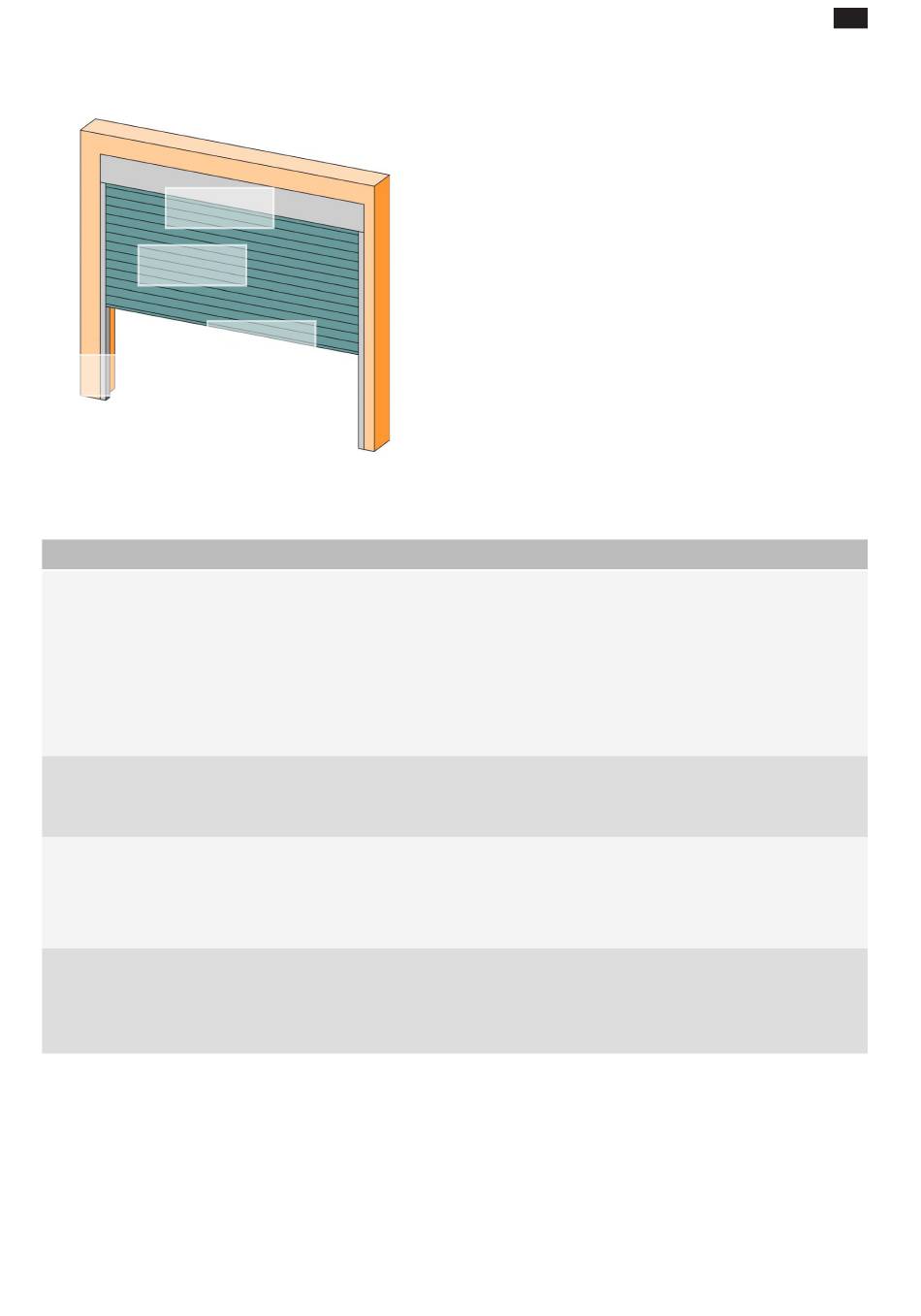

1.4.1 Risk prevention - roller garage door motorisation for residential use
Zone 2
Zone 3
Zone 4
Risk zones: what elimination measures can be taken?
RISKS
ZONE 1
Risk of crushing between the ground and
the lower edge of the door during closing
ZONE 2
Risk of crushing between the casing and
door
ZONE 3
Risk of cutting or trapping between the
door slats in gaps of between 8 mm and
25 mm
ZONE 4
Risk of crushing between the runners
and door
Zone 1
SOLUTION
Obstacle detection by the safety edge
solution.
Obstacle detection must be confirmed as
compliant with Appendix A of standard
EN 12 453
For operation with automatic closing, in-
stall photoelectric cells.
Eliminate any gap ≥ 8 mm or ≤ 25 mm
between the casing and door.
Eliminate all sticking points and all sharp
edges from the surface of the door
Eliminate any gap ≥ 8 mm or ≤ 25 mm
Eliminate any sharp edges from the run-
ners
Eliminate any gap ≥ 8 mm between the
runners and the door
